Polaris 280 TankTrax Conversion Kit Installation

Kit Contains:
• Top Housing
• Bottom Housing
• TankTrax Tire
®
• Axle Block (2)
• Idler Wheel with Ball Bearings
• Wheel Washer, Idler Wheel
• Wheel Screw, Idler Wheel
• Swing Axle Tee
• Swing Axle
• Swing Axle Tee Screw
• Tap Screw

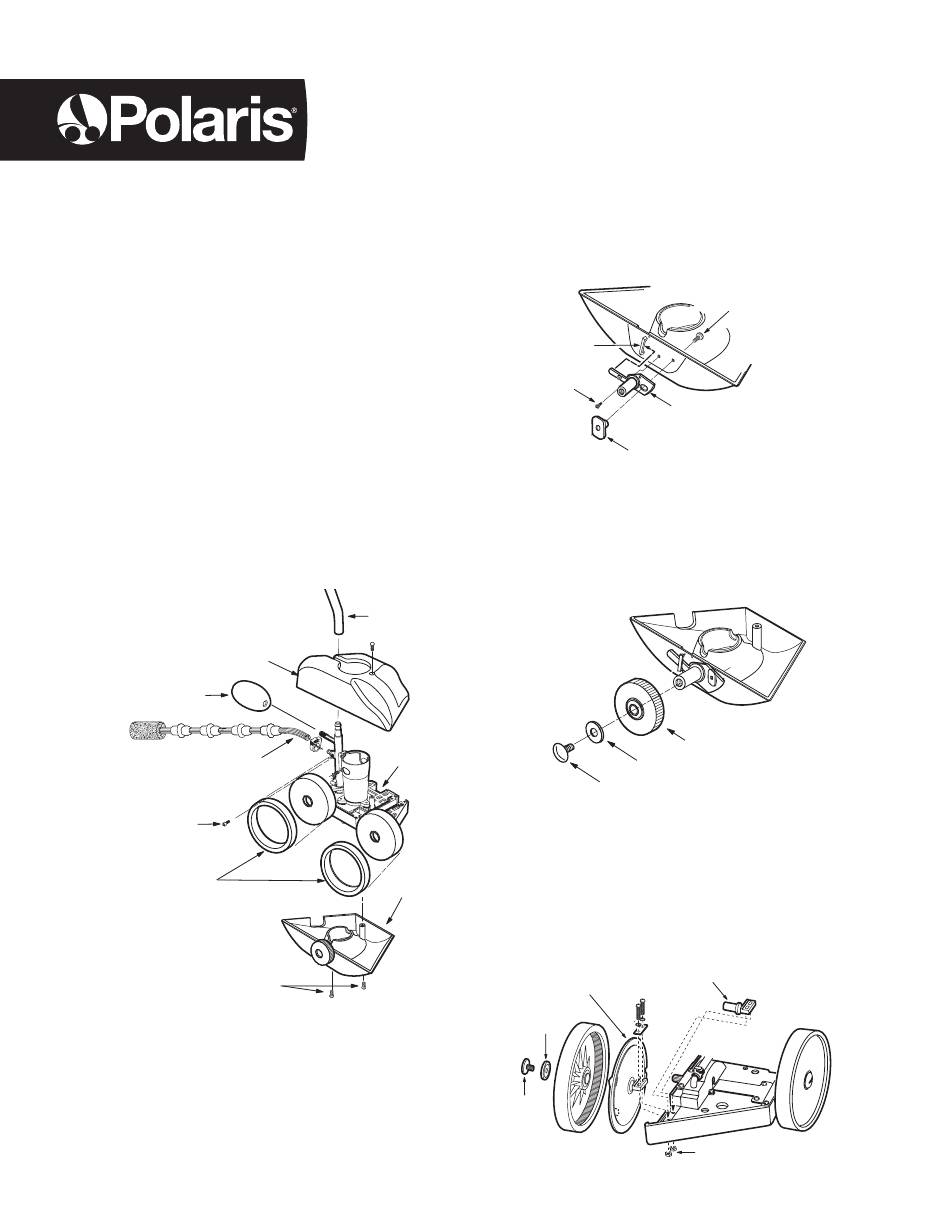

1. Remove the feed hose, head float, sweep
hose, adjustment screw, double-wheel side
tires, and the top and bottom housing. Store or
discard the tires and the housings.
Top Housing
Head Float
Sweep Hose
Adjustment
Screw
Tires
Screws
Polaris 280 TankTrax
Conversion Kit Installation
2. Push the axle tee screw through the large hole
in the new bottom housing. Mount the swing
axle using swing axle tee. Install tap screw to
secure swing axle.
Retaining
Bracket
Tap Screw
3. Secure the idler wheel to the swing axle using
the wheel washer and plastic wheel screw.
Do not over tighten. The wheel should
spin freely.
Feed Hose
Frame
4. Loosen and remove both the front and back
double-wheel side wheel screws, wheel
washers and wheels. Remove and store or
Bottom
discard both double-wheel side axles. Install
Housing
the new axle blocks leaving the back wheel
axle screws loose for further adjustment.
Old Axle with
Sand/Gravel
Guard
Wheel
Washer
Wheel
Screw
Swing Axle
Tee Screw
Bottom
Housing
Swing Axle
Swing Axle Tee
Bottom
Housing
Idler Wheel
Wheel Washer
Wheel Screw
New
Axle Block
Nuts (Polaris 180 Only)
