curt 11172 Manual

11172
1/18/2011
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH:
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
WARNING: ALL NON-TRAILER LOADS APPLIED TO THIS PRODUCT MUST BE SUPPORTED BY AUXILIARY STABILIZING STRAPS.
** FAILURE TO PROPERLY SUPPORT NON-TRAILER LOADS WILL VOID PRODUCT WARRANTY**
HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT
5
SPARE
TIRE WELL
DRILL HOLES
ABOVE TRUNK RIB
19
HITCH WEIGHT: LBS.
INSTALL TIME
PROFESSIONAL: 45 MINUTES
NOVICE (DIY): 90 MINUTES
INSTALL NOTES:
-DRILLING REQUIRED
-TRIM FASCIA
-TEMPORARILY REMOVE SPARE TIRE
INSTALLATION STEPS

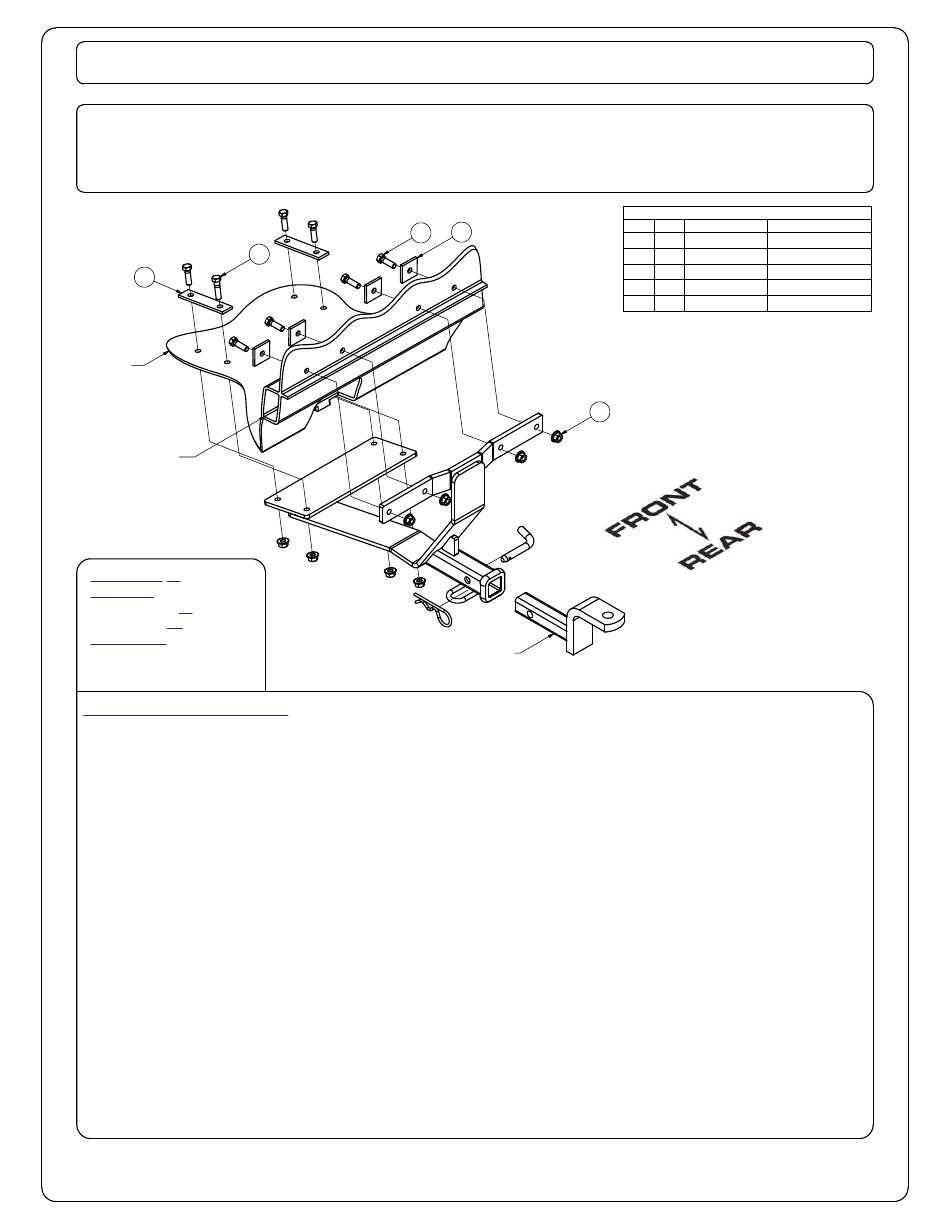

1. This hitch mounts to the trunk and tire well structure. Temporarily remove the spare tire from inside the
tire well, and plastic trim panel at the inside rear of the trunk area. This panel is removed by removing
(2) 6mm nuts, one on each side, and carefully pulling out the plastic clips.
2. Temporarily remove the rear bumper by unbolting (6) retaining nuts, (3) per side around the bumper
mounting struts. Remove the fasteners attaching the bumper fascia to the tire well on both sides. Slide
the bumper assembly rearward to remove it.
3. Temporarily unclip the wires from the retainers running along the lip inside the trunk area to be drilled. Position
the hitch resting on the rear body ledge, centered to the left and right.
4. Using the hitch as a template, drill holes for fasteners in the upper part of the trunk. Install fasteners as
shown. Be sure to install the backing plates inside the trunk as shown.
5. Using the hitch as a template, drill holes in lower part of trunk through trunk ribs. Install the backing plates
inside the tire well as shown.
6. Torque all 3/8" fasteners to 30 lb-ft.
7. Trim bumper fascia to allow clearance for receiver hitch. Once cut reinstall bumper fascia back on to
vehicle.
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
Curt Manufacturing Inc., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
247305
96-98 BMW 5 SERIES SEDAN
2
1
DESIGNED FOR USE WITH
BALLMOUNT #55001 / 45501
2,000 LBS. TRAILER WEIGHT &
1-800-798-0813
ITEM
4
1
2
3
4
5
3
200 LBS. TONGUE WEIGHT.
Parts List
QTY PART NUMBER DESCRIPTION
1 3/8-16 X 1 1/2 HEX BOLT
7 3/8 - 16 x 1 1/4 HEX BOLT
8 HFN3816 HEX FLANGE NUT
4 CM-SP123 .188 x 1.50 SPACER
2 CM-SP109 .188 x 1.00 SPACER
