curt 11493 Manual

11493 / 247493
3/11/2009
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH:
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
ITEM QTY PART NUMBER
1 1 1/2"
2 4 HFN 1213
3 4 1/2-13 x 1 1/2
4 4 CM-SP6
HITCH WEIGHT: 13 LBS.
INSTALL TIME: 90 MINUTES
INSTALL NOTES:
- REMOVE TAIL LIGHTS
- REMOVE BUMPER FASCIA
- REMOVE BUMPER BEAM
- DRILLING REQUIRED
INSTALLATION STEPS
1) Remove the (3) 10mm screws holding the tail light lens (located under the (3) plastic covers inside trunk). Carefully
remove lights including 2 tabs and disconnect from the wiring harness.
2) Remove the 10mm screw located under the lens that holds the bumper onto the vehicle and remove the white plastic
clip that holds the bumper to the body (either press the tabs together or turn the clip 90 degrees to remove).
3) Remove the (3) screws that hold the mud flaps in place (if equipped) to gain access to the 10mm screw located on
the bottom the bumper.
4) Remove the Two black fasteners the hold the bumper tabs to the underside of the bumper and gently pull the bumper
fascia straight back.
5) Disconnect the 3 electrical plugs (2 for reverse lights and 1 license plate light)
6) Center the hitch on the bumper beam, using the hitch as a template and mark the two bottom holes
7) Remove the aluminum bumper reinforcement by removing the (8) 12mm screws there are 4 located on each side.
8) Drill the two holes that you marked earlier first with a pilot bit and enlarge to a 1/2 hole.
9) Fishwire the 1/2 carriage bolts and spacers into the drilled hole through the end of the bumper.
10) Secure the hitch with hex flange nuts loosely, drill the remaining holes, Fishwire the remaining fasteners into place
and install remaining nuts.
11) Torque all 1/2" fasteners to 75 lb-ft.
12) Replace the aluminum bumper support, taillights, and bumper fascia. Trim bumper fascia approximately 1 3/4 x 2
for proper fit.
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
Curt Manufacturing Inc., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
2006 NISSAN 350Z

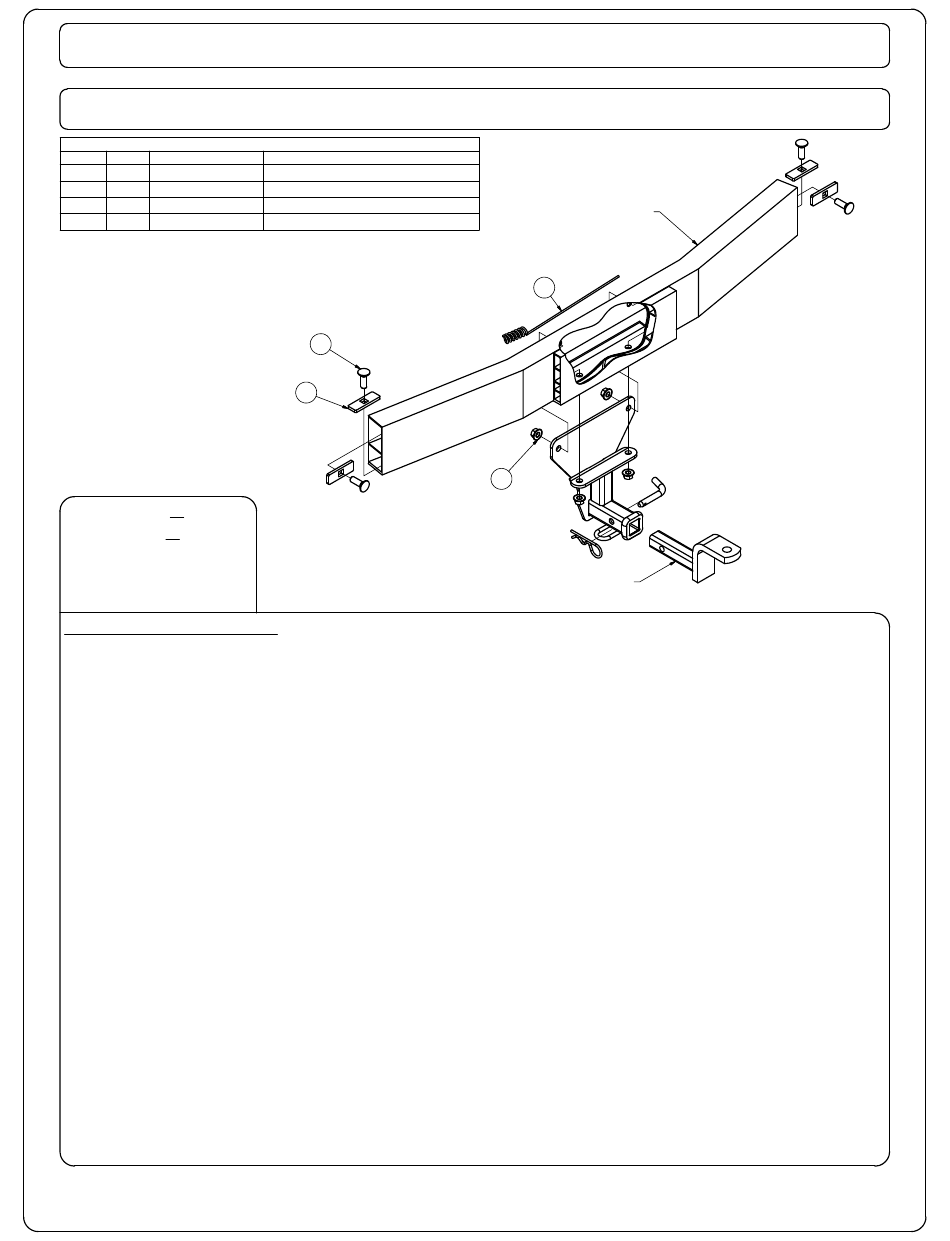

Parts List
DESCRIPTION
FISHWIRE TOOL
HEX FLANGE NUT
CARRIAGE BOLT
.250 x 1.00 x 3.00" SQUARE HOLE SPACER
3
4
1,500
LBS. TRAILER WEIGHT &
ALUMINUM BUMPER BEAM
1
2
DESIGNED FOR USE WITH
BALLMOUNT #55001 / 45501
150
LBS. TONGUE WEIGHT.
