curt 11146 Manual

11146
10/12/2009
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH:
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
WARNING: ALL NON-TRAILER LOADS APPLIED TO THIS PRODUCT MUST BE SUPPORTED BY AUXILIARY STABILIZING STRAPS.
** FAILURE TO PROPERLY SUPPORT NON-TRAILER LOADS WILL VOID PRODUCT WARRANTY**
HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT
Parts List
ITEM QTY PART NUMBER
1 3 3/8 - 16 x 1 1/4
2 5 3/8"
3 5 3/8"
4 5 3/8 - 16
5 2 3/8-16 X 1 1/2
6 1 CM-11146-BP
5
2
HITCH WEIGHT: 12 LBS.
INSTALL TIME
45
PROFESSIONAL: MINUTES
90
NOVICE (DIY): MINUTES
INSTALL NOTES:
-DRILLING REQUIRED
-TEMPORARILY REMOVE SPARE TIRE
INSTALLATION STEPS
1. Temporarily remove the spare tire.

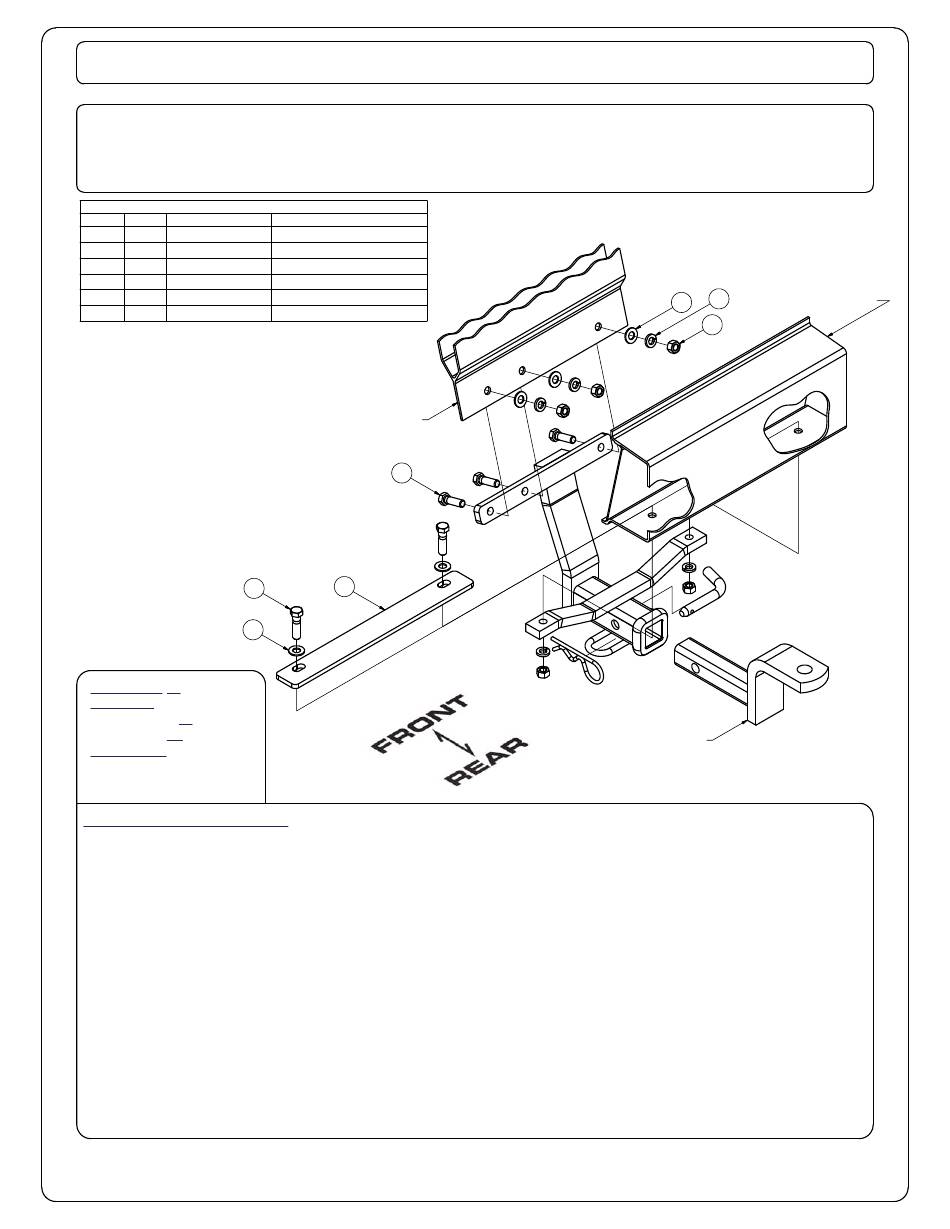

2. Hold the hitch in position on the vehicle, centered across the bumper. The hitch brackets mount to the
underside of the steel inner bumper and the forward side of the body lip as shown. The hitch will self center
as it fits between the bumper fascia bosses. The hitch must fit directly against the steel surfaces; no plastic
should be sandwiched between.
3. Mark and drill the bumper and body lip for fasteners as shown.
4. Fasten the hitch to the rear bumper using fasteners provided with the hitch. The bumper reinforcement plate
MUST be used inside the bumper; opposite the hitch bracket. Washers should be used at reinforcement
and body lip as shown.
5. Torque all 3/8" fasteners to 30 lb-ft.
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
Curt Manufacturing Inc., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
247225
91-97 TOYOTA PREVIA VAN
DESCRIPTION
HEX BOLT
WASHER
LOCK WASHER
HEX NUT
HEX BOLT
.25 x 1.50 BACKING PLATE
BODY LIP
1
6
2,000 LBS. TRAILER WEIGHT &
1-800-798-0813
2
DESIGNED FOR USE WITH
BALLMOUNT #55001 / 45501
200 LBS. TONGUE WEIGHT.
3
BUMPER BEAM
4
