Delta HDRS1000 Assembly Instructions

Heavy Duty
Wall Storage Rack

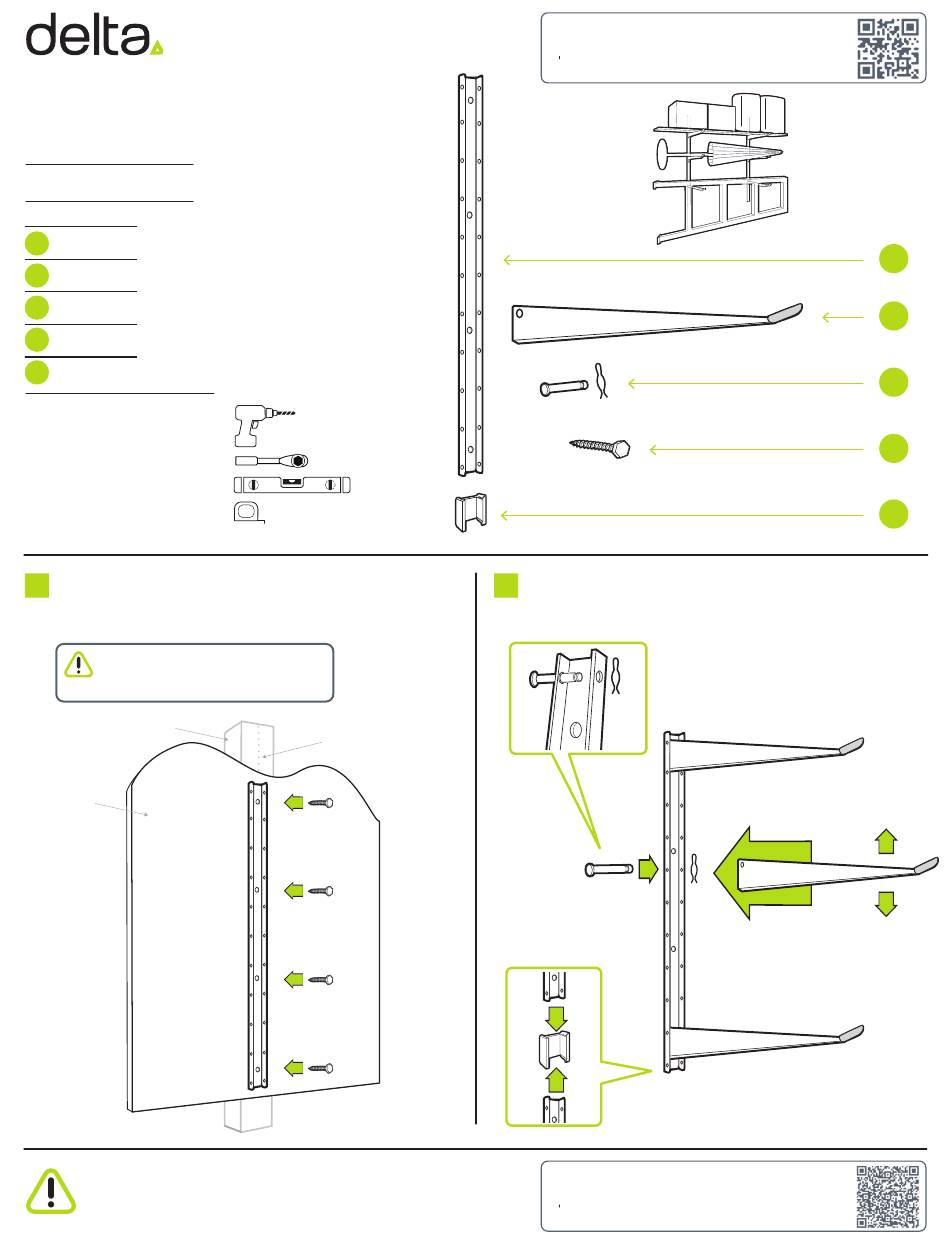

Assembly instructions
Parts
A
x2 — Uprights
B
x6 — Arms
C
x6 — Pin + Spring Clip
D
x8 — Hex Bolt
x2 — Connecting Spacer
E
(for optional additional unit extension)
Tools Required
Hand Drill 5/32" (4mm)
Socket Wrench 1/2" (13mm)
Spirit Level
Tape Measure
Way of locating studs within the wall (see hardware store for advice)
Place uprights against located stud on wall and mark
1
location for holes. Ensure uprights are horizontally aligned.
Drill pilot holes. Then secure uprights to wall using
bolts provided.
IMPORTANT SAFETY NOTE
Beware of drilling into electrical wire
or pipes within wall!
STUD
WALLBOARD
WARNING
Do not allow children to play or hang from Rack
Maximum weight on properly installed rack 480 lbs (218 kg)
total 160 lbs (72.5 kg) per tier
HDRS1000
STUD
CENTERLINE
Assembly video
Visit designbydelta.com/downloads
Position arms as desired. (Arms can be positioned
2
in 2" height intervals for maximum storage capacity).
Secure with pin and spring clip.
EXPANDABLE OPTION: Two connecting spacers (Part E)
are included to connect to another set of racks for extra
height and storage.
Service:
Please do not return to store;
for immediate response email
service@designbydelta.com
CEME NT
CEME NT CEME NT
CEME NT
A
B
C
D
E
