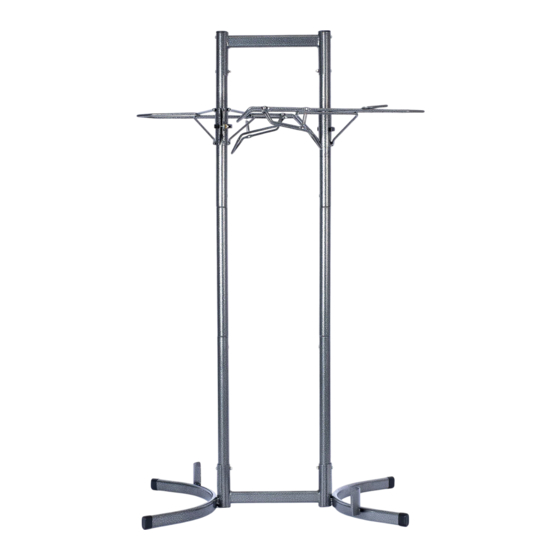

Two Bike Rugged
Upright Stand
Assembly instructions
Parts
A
x1 — Top Connector
B
x2 — Top Pole
C
x2 — Center Pole
D
x2 — Bottom Pole
E
x2 — Base Stand (Left + Right)
F
x1 — Base Bracket
G
x6 — Long Bolts
H
x2 — Wheel Trays
I
x4 — Short Bolts
J
x2 — Extra Long Bolts
K
K
x4 — Nuts (10mm)
L
x4 — Washers
M
x4 — O Ring
Tool(s) Required
Phillips Head
Screwdriver
Adjustable Wrench
(or 10mm)
WARNING
DO NOT EXCEED MAXIMUM TOTAL WEIGHT LIMIT OF 150 LBS (68 Kgs)
MAX LOAD PER WHEEL TRAY: 75 LBS (34 kgs)
LOAD HEAVIER BIKES CAREFULLY.
HDRS6300
Assembly video
Visit designbydelta.com/downloads
B
C
D
D
E
E
F M
A
I
K
G G
L
F
F
G
G
H
H
I J
Advertisement
Related Manuals for Delta HDRS6300
Summary of Contents for Delta HDRS6300
- Page 1 Assembly video Visit designbydelta.com/downloads Two Bike Rugged Upright Stand Assembly instructions HDRS6300 Parts x1 — Top Connector x2 — Top Pole x2 — Center Pole x2 — Bottom Pole x2 — Base Stand (Left + Right) x1 — Base Bracket x6 —...
- Page 2 Connect base bracket (F), bottom poles (D) and base stand (E) Connect center poles (C) to bottom poles (D), and as shown using long bolts (G, J) Nuts (K) and Washers (L). then top poles (B)- secure with short bolts (I). Do not tighten bolts until rack is fully assembled and tubes are properly aligned.
- Page 3 ADJUSTING WHEEL TRAY SIZE AND HEIGHT FOR DIFFERENT BIKES FIGURE 5 As shown in Figure 5, depending on the size of the bike and the wheel, both the height of the tray and the size of the tray will change. The wheel tray length should be adjusted so that the wheel sits as deep into the tray as it can without the tray coming in contact with the frame or fork.
- Page 4 Service: Please do not return to store; for immediate response email service@designbydelta.com Delta Cycle Corporation 36 York Avenue, Randolph, MA 02368 USA 800-474-6615 / www.designbydelta.com © Copyright 2023...
