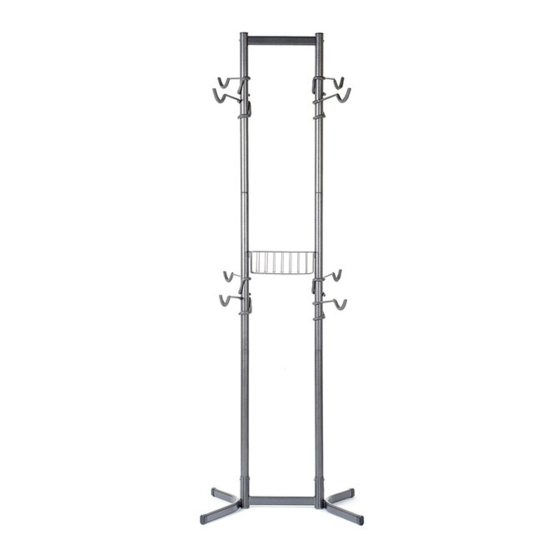

Delta HDRS6801 Assembly Instructions

Free-Standing
4 Bike Rack
with Basket
Assembly instructions

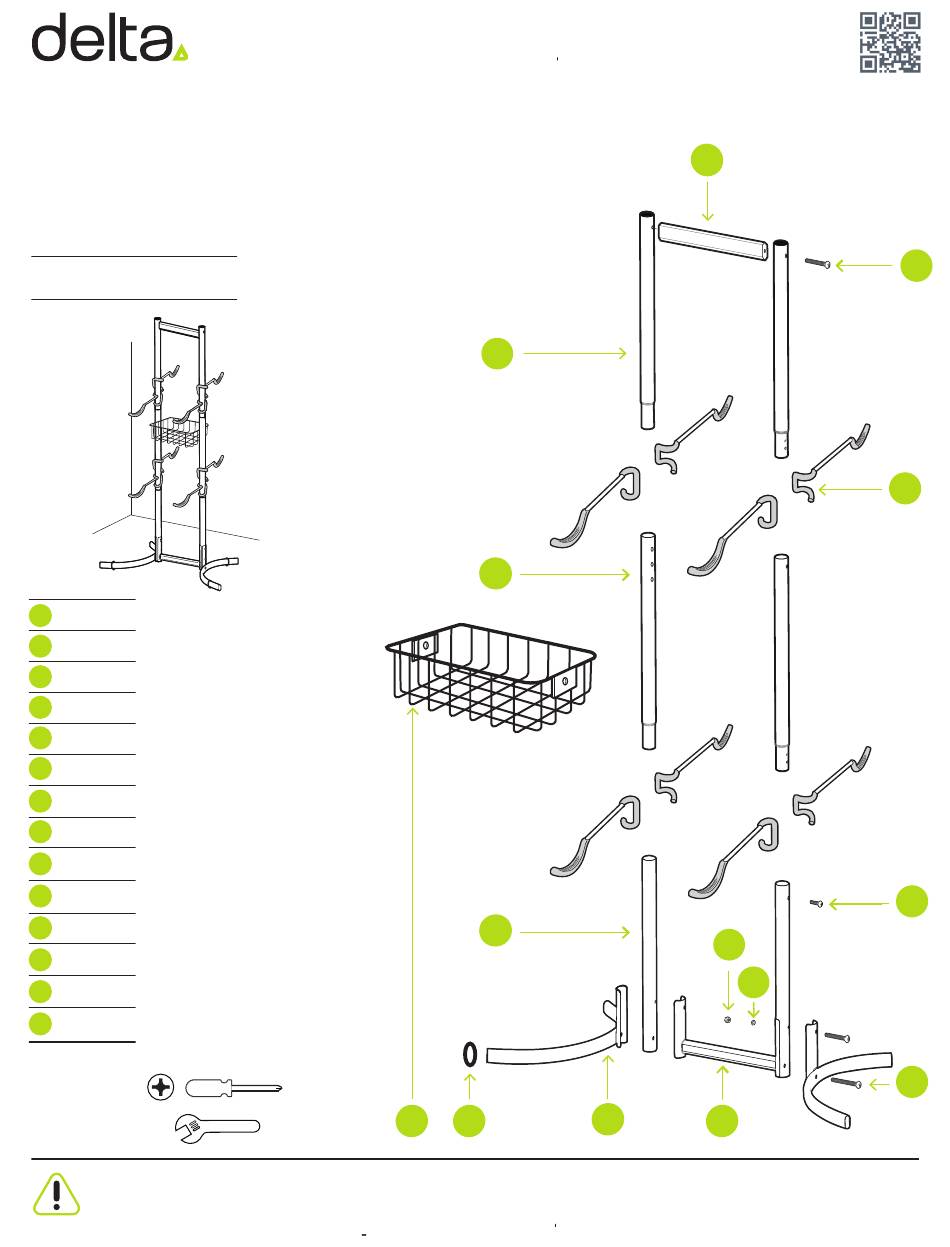

Parts

A
x1 — Top Connector
B
x2 — Top Pole
C
x2 — Center Pole
D
x2 — Bottom Pole
E
x2 — Base Stand (Left + Right)
F
x1 — Base Bracket
G
x4 — Long Bolts
H
x8 — Arms
I
x6 — Short Bolts
J
x2 — Extra Long Bolts
K K
x2 — Nuts (10mm)
L
x2 — Washers
M
x4 — O Ring
N
x1 — Basket

Tool(s) Required

Phillips Head
Screwdriver
Adjustable Wrench
(or 10mm)
WARNING
DO NOT EXCEED MAXIMUM TOTAL WEIGHT LIMIT OF 160 LBS (70 Kgs)
MAX LOAD PER HOOK: 35 LBS (15.9 kgs) / MAX WEIGHT PER BIKE: 40LBS (18.2 kgs)
LOAD HEAVIER BIKES, INCLUDING E BIKES, ON LOWER TIER.
HDRS6801
F N F M
Assembly Video
Visit designbydelta.com/downloads
Scan with your smartphone camera to view
B
C C
D D
E E
A
A
K
L
F
F
G
G
H H
I I
I J
