Instructions for doors with 1-1/2'' (38mm) holes

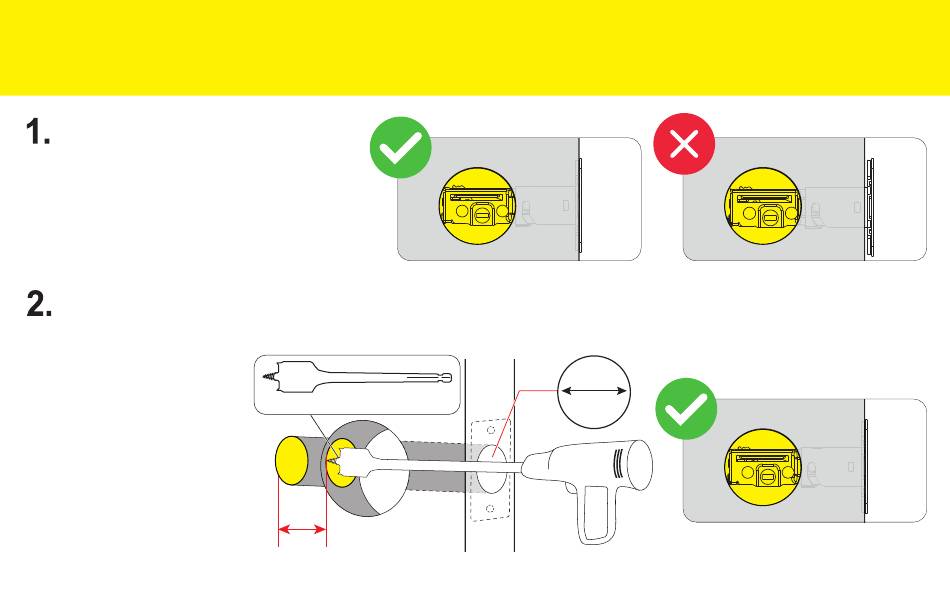

Temporarily insert latch bolt.
If your latch bolt cannot be inserted
all the way to the end, you need to
extend the latch hole. Follow the
instruction in Step 2. If the latch bolt
sits properly, skip to Step 3.
(OPTIONAL): If you do not need
to extend the latch hole, go to
Step 3.
"
For a 1-1/2
(38 mm) bore
"
hole, use a 1
(25.4 mm) Drill
Bit to extend the latch hole at
"
least 13/64
(5 mm) deep.
No need to extend the latch
"
hole for a 2-1/8
(54 mm)
bore hole.
After extending the latch hole,
insert the Latch Bolt again to
ensure it fits correctly.
"
1
Drill Bit for Wood
At Least 13/64"
(5 mm) Deep
"
1
25.4 mm
Advertisement
Related Manuals for veise B0CST3YB6H
Summary of Contents for veise B0CST3YB6H
- Page 1 Instructions for doors with 1-1/2'' (38mm) holes Temporarily insert latch bolt. If your latch bolt cannot be inserted all the way to the end, you need to extend the latch hole. Follow the instruction in Step 2. If the latch bolt sits properly, skip to Step 3.
- Page 2 Test latch bolt operation. Install the Latch Bolt and rotate it with a screwdriver to confirm smooth rotation. Chisel (OPTIONAL): If the latch bolt operation is smooth, skip to next step. If it cannot rotate smoothly because the door hole is too small.
