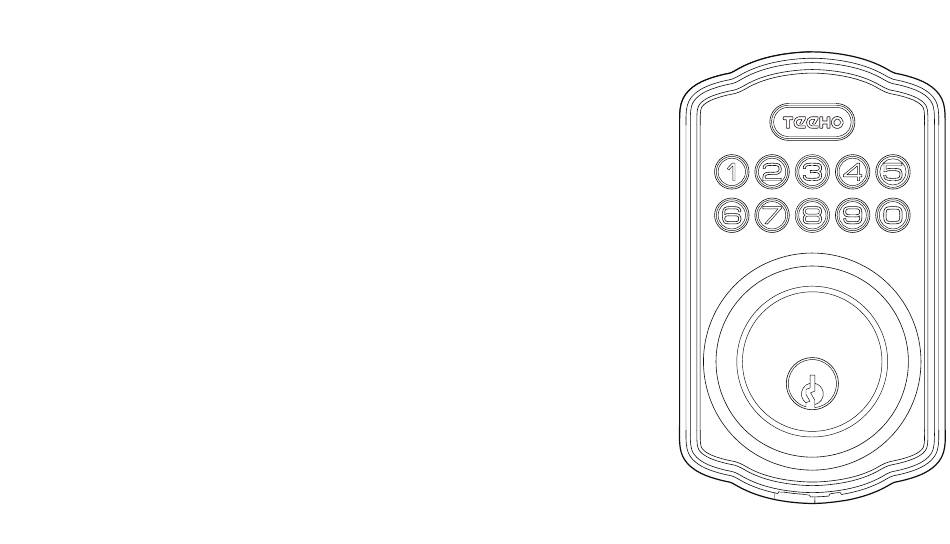

- Page 1 TK001 Keypad Digital Deadbolt Installation Guide / Programming Instructions Thank you for purchasing our products. Please review this manual thoroughly before operating your device. All pictures in this manual are for illustration purpose only. Actual product may vary due to product upgrade.
-
Page 2: Installation Instructions
User Guide Installation Instructions At a Glance Installation Overview P 13 Quick Set Up How to Use STEP 1: Prepare the door and check dimensions Factory Default Settings Definitions STEP 2: Install the latch and strike Troubleshooting Code Format P 10 STEP 3: Install exterior assembly P 11 STEP 4: Install interior assembly... - Page 3 USER GUIDE At a Glance Exterior Assembly Interior Assembly Multi-Function Button(MFB) Battery Cover Keypad Reset Button Keyhole Thumb Turn...
-
Page 4: How To Use
How to Use UNLOCK the door from outside UNLOCK the door from inside Rotate the thumb turn to Unlock position. Master/User code LOCK the door from inside Auto Lock Mode Manual Mode LOCK the door from outside In Auto Lock mode, the Rotate the thumb turn to Lock Position. - Page 5 Definitions • Master Code • Silent Mode Required for programming and feature settings. Master code can be The beep sounds when pressing keypad can be muted. But you will used to unlock the door under vacation mode. The default master still hear low battery and system alerts.
-
Page 6: Code Format
Code Format 12345678 1. Master Code(4 to 10 digits): The default Master Code is . It is required that you change it to a code of your own before programming. 2. User Code: 20 User Codes (4-10 digits), 1 one-time User Code can be programmed and stored in the lock. 3. -
Page 7: Installation Overview
INSTALLATION OVERVIEW Battery Cover (G) Interior Assembly (F) Mounting plate (E) Exterior Assembly Mounting Interior Assembly plate Screws (J) Screws (K) Latch (C) Strike (D) Reinforcement plate (D-1) Backup key (A) Latch Screws Strike Screws... -
Page 8: Parts List
Parts List Exterior Assembly x1 Backup Key x2 Latch x1 Strike x1 Reinforcement Plate x1 (optional) Mounting Plate x1 Interior Assembly x1 Battery Cover x1 Strike Screws x2 Latch Screws x2 Interior Assembly Reset Tool x1 Drive-In Collar (Optional) Mounting plate Screws x2 Screws x3 If any parts are missing or damaged, please contact Customer Support. - Page 9 STEP Prepare the door and check dimensions 2-3/8" or 2-3/4" (60mm or 70mm) Measure to Measure to confirm confirm that the that the backset is hole in the door is either 2-3/8" or 2-1/8" 2-1/8" (54mm). 2-3/4" (60mm or (54mm) 70mm) 1"...
- Page 10 STEP Install the latch and strike Determine backset and adjust the latch No adjustment is required. Proceed to next step. Slotted hole is NOT centered. Hold the latch in front of the door hole, Rotate and pull the with the latch face flush against the latch as shown to door edge.
- Page 11 Use a screwdriver to test if deadbolt works smoothly. IMPORTANT: Install strike on the door frame. Make sure the hole in door frame is drilled a minimum of 1" (25mm) deep. (Optional)
- Page 12 STEP Install exterior assembly IMPORTANT: Unlocked Locked Before installation, make sure the latch is fully retracted (in the unlocked position) Keep parallel to door edge. Torque blade Mounting plate Screws(J) With the latch fully retracted (in the unlocked Secure the mounting plate with the position), route the cable below the latch, and supplied screws.
-
Page 13: Install Interior Assembly
STEP Install interior assembly Insert the cable connector to the Push the battery cover out in socket. Push the the direction as illustrated. connector in firmly until it is completely IMPORTANT: attached. Do not load batteries until lock is completely installed. Keep the thumb turn in vertical position and install Attach Interior the interior assembly. - Page 14 STEP Detect left/right hand door installation This step is required and crucial for the lock IMPORTANT: to operate properly. Reset the lock to teach the lock the orientation of the door. While the door is OPEN and Load the 4th battery and keep holding Press and hold the Reset button on UNLOCKED, load 3 AA batteries the interior assembly by using the...
-
Page 15: Quick Setup
12345678 The default Master Code is IMPORTANT: Quick Set Up It is required that you change it to a code of your own before programming. + Master Code + New Master Code + New Master Code + Change Press Master Code Succeed Wait for long green lights... - Page 16 Auto Lock Enabled + Master Code + Press Green light flash Auto Lock Auto Lock Disabled Wait for long green lights Green light flash Wait for green light flash Enter New Duration Time Press + Master Code + (10~99s) Set Auto Lock Time Succeed Wait for green light flash...
-
Page 17: Factory Default Settings
Factory Default Settings How to Reset? Reset button The resetting will delete all User Codes stored IMPORTANT: in the lock. Step 1. Keep the door open and unlocked. Step 2. Press and hold the Reset button, at the same time take out one battery and then place it back. -
Page 18: Troubleshooting
Troubleshooting Why does not the latch extend but the motor is rotating Why does my lock only work properly when the backup key when resetting my lock? is in? Why am I unable to pull the key out in the unlocked position? Improper installation may have caused the issue. -
Page 19: Information & Safety Warnings
Information & Safety Warnings • Protect your User Codes and Master Code. • Care should be taken to ensure a long-lasting finish. When cleaning is required use a soft, damp cloth. Using lacquer thinner, caustic soaps, • Restrict access to your lock’s interior assembly and routinely check your abrasive cleaners or polishes could damage the coating and result in settings to ensure they have not been altered without your knowledge. - Page 20 Handleset Installation Instructions of Handleset Thank you for purchasing our products. Please review this manual thoroughly before operating your device. All pictures in this manual are for illustration purpose only. Actual product may vary due to product upgrade. Parts list 1.
- Page 21 3. Install latch and strike 2. Latch backset adjustment Backset is the distance from the door edge to the center of the hole in the door. The latch is provided with adjustable design which can fit either 2-3/8’’(60mm) or 2-3/4’’(70mm) backset.
