UNDERSEAT STORAGE BIN FOR HONDA PIONEER 1000
ZP-YJ-030908-001
BEFORE YOU BEGIN
Read these instructions and check to be sure all parts and tools are accounted for. Please retain
these installation instructions for future reference.
IMPORTANT
This UNDERSEAT STORAGE BIN is exclusively designed for your PIONEER. Please read the
installation instructions thoroughly before beginning. Installation is easier if the vehicle is clean and
free of debris.
INSTALLATION INSTRUCTIONS
1. Shift vehicle transmission into "PARK". Turn
key to "OFF" position and remove from vehicle.

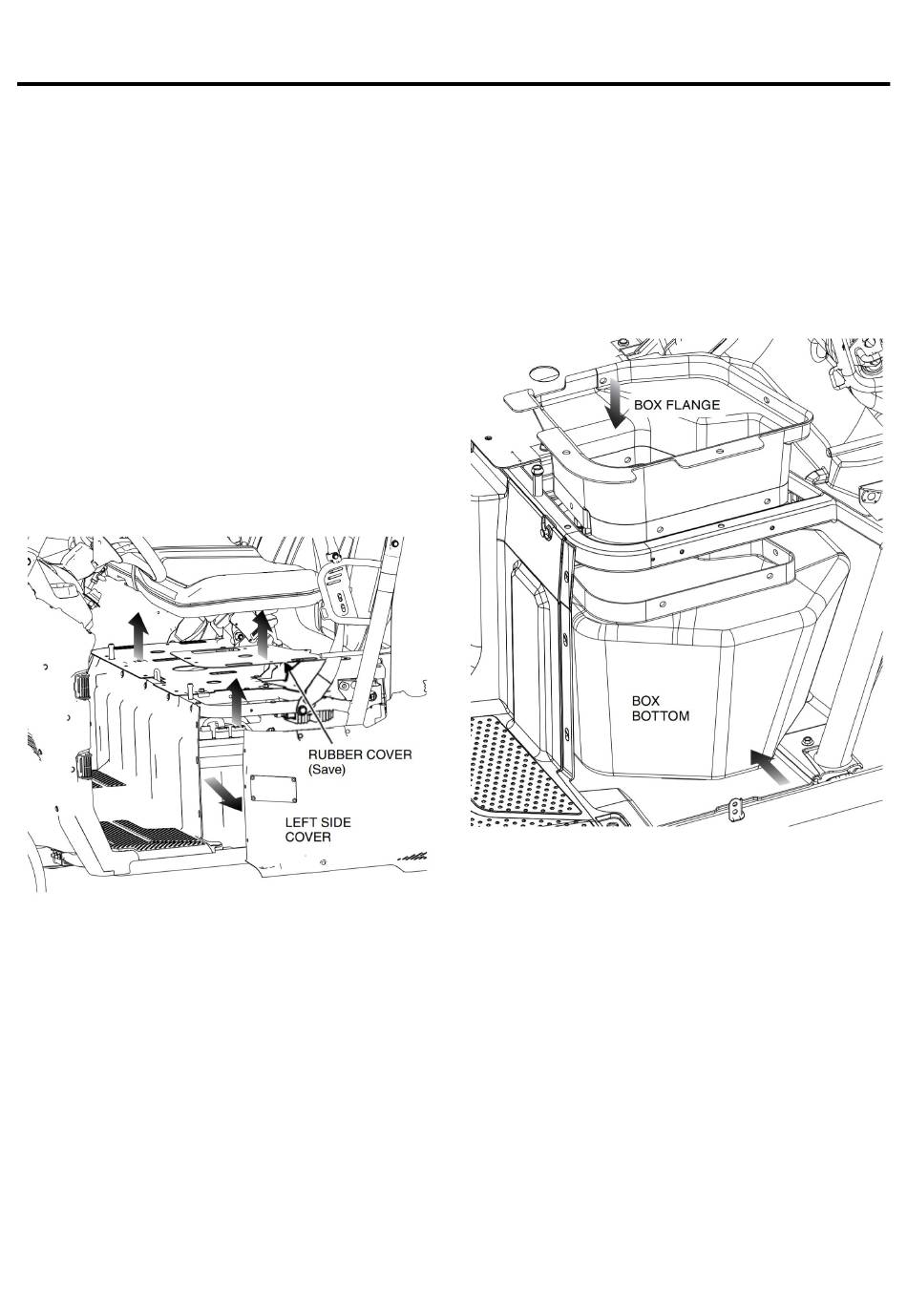

2. Referring to the Service Manual for the
vehicle, remove the seat, the rubber cover, and
the left side cover.
3. Slide the box bottom in from the side
opening and insert the box flange through the
opening under the seat.
4. Align the holes between the box bottom and
the box flange and connect them together with
seven trim clips as shown.
Align the holes between the assembled box
and the under seat frame and connect the box
assembly to the frame with four trim clips as
shown.
