SAUTVS ZP-YJ-030501-013 Manual

LED Headlight for Polaris Ranger 570 Mid-Size
ZP-YJ-030501-013
BEFORE YOU BEGIN
Read these instructions and check to be sure all parts and tools are accounted for. Please retain
these installation instructions for future reference.
IMPORTANT
The LED Headlight Kit is exclusively designed for your vehicle. Please read the installation
instructions thoroughly before beginning. Installation is easier if the vehicle is clean and free of
debris. For your safety, and to ensure a satisfactory installation, perform all installation steps
correctly in the sequence shown.
INSTRUCTIONS
Installation
Note: Shift vehicle transmission into "PARK". Turn key
to "OFF" position and remove from vehicle.

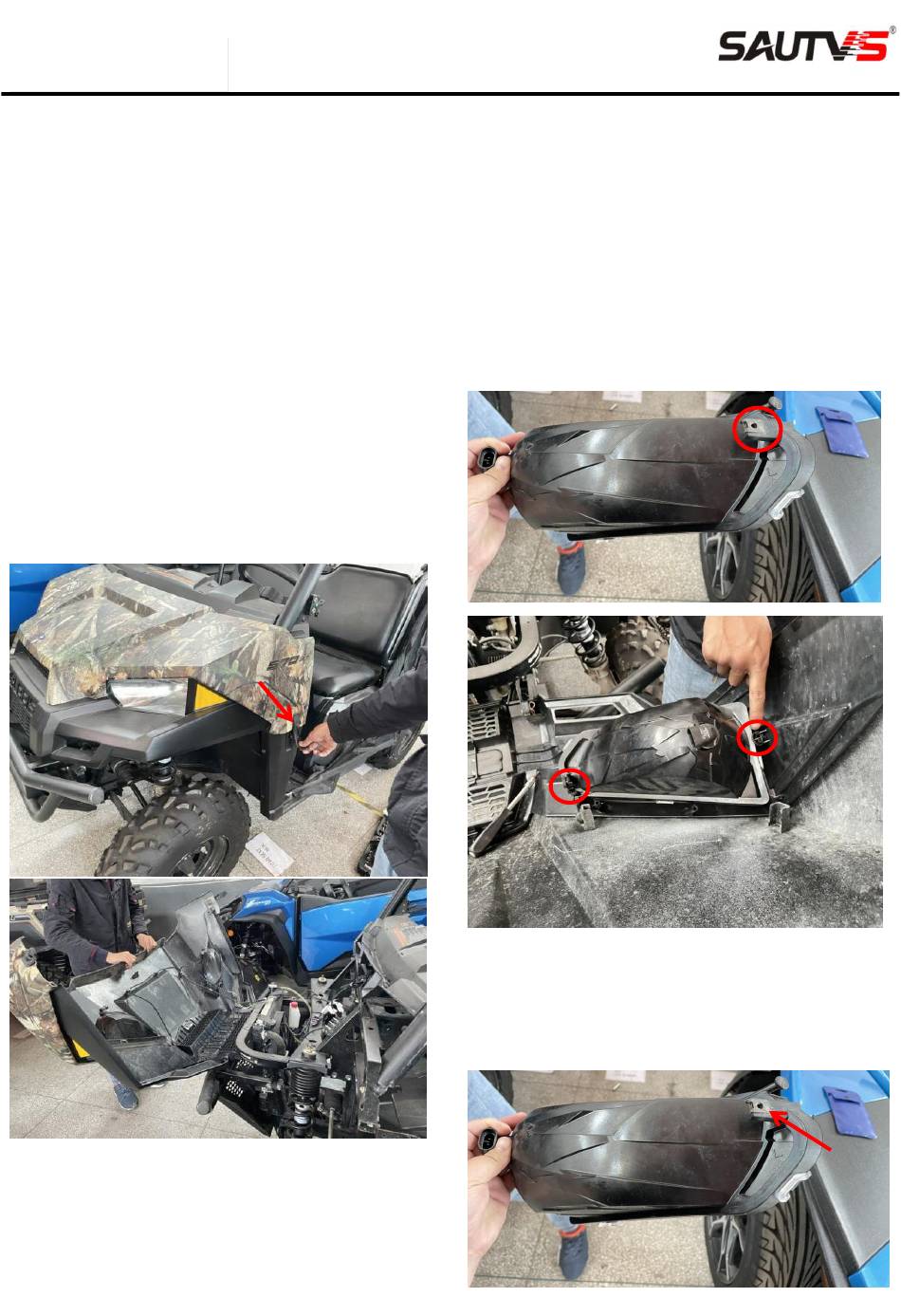

1. Pull the handle beside the cover and open the
machine cover, as shown in the picture:
2.Firstly, remove the wiring harness plug-ins of the
original headlight and remove the headlight (there
is a steel clip and two O shaped rings on the
headlight, remove them for later use) as shown in
the figure:
3.Place the removed steel clip to the new headlight
following the position of the original headlight, and
then install the light to the vehicle, and fix the
screws, and the O-rings are also installed back to
the original position, as shown in the picture:
