SAUTVS ZP-YJ-030507-003 Manual

Plastic Hard Roof for Polaris RZR XP 4 1000
ZP-YJ-030507-003
BEFORE YOU BEGIN
Read these instructions and check to be sure all parts and tools are accounted for. Please retain
these installation instructions for future reference.
IMPORTANT
This PLASTIC HARD ROOF is exclusively designed for your vehicle. Please read the installation
instructions thoroughly before beginning. Installation is easier if the vehicle is clean and free of
debris.
INSTALLATION INSTRUCTIONS

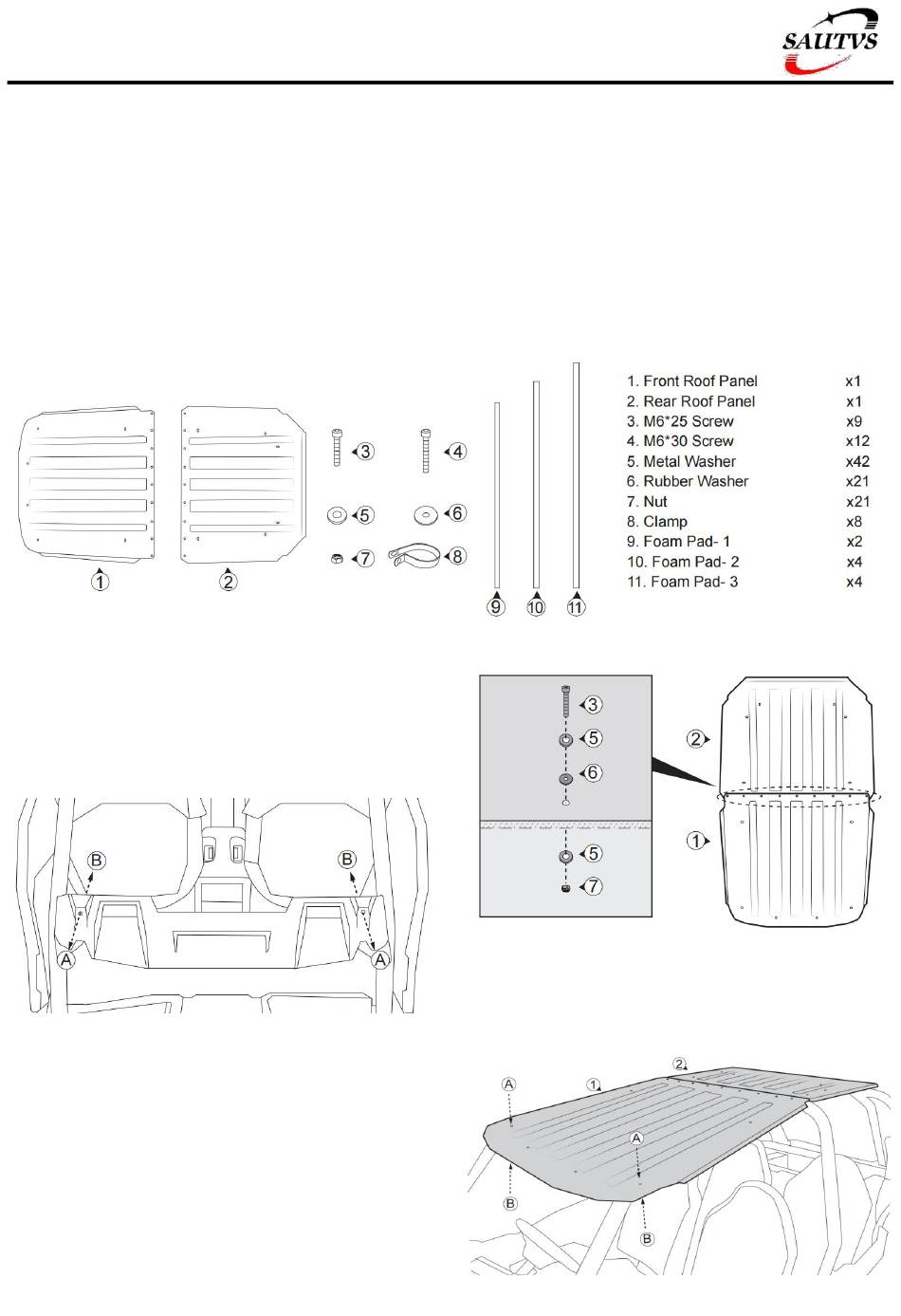

1. Shift vehicle transmission into "PARK". Turn
key to "OFF" position and remove from vehicle.
2. Remove two original factory screws A and
U-nuts B, set them aside for reuse.
3. Assemble front roof panel ① and rear roof
panel ② with nine M6*25 screws ③, eighteen
metal washers ⑤, nine rubber washer ⑥ and
nine nuts ⑦.
4. Place assembled roof ①② on the roll cage,
loosely secure its anterior part with two original
factory screws [A] and U-nuts [B] first.
