SAUTVS ZP-YJ-030603-086 Manual

A-Arm Guard Protectors For Can-Am Ryker
ZP-YJ-030603-086
BEFORE YOU BEGIN
Read these instructions and check to be sure all parts and tools are accounted for. Please retain
these installation instructions for future reference.
IMPORTANT
This A-ARM GUARD PROTECTORS KIT is exclusively designed for your vehicle. Please read the
installation instructions thoroughly before beginning. Installation is easier if the vehicle is clean and
free of debris.
INSTALLATION INSTRUCTIONS
1. Shift vehicle transmission into "PARK". Turn
key to "OFF" position and remove from vehicle.

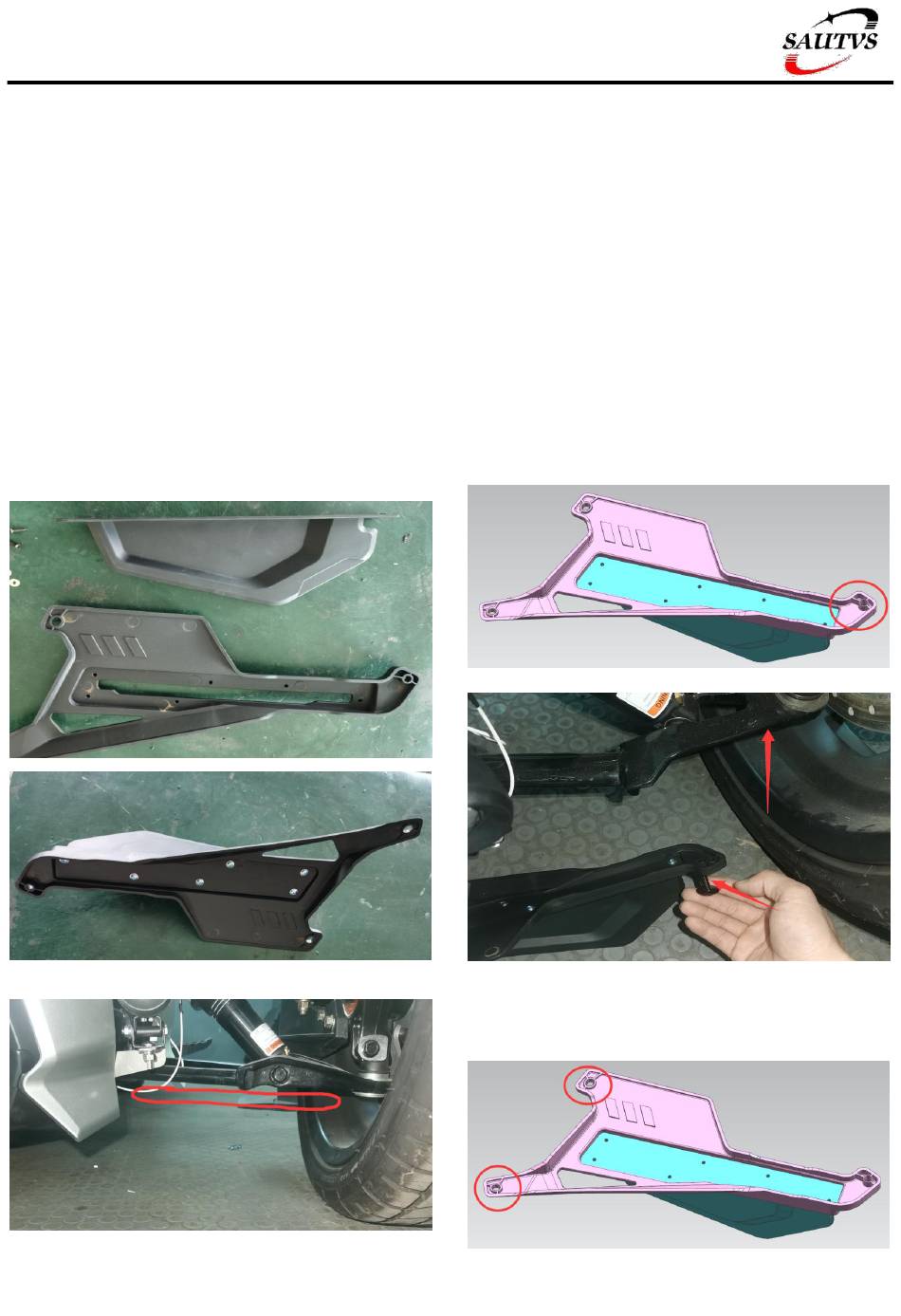

2. Assemble the shield with screws as shown
in the picture.
3. Install the shield in the position shown.
4. Use M6X20 screws and flat pads to mount a
section of the shield on the frame at the
location indicated by the red arrow.
5. Then use M5X20 screws, flat pads and nuts
to attach the other end of the guard to the
frame.
