Bosch ALB 18 LI Manual

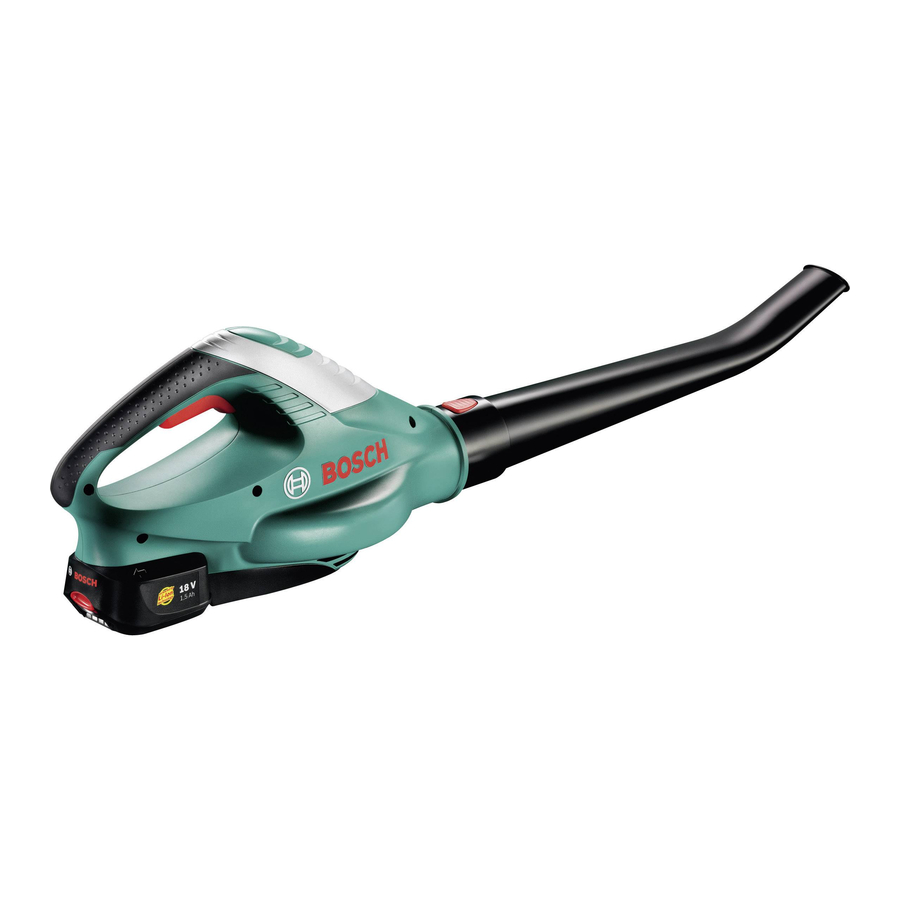

Product Features

1. On/Off switch
2. Motor unit
3. Button for unlocking nozzle
4. Nozzle
5. Battery^a
6. Charger^a

1. Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical Data

1. Depends on battery in use
2. Limited performance at temperatures < 0°C

Noise/Vibration Information

Assembly

•
  Switch garden tool off and remove battery from machine before adjusting or cleaning.

Mounting the nozzle

Slide the nozzle (4) onto the motor unit. Take care not to pinch your fingers during assembly.

Inserting/Removing the Battery

Note: Using unsuitable batteries can lead to malfunctions or damage the machine.
Insert the charged battery (5). Ensure the battery is inserted correctly.
To remove the battery (5) from the machine, press the battery unlocking button and pull the battery out.

Switching on

• Before any work on the garden product itself (e. g. maintenance, tool change, etc.) as well as during transport and storage, remove the battery from the garden product. There is danger of injury when unintentionally actuating the On/Off switch.
• The machine continues to blow for a few seconds after being switched off. Allow the motor to stop rotating before switching "on" again.
  Do not rapidly switch off and on.

Operation

•
  Switch garden tool off and remove battery from machine before adjusting or cleaning.

Switching On and Off

To switch on, push the On/Off switch (1).
To switch off, release the On/Off switch (1).

Disassembling

(see figure B)
Press button (3) in and remove the nozzle (4).

Working instruction

When operating, always hold the machine approximately 3 cm above the ground.
Do not blow hot, flammable or explosive material.

Troubleshooting

Maintenance

Maintenance, Cleaning and Storage

• Before any work on the garden product itself (e. g. maintenance, tool change, etc.) as well as during transport and storage, remove the battery from the garden product. There is danger of injury when unintentionally actuating the On/Off switch.
• For safe and proper working, always keep the product clean.

Do not place other objects on the garden product.
To ensure safe and efficient operation, always keep the product and the ventilation slots clean.
Never spray the product with water.
Never immerse the product in water.
Store the product in a secure, dry place, out of the reach of children.
Do not place other objects on the product.
Keep all nuts, bolts and screws tight to ensure safe working with the product.
Inspect the product and replace worn or damaged parts for safety.
Ensure replacement parts fitted are Bosch-approved.

Battery Maintenance

Use the following procedures to enable optimum usage of the battery:

• Protect the battery against moisture and water.
• Store the machine and battery only within a temperature range between –20°C and 50°C. As an example, do not leave the battery in the car in summer.
• It is recommended that the battery is not stored within the product but stored separately.
• Do not leave the battery in the product in direct sunlight.
• The ideal storage condition for the battery is 5°C.
• Occasionally clean the venting slots of the battery using a soft, clean and dry brush.

A significantly reduced working period after charging indicates that the battery is used and must be replaced.

Transport

The recommended lithium-ion batteries are subject to legislation on the transport of dangerous goods. The user can transport the batteries by road without further requirements.
When shipping by third parties (e.g.: by air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.
Dispatch battery packs only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more detailed national regulations.

Safety Notes

Read all safety warnings and all instructions. Make yourself familiar with the controls and the proper use of the product. Please keep the instructions safe for later use!

Explanation of symbols on the machine

	General hazard safety alert.
	Read instruction manual.
	Do not expose to rain.
	Beware of thrown objects.
	Keep bystanders away.
	Keep hands, feet or loose clothes out of the the openings while the product is running.
	Rotating fan. Keep hands, feet, long hair or loose clothes out of the openings while the product is running.
	Wear eye and ear protection.
	Disconnect battery before maintenance.

Operation

• Never allow children or people unfamiliar with these instructions to use the product. Local regulations may restrict the age of the operator. When not in use store the product out of reach of children.
• This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the product.
• Never operate the product while people, especially children or pets, are nearby.
• The user is responsible for accidents or hazards occurring to other people or their property.
• Other persons and animals should remain at a distance of 3 metres or more when the product is being used. The operator is responsible for third persons in the working area.
• Use the product only in daylight or good artificial light.
• Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine.
• Avoid operating the product in bad weather conditions especially when there is a risk of lightning.
• Always wear substantial clothing on the upper body and limbs when operating this product.
• Do not wear open rubber shoes or sandals when using the product. Always wear sturdy shoes and long trousers. Do not use barefoot.
• Failure to keep loose clothing from being drawn into air intake could result in personal injury.
• Only operate the product with mounted nozzle.
• Failure to keep long hair tied back and away from the air inlet could result in personal injury.
• Thoroughly inspect the area where the product is to be used and remove all wires and other foreign objects.
• Check cable for damage before starting work and replace if necessary. Keep cable away from heat, oil and sharp edges.
• Always direct the cable to the rear away from the product.
• Never operate the product with defective guards or shields, or without safety devices, for example collection bag in place.
• Always ensure all handles and guards supplied are fitted when using the product. Never attempt to use an incomplete product or one fitted with an unauthorized modification.
• While operating the product always be sure of a safe and secure operating position at all times.
• Always be aware of your surroundings and stay alert for possible hazards that you may not hear whilst operating the leaf blower.
• Do not over reach and keep your balance at all times.
• Always be sure of your footing on slopes.
• Walk, never run. u Keep all cooling air inlets clear of debris.
• Never blow debris in the direction of bystanders.
• Do not carry the product by the cable.
• The wearing of a face mask is recommended.
• Wear eye protection.
• Do not modify the product. Unauthorized modifications may impair the safety of your product and may result in increased noise and vibration.
• A worn fan or blower housing (chips, cracks, nicks) may cause an increased risk of injury from thrown foreign objects. If the fan or blower housing are damaged, consult the Bosch hotline.

Recommendations for Optimal Handling of the Battery Pack

• Do not open the battery. There is a risk of short-circuiting.
  Protect the battery against heat (e.g., against continuous intense sunlight), fire, water, and moisture. There is a risk of explosion.
• In case of damage and improper use of the battery pack, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
• Only use the battery with products from the manufacturer. This is the only way in which you can protect the battery against dangerous overload.
• The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
• Do not short-circuit the battery. There is a risk of explosion.
• Occasionally clean the venting slots of the battery using a soft, clean and dry brush.
• Charge the machine only with the supplied battery charger.

Symbols

The following symbols are important for reading and understanding the original instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the product in a better and safer manner.

Symbol	Meaning
	Movement direction
	Reaction direction
	Switching On
	Switching Off
	Permitted action
	Prohibited action
	Audible noise
	Weight

Intended Use

The product is intended for blowing leaves, garden waste such as grass, twigs and pine needles.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com
The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.
In all correspondence and spare parts orders, please always include the 10‑digit article number given on the nameplate of the product.

Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.
Tel. Service: (0344) 7360109
E-Mail: boschservicecentre@bosch.com
You can find further service addresses at: www.bosch-pt.com/serviceaddresses
