Bosch SDS-clic Manual

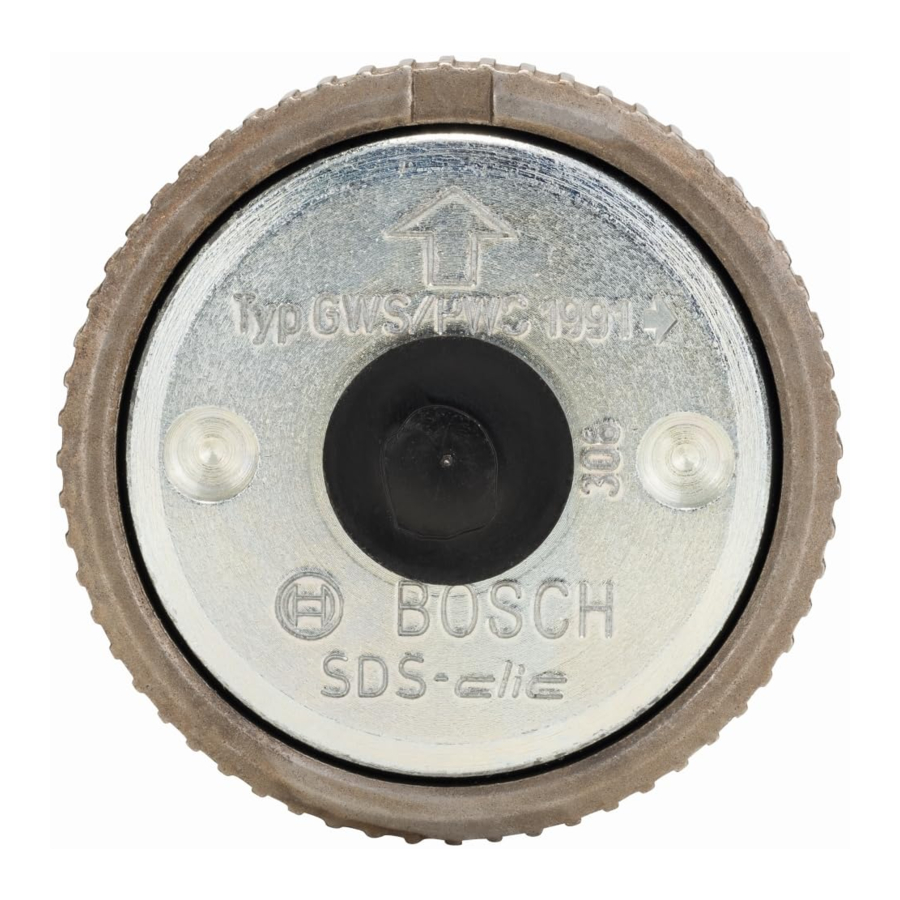

Quick-clamping Nut SDS-clic

• „Observe the safety warnings for the power tool you are using.
• „Use the quick-clamping nut 1 603 340 031 only for bonded grinding and cutting discs and for diamond cutting discs on an angle grinder with M14 grinder spindle thread.

• „Use the quick-clamping nut 2 608 000 638 for bonded grinding and cutting discs, for diamond cutting discs and also for carbide cup wheels only on a Bosch angle grinder with magnetic brake function with M14x1.5 grinder spindle thread – see figure A2.
• „Use only a flawless, undamaged quick-clamping nut 3.

Clean the grinder spindle 5, the mounting flange 4 and the quickclamping nut 3.
When screwing on, pay attention that the labelled side of the quickclamping nut 3 does not face toward the grinding disc; the arrow must point toward the index mark 2.
