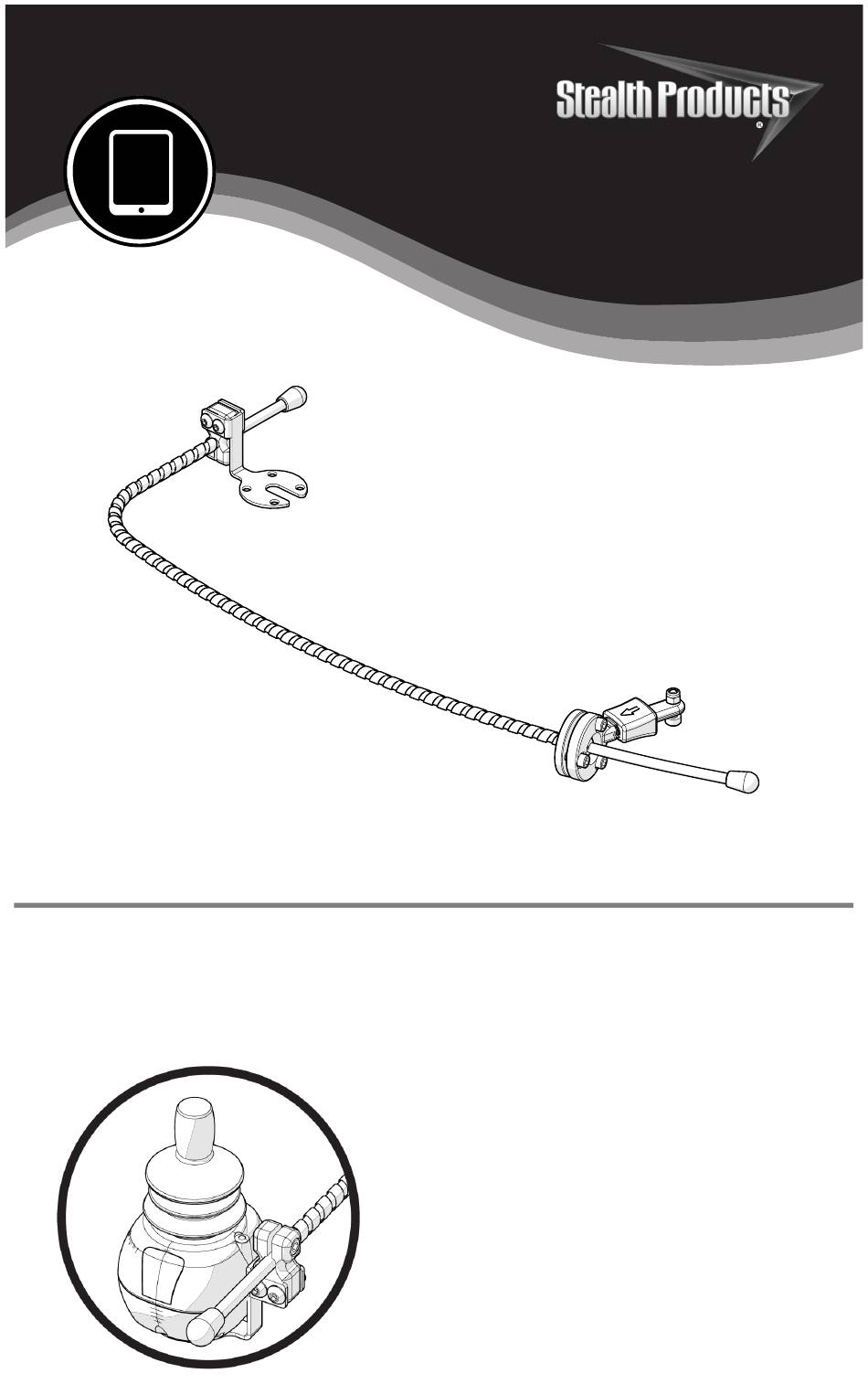

- Page 1 Mounting Hardware Install Manual SM660-M Swing Away Mount For SM Series Chin or ARMS260 Mounts INSTALLATION INSTRUCTIONS FOR Permobil: Compact Joystick, CJA, CJL, Mini Joystick Stealth Products: IDM-ALLROUND-9, IDM-ARLITE-9 Mo-Vis: P002-71 All-Round Joystick P002-72 All Round Lite Joystick...
- Page 2 Customer Satisfaction Stealth Commitment Stealth Products strives for 100% customer satisfaction. Your complete satisfaction is important. Please contact us with feedback or suggested changes that will help improve the quality and usability of our swing away hardware. You may reach us at:...
-
Page 3: Warning Labels
SAFETY necessary. Limited Liability Stealth Products, LLC accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings, and instructions in this manual. Stealth Products does not hold responsibility of final integration of final assembly of product to end user. -
Page 4: Table Of Contents
Table of Contents 1.0 Customer Satisfaction ................i 1.1 Stealth Commitment....................i 2.0 Warnings ....................ii 2.1 Warning Labels ...................... ii 2.2 Limited Liability ...................... ii 2.3 Testing ........................ii 3.0 Table of Contents ...................... iii 4.0 Parts and Accessories ................1 4.1 Mounting Hardware Parts ................ -
Page 5: Parts And Accessories
Parts and Accessories Mounting Hardware Parts Safety Cap Joystick Mount Joystick Bracket Swing Away Ear Swivel Mount Spiral Wrap Screws and Tools Description 10-24 x 1/2” SHS (B2) Clamp Mount Screw and (C) Swing Away Ear Ball Screws 10-32 x 1/4” BHS (B) Bracket Screws M4 x 0.7 x 10mm (B1) Joystick Bracket Screws M5 x 0.8 x 18mm (C) Swing Away Ear Shoulder Screw M5 Lock Nut... -
Page 6: Installation Instructions
Installation Instructions CAUTION DO NOT OVER TIGHTEN SCREWS. This could cause wearing of screws or joystick threads, causing the client to lose efficient control. Installing Joystick Step 1. Use screws (3) provided by manufacturer. Step 2. Tighten screws (3) Ensure joystick is facing right direction position screws accordingly,... -
Page 7: Mounting Height Adjustment
Installation Instructions Mounting Height Adjustment Step 1: Step 2. Step 3. Remove safety cap (A), loosen Rotate mount clamp (B1) on its Assemble joystick bracket (B1) mount clamp (B2) and screw (1). side. Ensure screw is always to clamp, slide clamp into rod Slide off mount clamp from rod facing away from client. -
Page 8: Vertical Alignment
Installation Instructions Vertical Alignment Loosen clamp mount (B2) screw (1), slide on rod (D) to desired Tighten screw (1). vertical position. Installing to Swing Away System or ARMS260 Rod Step 1: Step 2: Step 3: Locate swing away ear screw Loosen ear screw (4) and install Tighten swing away ear screw (4). -
Page 9: Functioning
Functioning Basic Function The SM660-M/ARMS260 Swing Away system allows versatile and on demand adjustment. Rod can be bent and cut to accommodate specifications. It rests within the swing away ball which allows for a 30° adjustment in any direction, and rotates 360° on its own axis as well. -
Page 10: Maintenance
Maintenance SAFETY For joystick maintenance guidelines refer to the device’s user manual. Maintenance Check every 6 months that screws are tight. Gently tighten any screws that may have become loose. Maintain that the hardware is clean and free of dust. Cleaning ... -
Page 11: Warranty
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. - Page 12 Stealth Products, LLC. • info@stealthproducts.com • www.stealthproducts.com +1(800) 965-9229 | +1(512) 715-9995 | 104 John Kelly Drive, Burnet TX 78611 P120D195 Revision Date 2019-12-17...
