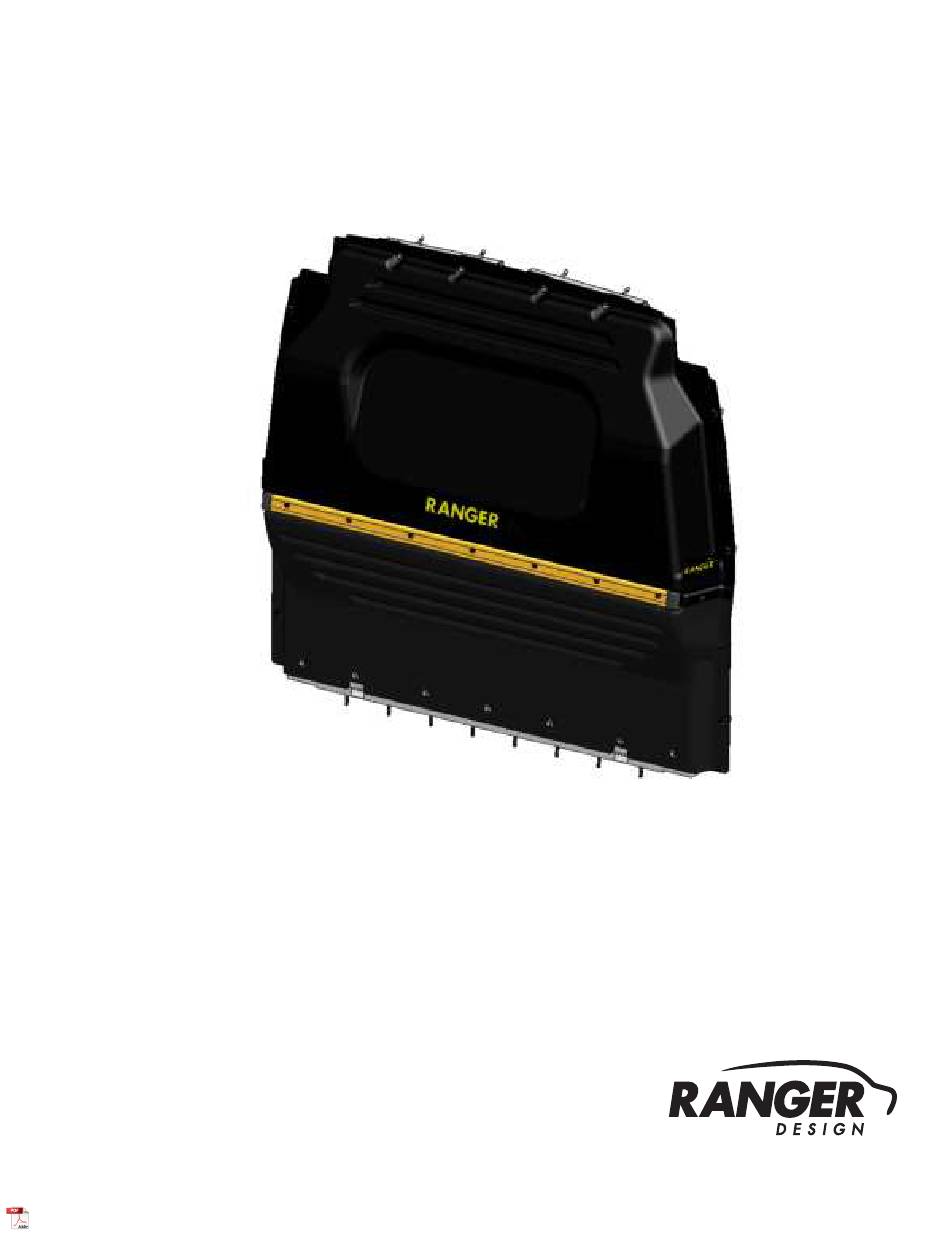

- Page 1 INSTALLATION GUIDE 3310-PC CONTOURED PARTITION Promaster City ( Black Plastic )
-
Page 2: Table Of Contents
7/16" Socket q 10mm Socket q 13mm Socket q T30 Torque Bit q T40 Torque Bit q 9/16" Wrench q 1/2" Holesaw PERSONS 3310-PC Installation Guide | REV. G2 | Page 2 For technical support, contact us at 1-800-565-5321... -
Page 3: Phase 1 - Assembly
Mounting Track ( 53-1/4" L ) 79-932 Warning Label ( Bilingual ) 30-0940 Upper Panel w/ Label 94-3002 Assembly Fastener Bag 96-3002 Installation Fastener Bag 3310-PC Installation Guide | REV. G2 | Page 3 For technical support, contact us at 1-800-565-5321... -
Page 4: Q 1.1.3 Identify The Assembly And Installation Fastener Bags
0.375" ID, × 1.0" OD × 0.25" L NYLON #98-157 Spacers ( 3 ) Retaining Washer 8× # 98-158 M16 ( 1/4") #98-158 Retaining Washer NYLON 3310-PC Installation Guide | REV. G2 | Page 4 For technical support, contact us at 1-800-565-5321... -
Page 5: Q 1.2 Partition Assembly
1.2.1 Attach the lower panel and mounting track to the upper panel. TOOLS q Cordless Impact q 7/16" Socket HARDWARE USED 7× #90-114 Hex Bolt 1/4" × 1" #98-112 Flat Washer #94-112 Serrated Nut 3310-PC Installation Guide | REV. G2 | Page 5 For technical support, contact us at 1-800-565-5321... -
Page 6: Q 1.2.2 Attach The Sides Of The Upper Panel And Lower Panel Together On Both Sides
1.2.2 Attach the sides of the upper panel and lower panel together on both sides. TOOLS q Cordless Impact q 7/16" Socket HARDWARE USED 2× #90-114 Hex Bolt 1/4" × 1" #98-112 Flat Washer #94-112 Serrated Nut 3310-PC Installation Guide | REV. G2 | Page 6 For technical support, contact us at 1-800-565-5321... -
Page 7: Phase 2 - Installation
7/16" socket until the plusnut locks, then remove the bolt by turning the impact in reverse. FORWARD REVERSE 3310-PC Installation Guide | REV. G2 | Page 7 For technical support, contact us at 1-800-565-5321... -
Page 8: Q 2.2 Vehicle Preparation
Tape or roll the cable. NOTE: Pulling the cable unlocked the door. 3310-PC Installation Guide | REV. G2 | Page 8 For technical support, contact us at 1-800-565-5321... -
Page 9: Q 2.2.2 Removing Overhead Plastic
NOTE: Do these on both sides of the van. TOOLS q Cordless Impact or Ratchet q Philips Screw Driver q 7/16" Socket 3310-PC Installation Guide | REV. G2 | Page 9 For technical support, contact us at 1-800-565-5321... -
Page 10: Q 2.2.3 Driver And Passenger Sides Preparation
1" holesaw. TOOLS q Cordless Drill q Knife q 1" Holesaw 3310-PC Installation Guide | REV. G2 | Page 10 For technical support, contact us at 1-800-565-5321... -
Page 11: Q 2.2.4 Ceiling And Floor Preparation
Remove plastic caps and the two D-rings from vehicle floor, then verify if the threads are in good condition. TOOLS q Cordless Impact q T40 Torque Bit 3310-PC Installation Guide | REV. G2 | Page 11 For technical support, contact us at 1-800-565-5321... -
Page 12: Q 2.3 Contoured Partition Installation
#90-668 Hex Bolt M8 × 40 #90-118 Hex Bolt 1/4" × 1-1/4" #98-112 Flat Washer #98-122 Lock Washer #94-112 Serrated Nut #98-116 Flat Washer 3310-PC Installation Guide | REV. G2 | Page 12 For technical support, contact us at 1-800-565-5321... -
Page 13: Q 2.3.2 Lift The Assembled Partition In The Van, Then Bolt Both Sides Of The Partition In The Van
HARDWARE USED 8× #90-836 Hex Bolt M6 " × 40 #98-118 Lock Washer #98-112 Flat Washer #98-157 Spacers ( 3 ) #98-158 Retaining Washer 3310-PC Installation Guide | REV. G2 | Page 13 For technical support, contact us at 1-800-565-5321... -
Page 14: Q 2.3.3 Attach The Upper And Lower Panels To The J - Shapes And Floor Brackets
#90-204 Hex Bolt 5/16" × 3/4" #90-110 Hex Bolt 1/4" × 3/4" #98-118 Lock Washer #98-116 Flat Washer #98-112 Flat Washer #94-116 Serrated Nut 3310-PC Installation Guide | REV. G2 | Page 14 For technical support, contact us at 1-800-565-5321... -
Page 15: Q 2.3.4 Apply The Warning Label On The Upper Panel
2.3.4 Apply the warning label on the upper panel. NOTE: English warning label is already attached on the passenger side panel. 3310-PC Installation Guide | REV. G2 | Page 15 For technical support, contact us at 1-800-565-5321... - Page 16 “Congratulations, you have successfully installed your Contoured Partition! Thank you for doing business with us.” cs@rangerdesign.com For any feedback or suggestions you may have, please contact: 3310-PC Installation Guide | REV. G2 | Page 16 For technical support, contact us at 1-800-565-5321...
