INSTALLATION GUIDE
3020-NL CONTOURED PARTITION
Nissan NV ( Polycarbonate Window, Aluminum )

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3020-NL and is the answer not in the manual?

Questions and answers

Summary of Contents for Ranger design 3020-NL

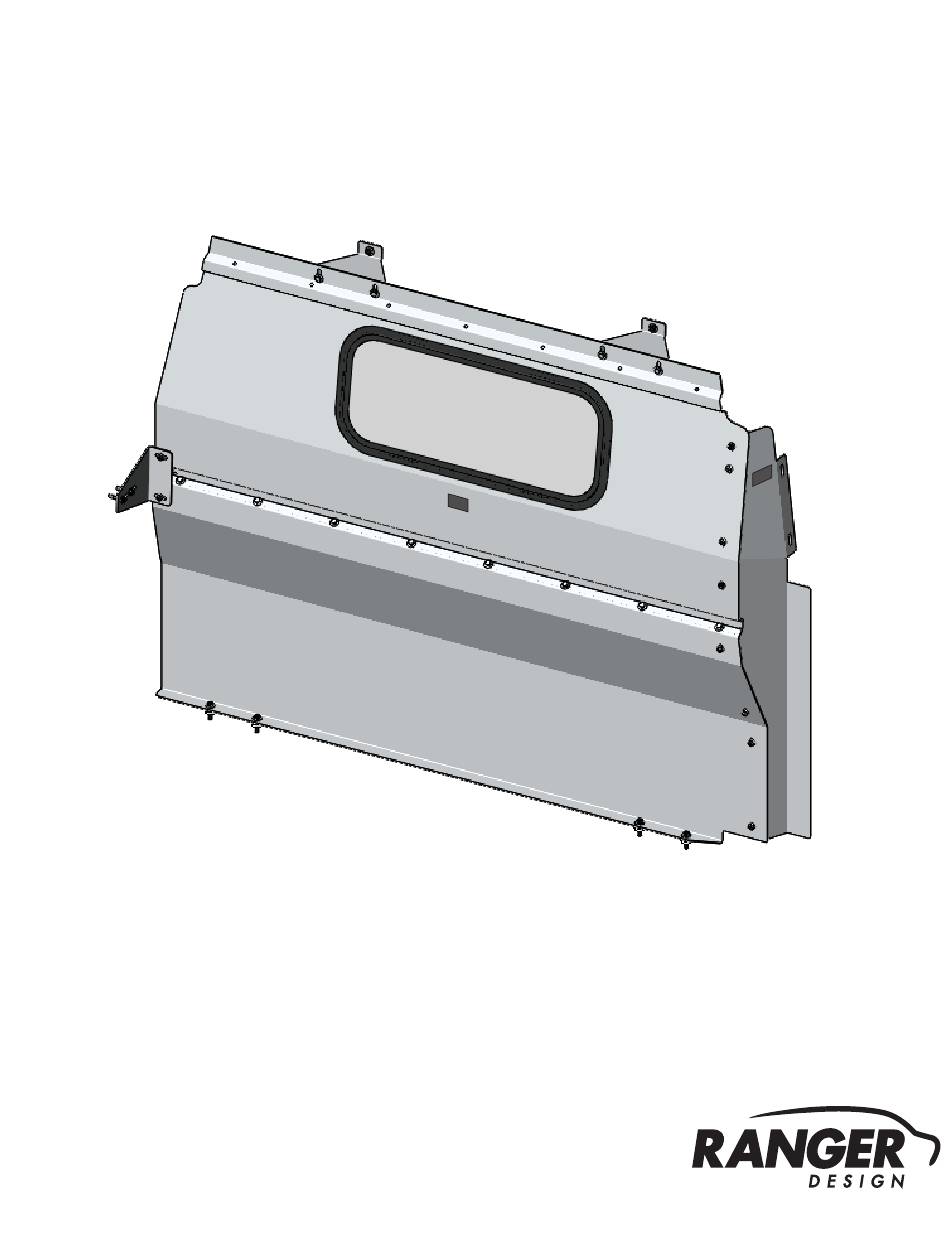

  • Page 1 INSTALLATION GUIDE 3020-NL CONTOURED PARTITION Nissan NV ( Polycarbonate Window, Aluminum )
  • Page 2: Table Of Contents

    Marker q Plusnut Tool q Tape Measure q 3/8" Drill Bit q 7/16" Socket q 1/2" Socket q 9/16" Wrench q 13mm Socket PERSONS 3020-NL Installation Guide | REV. B2 | Page 2 For technical support, contact us at 1-800-565-5321...
  • Page 3: Phase 1 - Assembly

    30-500 Edge Trim ( QTY in Inches ) 79-907 Warning Label 30-2008 Upper Panel w/ Window 94-3022 Assembly Fastener Bag 96-3024 Installation Fastener Bag 3020-NL Installation Guide | REV. B2 | Page 3 For technical support, contact us at 1-800-565-5321...
  • Page 4: Q 1.1.3 Identify The Assembly And Installation Fastener Bags

    # 98-122 Regular 5/6" ZINC #98-157 Spacers ( 2 ) Spacer 8× 8× # 98-157 0.375" ID, × 1.0" OD × 0.25" L NYLON 3020-NL Installation Guide | REV. B2 | Page 4 For technical support, contact us at 1-800-565-5321...
  • Page 5: Q 1.2 Partition Assembly

    1.2.1 Remove all the PVC from all the parts, then attach upper panel to the lower panel. TOOLS q Cordless Impact q 1/2" Socket HARDWARE USED 8× #90-204 Hex Bolt 5/16" × 3/4" #98-116 Flat Washer #94-116 Serrated Nut 3020-NL Installation Guide | REV. B2 | Page 5 For technical support, contact us at 1-800-565-5321...
  • Page 6: Q 1.2.2 Attach Both Wings To The Upper And Lower Panels

    #90-204 Hex Bolt 5/16" × 3/4" #90-204 Hex Bolt 5/16" × 3/4" #98-116 Flat Washer #98-116 Flat Washer #94-116 Serrated Nut #94-116 Serrated Nut 3020-NL Installation Guide | REV. B2 | Page 6 For technical support, contact us at 1-800-565-5321...
  • Page 7: Q 1.2.3 Attach The Edge Trims Along Both Sides Of The Upper And Lower Panels

    1.2.4 Attach the edge trims along both sides of the upper and lower panels. TOOLS TOOLS q Mallet q Mallet q Cutter q Cutter 3020-NL Installation Guide | REV. B2 | Page 7 For technical support, contact us at 1-800-565-5321...
  • Page 8: Phase 2 - Installation

    7/16" socket until the plusnut locks, then remove the bolt by turning the impact in reverse. FORWARD REVERSE 3020-NL Installation Guide | REV. B2 | Page 8 For technical support, contact us at 1-800-565-5321...
  • Page 9: Q 2.2 Vehicle Preparation

    2.2.1 Remove the grab handle and the 2 D-rings in the van. NOTE: Keep the handle and its hardware for re-use. TOOLS q Cordless Impact q 13mm Socket TOOLS q Cordless Impact q 13mm Socket 3020-NL Installation Guide | REV. B2 | Page 9 For technical support, contact us at 1-800-565-5321...
  • Page 10: Q 2.3 Contoured Partition Installation

    2.3.1 Attach the 2 ceiling brackets in the van. TOOLS HARDWARE USED q Cordless Impact 2× q 13mm Socket #90-666 Hex Bolt M8 × 20 #98-122 Lock Washer #98-116 Flat Washer 3020-NL Installation Guide | REV. B2 | Page 10 For technical support, contact us at 1-800-565-5321...
  • Page 11: Q 2.3.1 Attach The 2 Ceiling Brackets In The Van

    3/8" Drill Bit or Step Drill Attach a plusnuts in the 2 holes. TOOLS HARDWARE USED q Plusnut Tool 2× # 94-130 Plusnut .250 3020-NL Installation Guide | REV. B2 | Page 11 For technical support, contact us at 1-800-565-5321...
  • Page 12: Q 2.3.3 Attach The Upper Panel To The Ceiling Brackets

    2.3.3 Attach the upper panel to the ceiling bracket. TOOLS q Cordless Impact q 1/2" Socket HARDWARE USED 4× #90-204 Hex Bolt 5/16" × 3/4" #98-116 Flat Washer #94-116 Serrated Nut 3020-NL Installation Guide | REV. B2 | Page 12 For technical support, contact us at 1-800-565-5321...
  • Page 13: Q 2.3.4 Bolt The Lower Panel In The Van

    Cordless Impact 4× q 13mm Socket #90-668 Hex Bolt M8 × 40 #98-122 Lock Washer #98-116 Flat Washer #98-157 Spacers ( 2 ) 3020-NL Installation Guide | REV. B2 | Page 13 For technical support, contact us at 1-800-565-5321...
  • Page 14: Q 2.3.5 Bolt Both Wings Of The Partition In The Van

    13mm Socket 2× HARDWARE USED 2× #90-114 Hex Bolt 1/4" × 1" Use the hardware from the grab handle. #98-118 Lock Washer #98-112 Flat Washer 3020-NL Installation Guide | REV. B2 | Page 14 For technical support, contact us at 1-800-565-5321...
  • Page 15: Grab Handle On The Upper Panel Of The Partition

    NOTE: Put the warning label in a place where it’s easy to see. NOTE: You can use these 2 bolts for the grab handle. 3020-NL Installation Guide | REV. B2 | Page 15 For technical support, contact us at 1-800-565-5321...
  • Page 16 “Congratulations, you have successfully installed your Contoured Partition! Thank you for doing business with us.” 3020-NL Installation Guide | REV. B2 | Page 16 For technical support, contact us at 1-800-565-5321...
