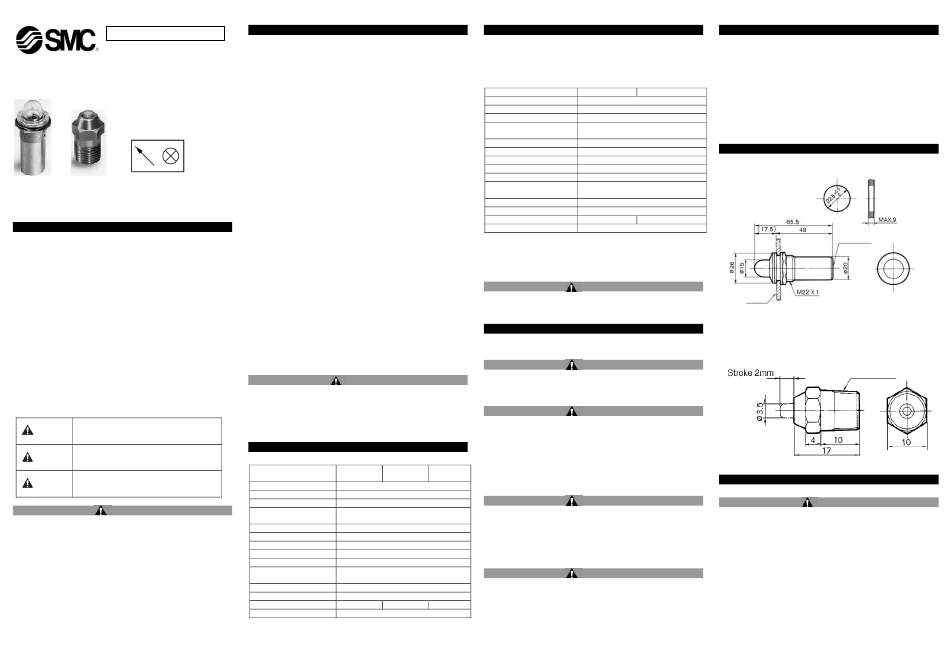

SMC Networks VR31 0 Series Original Instructions

VR31-SMT04EN
ORIGINAL INSTRUCTIONS
Instruction Manual
Pneumatic Indicator
Series VR31*0
The intended use of this product is to indicate the presence of pneumatic
pressure.
Validated according to ISO 13849, see section 2.
1 Safety Instructions
These safety instructions are intended to prevent hazardous situations
and/or equipment damage. These instructions indicate the level of potential
hazard with the labels of "Caution," "Warning" or "Danger."
They are all important notes for safety and must be followed in addition to
*1)
International Standards (ISO/IEC) , and other safety regulations.
*1)
ISO 4414: Pneumatic fluid power - - General rules relating to systems.
ISO 4413: Hydraulic fluid power - - General rules relating to systems.
IEC 60204-1: Safety of machinery - -Electrical equipment of machines.
(Part 1: General requirements)
ISO 10218-1: Manipulating industrial robots -Safety.etc.
This manual contains essential information for the protection of users and
others from possible injury and/or equipment damage.
 Read this manual before using the product, to ensure correct handling,
and read the manuals of related apparatus before use.
 Keep this manual in a safe place for future reference.
 To ensure safety of personnel and equipment the safety instructions in
this manual must be observed, along with other relevant safety
practices.
Caution indicates a hazard with a low level of risk
Caution which, if not avoided, could result in minor or
moderate injury.
Warning indicates a hazard with a medium level
Warning
of risk which, if not avoided, could result in death
or serious injury.
Danger indicates a hazard with a high level of risk
Danger which, if not avoided, will result in death or serious
injury.
Warning
 The compatibility of the product is the responsibility of the person
who designs the equipment or decides its specifications.
 Since the product specified here is used under various operating
conditions, its compatibility with specific equipment must be decided by
the person who designs the equipment or decides its specifications
based on necessary analysis and test results. The expected
performance and safety assurance of the equipment will be the
responsibility of the person who has determined its compatibility with the
product. This person should also continuously review all specifications of
the product referring to its latest catalogue information, with a view to
giving due consideration to any possibility of equipment failure when
configuring the equipment.
1 Safety Instructions - continued
 Only personnel with appropriate training should operate machinery
and equipment.
The product specified here may become unsafe if handled incorrectly.
The assembly, operation and maintenance of machines or equipment
including our products must be performed by an operator who is
appropriately trained and experienced.
 Do
not service or attempt to remove product
machinery/equipment until safety is confirmed.
1) The inspection and maintenance of machinery/equipment should only
be performed after measures to prevent falling or runaway of the driven
objects have been confirmed.
2) When the product is to be removed, confirm that the safety measures
as mentioned above are implemented and the power from any
appropriate source is cut, and read and understand the specific product
precautions of all relevant products carefully.
3) Before machinery/equipment is restarted, take measures to prevent
unexpected operation and malfunction.
 Contact SMC beforehand and take special consideration of safety
measures if the product is to be used in any of the following
conditions.
1) Conditions and environments outside of the given specifications, or
use outdoors or in a place exposed to direct sunlight.
2) Installation on equipment in conjunction with atomic energy, railways,
air navigation, space, shipping, vehicles, military, medical treatment,
combustions and recreation, or equipment in contact with food and
beverages, emergency stop circuits, clutch and brake circuits in press
applications, safety equipment or other applications unsuitable for the
standard specification described in the product catalogue.
3) An application which could have negative effects on people, property,
or animals requiring special safety analysis outside the scope of ISO
13849 described in this document.
4) Use in an interlock circuit, which requires the provision of double
interlock for possible failure by using a mechanical protective function,
and periodical checks to confirm proper operation.
 Always ensure compliance with relevant safety laws and standards.
 All electrical work must be carried out in a safe manner by a qualified
person in compliance with applicable national regulations.
Caution
The product is provided for use in manufacturing industries.
The product herein described is basically provided for peaceful use in
manufacturing industries.
If considering using the product in other industries consult SMC
beforehand and exchange specifications or a contract if necessary.
If anything is unclear, contact your nearest sales branch.
2 Specifications
2.1 Specifications VR3100
VR3100- VR3100-
Series
01R 01G
Fluid Air
Min. Operation Pressure 0.1 MPa
Max. Operation Pressure 0.8 MPa
Ambient & operating fluid
-5 to +60 °C (No freezing)
temp.
Min. air quality 5 µm filtration
Min. operating frequency 1 cycle / 30 days
Max. Operating frequency 150 cycles per minute
Mass 40 g
Lubrication Not required (Refer to 3.4)
Complies with the basic safety principles of
Standards
ISO 13849
Note 1)
B 7.4 million cycles
10
Note 1)
B 14.8 million cycles
10d
Indicator light Red Green
Port size Rc 1/8 (6A)
2 Specifications - continued
Notes:
Note 1) Under SMC test conditions. The B
10
life tests. The B figure is derived from B
10d
in EN ISO 13849-1:2008 Annex C. Contact SMC for details.
2.1 Specifications VR3110
Series VR3110-01R
and
Fluid
Min. Operation Pressure
Max. Operation Pressure
Ambient & operating fluid
-5 to +60 °C (No freezing)
temp.
Min. air quality
Min. operating frequency
Max. Operating frequency
Mass
Lubrication Not required (Refer to 3.4)
Complies with the basic safety principles
Standards
Note 1)
B
10
Note 1)
B 14.8 million cycles
10d
Indicator light Red
Port size
Notes:
Note 1) Under SMC test conditions. The B figure is estimated from SMC
10
life tests. The B figure is derived from B
10d
in EN ISO 13849-1:2008 Annex C. Contact SMC for details.
Caution
Special products might have specifications different from those shown in
this section. Contact SMC for specific drawings. These Drawings will give
the appropriate specification details and compliance with the safety
principles of ISO 13849, if applicable.
3 Installation
3.1 Installation
Warning
 Do not install the product unless the safety instructions have been read
and understood.
3.2 Environment
Warning
 Do not use in an environment where corrosive gases, chemicals, salt
water or steam are present.
 Do not use in an explosive atmosphere.
 Do not expose to direct sunlight. Use a suitable protective cover.
 Do not install in a location subject to vibration or impact. Check the
product specifications.
VR3100-
 Do not mount in a location exposed to radiant heat.
01O
3.3 Piping
Caution
 Before piping make sure to clean up chips, cutting oil, dust etc.
 When installing piping or fittings, ensure sealant material does not enter
inside the port. When using seal tape, leave 1.5 to 2 threads exposed on
the end of the pipe/fitting.
 Tighten fittings to the specified tightening torque.
3.4 Lubrication
Caution
 SMC products have been lubricated for life at manufacture, and do not
require lubrication in service.
 If a lubricant is used in the system, use turbine oil Class 1 (no additive),
Orange
ISO VG32. Once lubricant is used in the system, lubrication must be
continued because the original lubricant applied during manufacturing
will be washed away.
4 How to Order
Pneumatic Indicator
figure is estimated from SMC VR3100-01R
using the assumption VR3100-01G
10
VR3100-01O
Miniature Pneumatic Indicator
VR3110-01G
VR3110-01R
Air
VR3110-01G
0.15 MPa
1.0 MPa
5 µm filtration
5 Outline Dimensions (mm)
1 cycle/30 days
60 cycles/minute 5.1 VR3100
6 g
of ISO 13849
7.4 million cycles
Green
R 1/8 (6A)
using the assumption
10
Panel
5.2 VR3110
Stroke 2mm
6 Maintenance
6.1 General Maintenance
 Not following proper maintenance procedures could cause the product to
malfunction and lead to equipment damage.
 If handled improperly, compressed air can be dangerous. Maintenance
of pneumatic systems should be performed only by qualified personnel.
 Before performing maintenance, turn off the power supply and be sure to
cut off the supply pressure. Confirm that the air is released to
atmosphere.
 After installation and maintenance, apply operating pressure and power
to the equipment and perform appropriate functional and leakage tests to
make sure the equipment is installed correctly.
 If any electrical connections are disturbed during maintenance, ensure
they are reconnected correctly and safety checks are carried out as
required to ensure continued compliance with applicable national
regulations.
 Do not make any modification to the product.
Indicator: Red
Indicator: Green
Indicator: Orange
Indicator: Red
Indicator: Green
Panel mounting hole
Rc1/8
Figure 1
R1/8
Figure 2
Caution
Page 1 of 2
