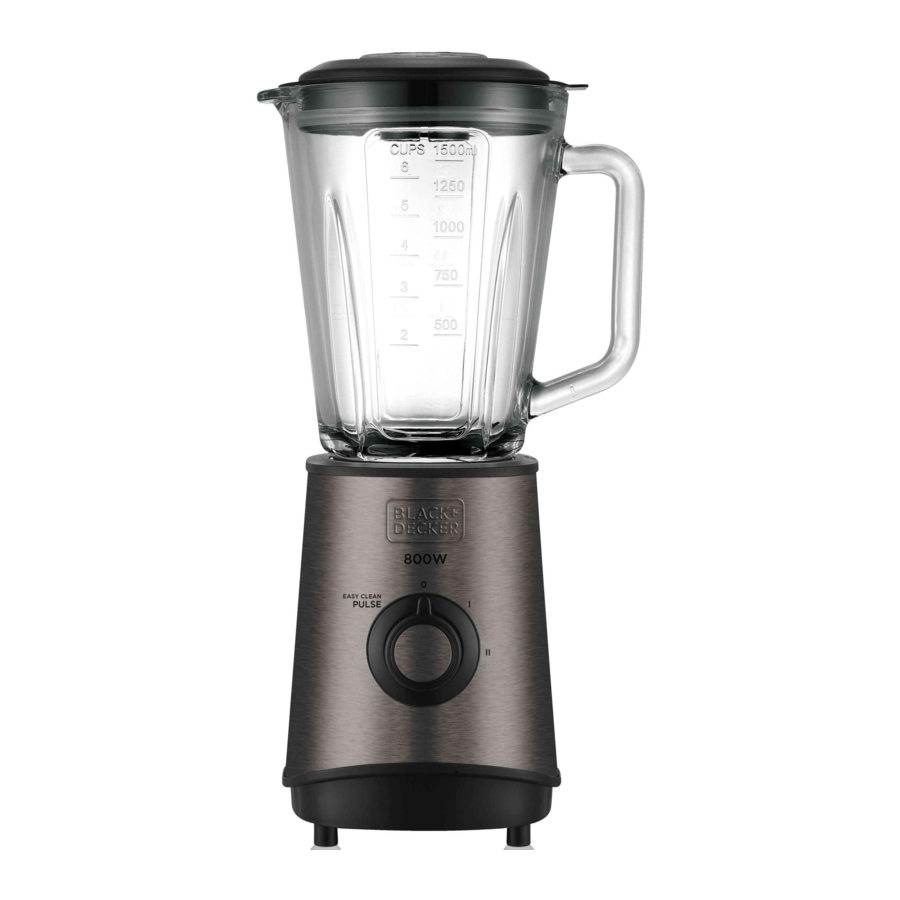

Black & Decker BXJB800E Manual

www.blackanddecker.eu

DESCRIPTION

Overview

Measuring cup
Jar lid
Sealing jar ring
Jar
Blade set
Blade fixing ring
Motor body
Speed selector
PULSE / EASY CLEAN function

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

INSTRUCTIONS FOR USE

BEFORE USE

Make sure that all products' packaging has been removed.
Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

USE

Unroll the cable completely before plugging it in.
Ensure the blade set is fixed properly to the jar before putting on the motor body.
Place the jar onto to the motor body until it fits properly into place. (Fig. 1).
Put the ingredients, after having first chopped them into small piece, into the jar with liquid (do not exceed the maximum marker).
Put the lid on the jar; make sure it is properly fixed in place.
Put the measuring cup in the lid.
Connect the appliance to the mains.
Turn the appliance on, by using the selection knob.
Choose desired speed and start blending.
If you wish to add more ingredients pull out the measuring cup.
Add the ingredients and replace the measuring cup.
To stop the appliance set the speed back to "0".
To avoid a fierce start up of the fan, it is advisable to start off from the lowest speed position and, once the fan has been switched on, progressively increase the speed to the desired position.

ELECTRONIC SPEED CONTROL

The speed of the appliance can be regulated by using the speed regulator control. This function is very useful, as it makes it possible to adapt the speed of the appliance to the type of work that needs to be done.

ONCE YOU HAVE FINISHED USING THE APPLIANCE

Unplug the appliance from the mains.
Lift the jar from the motor body.
Clean the appliance.

"PULSE / ICE CRUSH" FUNCTION

The appliance works in highest speed to achieve optimal performance.
Press this button to operate and release the button when you wish to stop operating. (Fig. 2)
This function gives optimal result for ice-crushing, up to desired snowy level.
We recommend working by pressing the button in cycles of 2 seconds and repeating the operation until you obtain the desired result.
To crush ice cubes, put no more than 4 ice cubes at one time. If you wish to add more ice, pull out the measuring cup and insert the ice cubes consecutively.

CLEANING

Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
Never submerge the appliance in water or any other liquid or place it under running water.
During the cleaning process, take special care with the blades, as they are very sharp.
If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
The following pieces may be washed in a dishwasher (using a soft cleaning program) or soapy hot water:
- Jug
- Measuring cup
Do not place the lid into a dishwasher or boiling water, the lid may deform.
Then dry all parts before their assembly and storage.

EASY-CLEAN FUNCTION

Put water and a small amount of washing up liquid in the jar.
Select the function "EASY CLEAN" by pressing the button in cycles of 4 seconds and repeating the operation if necessary. (Fig. 2).

REMOVABLE BLADES FOR EFFECTIVE CLEANING

Loosen the set of blades using the measuring cup (A), placing the slots of the measuring cup in the lower part of the jar (Fig. 3) and turn the measuring cup to the right as indicated by the "unlock". (Fig. 4).
Remove the blade set and sealing ring and clean them. (Fig. 5).
After cleaning, replace the blade and turn the measuring cup to the left as indicated by the "lock". (Fig. 6).

SERVICE

Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

ANOMALIES AND REPAIR

Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

WARRANTY AND TECHNICAL ASSISTANCE

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: https://www.blackanddecker.eu// You can also request related information by contacting us. You can download this instruction manual and its updates at https://www.blackanddecker.eu//

FOR EU PRODUCT VERSIONS AND/OR IN THE CASE THAT IT IS REQUESTED IN YOUR COUNTRY

SAFETY ADVICE AND WARNINGS

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.
Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.
This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
Children should be supervised to ensure that they do not play with the appliance.
Misuse of this appliance can lead to potential injury. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.
Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses;
- by clients in hotels, motels and oth-er residential type environments;
- bed and breakfast type environ-ments.
Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
Connect the appliance to a mains socket rated at least 10 amperes.
The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
Do not use the appliance if the cable or plug is damaged.
If the appliance enclosure breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
Do not use the appliance if it has been dropped, if there are visible signs of damage or if it has a leak.
Do not pull on the supply cord. Never use the supply cord to lift up, carry or unplug the appliance.
Do not wrap the supply cord around the appliance.
Check the state of the supply cord. Damaged or tangled cables increase the risk of electric shock.
Do not touch the plug with wet hands.
The appliance must be used and placed on a flat, stable surface.
Do not place the appliance on hot surfaces, such as cooking plates, gas burners, ovens or similar.
Take care to avoid starting the appliance involuntarily.
Before using the appliance ensure that the blade is properly fixed in place.
Blades are sharp and could cause harm, be careful and avoid direct contact with the blades' cutting edges. Pay special attention when handling the blades, during assembly and disassembly operations and during cleaning.
Do not touch any of the appliance's moving parts while it is operating.
Exercise precaution after employing the stop operation on the appliance as the blade/s will continue moving from the effect of its own mechanical inertia.
Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.

USE AND CARE:

Fully unroll the appliance's supply cord before each use.
Do not use the appliance if its accessories are not properly fitted.
Do not use the appliance if the accessories attached to it are defective. Replace them immediately.
Do not use the appliance while the jug is empty.
Do not use the appliance if the on/off switch does not work.
Do not move the appliance while in use.
Use the appliance handle to catch it or move it.
Do not use the appliance if it is tipped up, and do not turn it over.
Do not turn the appliance over while it is in use or con-nected to the mains.
Do not force the appliance's work capacity.
Respect the MAX level indicator. (1500 ml).
When using hot liquids, do not fill the jug more than halfway. At all times, when mixing hot liquids in the jug, select the slowest speed on the speed selector.
Do not add hot or boiling foods in the jar to avoid possible burns and, in any case, prevent not filling the jar more than halfway. In addition, the sharp temperature contrast could break the jar.
Store this appliance out of reach of children and/or per-sons with physical, sensory or reduced mental or lack of experience and knowledge.
Keep the appliance in a dry, dust-free place, out of direct sunlight.
Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.
Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.
Use the appliance and its accessories and tools in ac-cordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation.
Never use boiling liquids.
Check that the lid is closed properly before starting the appliance.
Never leave the appliance unattended while in use.
Always hold the edge of the lid while operating the blender.
Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
Do not use the appliance for more than 2 minutes at a time. In case of operate in cycles; allow the appliance a resting period of at least 1 minute between each cycle. Under no circumstances should the appliance be operated for more time than necessary.
Do not blend dry, thick or heavy mixtures for more than 10 seconds continuously. Let the appliance cool down to room temperature before continue operating the appliance again.
Do not use the appliance with frozen goods or those containing bones.
After every max operation period, please let the appliance cool down to room temperature before continue operating the appliance again.
Do not use the appliance if the glass is cracked or broken.
