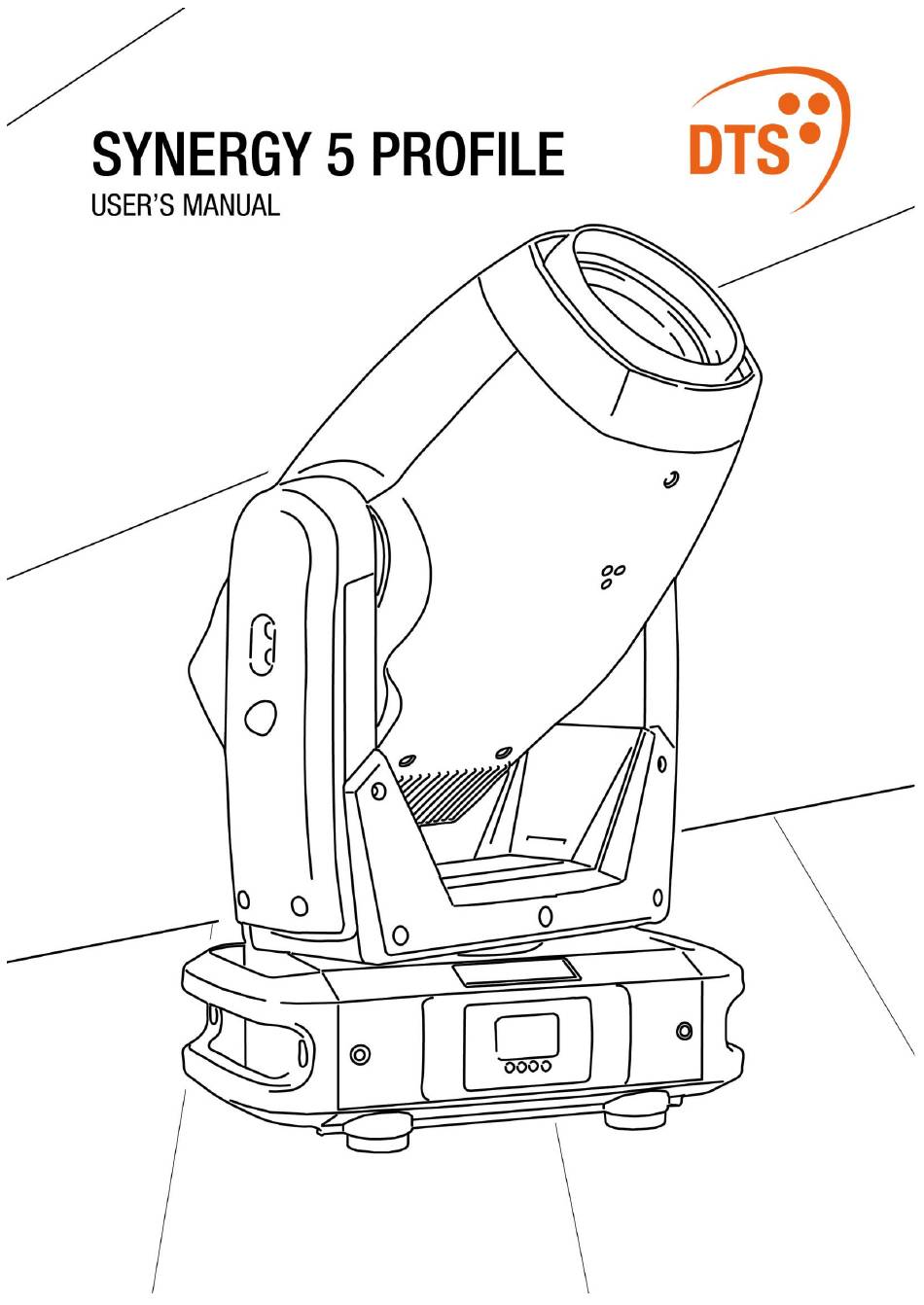

DTS SYNERGY 5 PROFILE User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SYNERGY 5 PROFILE and is the answer not in the manual?

Questions and answers

Related Manuals for DTS SYNERGY 5 PROFILE

Summary of Contents for DTS SYNERGY 5 PROFILE

  • Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.

  • Page 3: Table Of Contents

    INDEX: 1 - SYMBOLS ........................ 4 2 - GENERAL WARNING ..................... 5 3 - GENERAL WARRANTY CONDITIONS ..............5 4 - TECHNICAL FEATURES ..................6 5 - ACCESSORIES ....................... 8 6 - IMPORTANT SAFETY INFORMATION ..............9 6.1 Fire prevention...................... 9 6.2 Prevention of electric shock ..................

  • Page 4: Symbols

    1- SYMBOLS Graphic symbols used on this manual: THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL MEANS “SUITABLE FOR INDOOR USE ONLY” THIS SYMBOL INDICATES THE MAXIMUM OPERATING AMBIENT TEMPERATURE THIS SYMBOL INDICATES THE MINIMUM DISTANCE FROM THE OBJECTS AND THE PEOPLE LIT BY THE LIGHT BEAM...

  • Page 5: General Warning

    2- GENERAL WARNING Read the instruction contained in this user manual carefully, as they give important information regarding safety during installation, use and maintenance. The unit is not for household use and must be installed by a qualified electrician or experienced person.

  • Page 6: Technical Features

    Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd • LCD graphic display + 4 soft keys; Auto-flip; Key-lock function • Internal operating system updatable via DTS dongle firmware uploader • Li-Fe backup battery for controlling the display settings even when the unit is not...

  • Page 7: Pan And Tilt

    • 44 DMX channels (Default) • 53 DMX channels 16 bit index for insertion and rotation of each blade 16 bit index for blade system rotation PAN & TILT • Pan: 540°: 2.7 sec. • Tilt: 240°: 1.6 sec. • Tri-phase stepper motor technology •...

  • Page 8: Accessories

    (indicated for any kind of loads vertical / horizontal) • Professional Quick trigger clamp (Max load 100 Kg) (code 0521A037) (not indicated for horizontal load) • Safety cable 5 x 600 mm (Max load 60 Kg) (code 0521A038) • DTS Dongle firmware uploader (code 03.LA.206)

  • Page 9: Important Safety Information

    Unplug the unit prior to performing any function which involves touching the inside of the moving head. -The level of technology inherent in the SYNERGY 5 PROFILE requires the assistance of specialised personnel for all servicing. Please refer to an authorised DTS service centre.

  • Page 10: Level Of Protection Against The Penetration Of Solid And Liquid Objects

    6.4 Level of protection against the penetration of solid and liquid objects: -The projector is classified as an ordinary appliance and its protection level against the penetration of solid and liquid objects is IP20. Suitable for indoor use only. 6.5 Waste Electrical and Electronic Equipment (WEEE) directive: - The projector, accessories and packaging should be sorted for environmental-friendly recycling.

  • Page 11: Ez-Shell

    7- EZ-SHELL How to reuse SYNERGY’s foam shell: 1) Open 2) Extract cover 3) Extract SYNERGY and accessories and EZ-shell 5) Don’t forget to recycle 4) Each flight case can contain 2 units and their EZ-shell PLASTIC PAPER...

  • Page 12: Pan / Tilt Lock

    8- PAN / TILT LOCK When moving or servicing the unit you can apply the Pan and Tilt lock. To lock or release the Pan and Tilt refer to the picture below. 9- VOLTAGE AND FREQUENCY SYNERGY 5 PROFILE operates at 100-277Vac 50-60 Hz.

  • Page 13: Installation

    SYNERGY 5 PROFILE is moving. Four 1/4 turn Fast Locks connections placed in the base of the unit allow to hang the SYNERGY 5 PROFILE by using two Omega brackets (provided in the box) in conjunction with Aliscaf clamp (available on demand).

  • Page 14: Safety Cable

    10.1- Safety cable A safety cable must be securely fixed to the SYNERGY 5 PROFILE and to the suspension truss in order to avoid the fixture accidentally falling should the main fixing point fail. Make sure that the safety cable or chain can bear the weight of the entire unit.

  • Page 15: Protection Against Liquids

    10.2 Protection against liquids The projector contains electric and electronic components which should under no circumstances come into contact with oil, water or any other liquid. The proper unit functioning would be compromised should this occur. 10.3- Movement Pan: 540° rotation ; Tilt: 240° rotation. Do not place any object in the path of the projector’s movement.

  • Page 16: Mains Connection

    11- MAINS CONNECTION SYNERGY 5 PROFILE operates at 100-277Vac 50-60 Hz. Prior to connecting the unit to your mains supply, ensure that the model in your possession correctly matches the mains supply available. For connection purposes, ensure that your plug is capable of supporting 3 amps at 230Vac or 6,5 amps at 100Vac each unit connected.

  • Page 17: Dmx Signal Connection

    12- DMX SIGNAL CONNECTION The unit operates using the digital DMX 512 signal. Connection between the mixer and the projector or between projectors must be carried out using a two pair screened ø 0.5 mm cable and a XLR 5 or 3 pins connector. Ensure that the conductors do not touch each other.

  • Page 18: Dmx Addresses

    12.1-DMX Addresses SYNERGY 5 PROFILE can be controlled with 44 DMX channels (Default) or 53 DMX channels. In order to use the unit in 44 DMX channels mode (Default), set the following addresses on the mixer: Projector 1 A001 If you want to select the next projector, just add “44”...

  • Page 19: Art-Net / Sacn Signal Connection

    13- Art-Net / sACN SIGNAL CONNECTION The unit operates using the Art-Net / sACN signal. Connection between the mixer and the projector must be carried out using a category 5 network cable and a standard RJ45 connector. 13.1-Direct Ethernet operation sACN protocol has been implemented since Motors firmware release 22 and will only work from this release on.

  • Page 20: Ethernet To Rdm/Dmx Operation

    13.2-Ethernet to RDM/DMX operation DMX Out by Art-Net has been implemented since Motors firmware release 22 and will only work from this release on. RDM/DMX Out by Art-Net has been implemented since Motors firmware release 24 and will only work from this release on. For Ethernet to RDM/DMX operation connect the mixer Art-Net / sACN signal via Ethernet switch to the etherCON RJ45 input connector of the first unit only.

  • Page 21: Rdm Functions

    Updating the firmware release. Please follow the procedure below to perform the update: 1. Connect the DTS Dongle Firmware Uploader to a spare USB port on the PC. 2. Connect the unit DMX input to the DTS Dongle Firmware Uploader DMX output with a standard DMX cable and turn ON the unit.

  • Page 22: Rotating Framing System

    For more information please refer to an authorised DTS service centre. 16- ROTATING FRAMING SYSTEM 17- DISPLAY FUNCTIONS...
  • Page 23 Changing the DTS setting can vary the functions of the unit so that it does not respond to the DMX 512 used to control it. Carefully follow the instructions below before carrying out any variations or selections.
  • Page 24 17- DISPLAY FUNCTIONS Network NETWORK NETWORK INPUT This menu allows to select the input control signal protocol. MENU ENTER DOWN RDM/DMX 512 (Default), Art-Net or sACN protocol. NETWORK INPUT IP ADDRESS MODE DMX512 - ARTNET - SACN DMX512 This menu allows to select the mode to set the IP address and the Net Mask.
  • Page 25 17- DISPLAY FUNCTIONS Network NETWORK ARTNET UNIVERSE This menu allows to set the Art-Net Universe (range 0 ÷ 32767). SACN UNIVERSE This menu allows to set the sACN Universe (range 1 ÷ 63999). Pan movement Pan Direction Menu Up-Down Normal or Reverse Default = Normal PAN DIRECTION This menu allows to set...
  • Page 26 17- DISPLAY FUNCTIONS Pan Speed control (1-4) SPEED Speed Menu Up-Down Default = 2 PAN SPEED Pan Speed control (1-4) MENU ENTER DOWN TILT SPEED SPEED Tilt Speed control (1-4) Tilt Speed control (1-4) Default = 2 TILT ZOOM SPEED Zoom Speed control (1-4) MENU ENTER DOWN BLADE SPEED...
  • Page 27 17- DISPLAY FUNCTIONS DISPLAY Display Display Flip AUTO (Default) DISPLAY FLIP / STAND BY / CONTRAST FLIP ON THE GROUND FLIP SUSPENDED Display Flip: AUTO Reverses display's reading depending on the mounting position MENU ENTER DOWN (Automatic, on the ground or suspended). DISPLAY Display Standby Display Standby:...
  • Page 28 17- DISPLAY FUNCTIONS No DMX Action NO DMX ACTION This menu allows to set the desired unit’s behavior in case DMX signal is missing or not available. MENU ENTER DOWN KEEP LAST DMX Keep last valid DMX signal. PROGRAM 48 pre-programmed steps. Speed time values (range 0.5x - 3x) selectable by user (default 1x).
  • Page 29 17- DISPLAY FUNCTIONS ON = Default Gobo Rotation GOBO ROTATION Gobo rotation during gobo scrolling for rotating gobo wheel FOCUS EXCURSION Focus STANDARD = standard Focus range (Default). FOCUS EXCURSION EXTENDED = extended This menu allows to select the standard Focus range.
  • Page 30 17- DISPLAY FUNCTIONS System Info SYSTEM INFO SOFTWARE Unit model; Software release date; Motors boards and LED Driver board software version. TEMPERATURES LED temperature monitoring. DRV-1 = White1 and White 2 outputs of LED Driver board temperature monitoring. DRV-2 = White 3 and White 4 outputs of LED Driver board temperature monitoring.

  • Page 31: Lock Detector

    17- DISPLAY FUNCTIONS Pan Lock = Lock the Pan Reserved to the desired value RESERVED Tilt Lock = Lock the Tilt (Enter code = 100) to the desired value Pan lock-Tilt lock Pan Free = Remove power to Pan motor Pan free-Tilt free Tilt Free = Remove power Lock Detector...

  • Page 32: Manual Control

    17- DISPLAY FUNCTIONS Default DEFAULT To restore factory settings Manual control Menu Up-Down ENTER ENTER Up-Down MANUAL CONTROL Manual mode with functions value selectable by user MENU ENTER DOWN RESET To reset head motors only, Pan and Tilt or all motors RESTORE DEFAULT To restore parameters default settings 44 CH DMX MODE...

  • Page 33: Opening The Projector Housing

    18- OPENING THE PROJECTOR HOUSING It is possible to inspect the inside of the projector by removing the cover as indicated below. ATTENTION REMOVE MAINS POWER PRIOR TO ACCESSING THE PROJECTOR’S INTERNAL COMPONENTS. 1) Using a flat bladed screwdriver loose the 3 “¼ turn” screws which fix the head covers on both sides.
  • Page 34 2) Lift each cover, slide the silicone tube down and unhook the safety wire to access the internal head components.

  • Page 35: Removing / Replacing The Rotating Gobos

    19- REMOVING / REPLACING THE ROTATING GOBOS SYNERGY 5 PROFILE uses a mechanical system which allows the fixture's gobos to be removed without the use of special tools. When replacing gobos, ensure that the projector is switched off. Open the projector housing as described on page 31 and pull out the gobo holder from...
  • Page 36 REPLACEMENT GOBOS Replacement gobos should be made in either dichroic glass or metal. Gobo dimensions are as follows: Rotating gobos ø external (ED) = 27.9 mm + 0 / - 0,1 mm ø of image (ID) = 21.0 mm thickness = from 0.2 to 2,2 mm (see catalogue) Max thickness 2,2 mm Coated side Coated...

  • Page 37: Periodic Cleaning

    Periodically check the lubrification of all components, particularly the parts subject to high temperatures. If necessary, lubrificate with suitable lubrificant, available from your DTS distributor. Check the tension of the belts and adjust it if necessary. Electrical components Check all electrical components for correct earthing and proper connection of all connectors, refastening if necessary.

  • Page 38: Dmx Protocol

    22- DMX PROTOCOL MOTORS FIRMWARE RELEASE RDM Device Model ID 0x0012 0x01 “44 CHANNELS” DMX Personality IDs 0x02 “53 CHANNELS” 44 CHANNELS MODE (DEFAULT) PAN msb PAN lsb TILT msb TILT lsb SPEED MOVEMENT reserved DIMMER msb DIMMER lsb SHUTTER COLOUR WHEEL COLOUR MODE CYAN...

  • Page 39: Dmx Channel

    DMX CHANNEL 1 Parameter: PAN msb DMX CHANNEL 2 Parameter: PAN lsb DMX CHANNEL 3 Parameter: TILT msb DMX CHANNEL 4 Parameter: TILT lsb DMX CHANNEL 5 Parameter: SPEED MOVEMENT DMX value Function 000-009 Fast movement 010-025 Standard movement 026-127 Vector mode from fast to slow 128-247 Variable time reaction to dmx signal (fast to slow)
  • Page 40 DMX CHANNEL 10 Parameter: COLOUR WHEEL FULL COLOUR (if channel 11 “COLOUR MODE” = DMX range value 0-63) DMX value Function 000-009 Open 010-049 Colour 1 050-089 Colour 2 090-129 Colour 3 130-169 Colour 4 170-209 Colour 5 210-255 Colour 6 HALF COLOUR (if channel 11 “COLOUR MODE”...
  • Page 41 DMX CHANNEL 14 Parameter: YELLOW DMX value Function 000-255 Proportional colour DMX CHANNEL 15 Parameter: CTO DMX value Function 000-255 Linear CTO from min to max DMX CHANNEL 16 Parameter: GEL FILTERS EMULATION DMX value Function 000-009 No function 010-020 19 FIRE 021-025 20 MEDIUM AMBER...
  • Page 42 DMX CHANNEL 18 Parameter: GOBO ROTATION/INDEX msb DMX CHANNEL 19 Parameter: GOBO ROTATION/INDEX lsb DMX value Function MSB.LSB- MSB.LSB INT16-INT16 000.000- 127.255 Proportional index 0°-360° 00000-32767 128.000- 180.255 CCW gobo rotation (max to min) 32768-46335 181.000- 202.255 Stop 46336-51967 203.000- 255.255 CW gobo rotation (min to max) 51968-65535...
  • Page 43 DMX CHANNEL 21 Parameter: BLADES SYSTEM ROTATION DMX value Function 000-126 Position from -45° to 0° 127-128 0° position 129-255 Position from 0° to 45° DMX CHANNEL 22 Parameter: BLADE 1 INSERTION DMX value Function 000-255 Open to fully inserted DMX CHANNEL 23 Parameter: BLADE 1 ROTATION DMX value Function...
  • Page 44 DMX CHANNEL 30 Parameter: BLADES EFFECTS DMX value Function DMX value Function 000-009 No function 110-111 Macro 51 010-011 Macro 1 112-113 Macro 52 012-013 Macro 2 114-115 Macro 53 014-015 Macro 3 116-117 Macro 54 016-017 Macro 4 118-119 Macro 55 018-019 Macro 5...
  • Page 45 DMX CHANNEL 31 Parameter: DYNAMOVES MACROS (Macros up to Macro 45 are replicated for future FX implemetation) Function Automatic channels (44 DMX channels mode) value 000-009 function CH 12; CH 13; CH 14; CH 15; CH 17; CH 18; CH 33; CH 34; CH 35; CH 36; 010-011 Macro 1 CH 37;...
  • Page 46 DMX CHANNEL 31 Parameter: DYNAMOVES MACROS (Macros up to Macro 45 are replicated for future FX implemetation) Function Automatic channels (44 DMX channels mode) value CH 12; CH 13; CH 14; CH 15; CH 17; CH 18; CH 22; CH 23; CH 24; CH 25; 052-053 Macro 22 CH 26;...
  • Page 47 (same as Macro 43) DMX CHANNEL 31 Parameter: DYNAMOVES MACROS (Macros up to Macro 45 are replicated for future FX implemetation) Function Automatic channels (44 DMX channels mode) value Macro 45 CH 10; CH 11; CH 17; CH 18; CH 33; CH 34; CH 35; CH 36; CH 37; CH 40; 098-099 (same as CH 41;...
  • Page 48 210-255 Prism 1+2 inserted between focus and zoom lenses DMX CHANNEL 34 Parameter: PRISM 1 POSITION DMX value Function 000-009 Centre 010-127 Outward left to centre 128-137 Centre 138-255 Centre to outward right DMX CHANNEL 35 Parameter: PRISM 1 ROTATION/INDEX DMX value Function 000-127...
  • Page 49 DMX CHANNEL 43 Parameter: FIXTURE CONTROL DMX value Function 000-009 0 - No effect 010-024 1 – SMOOTH DIMMING OFF 025-026 2 - SMOOTH DIMMING 1 027-028 3 - SMOOTH DIMMING 2 029-030 4 - SMOOTH DIMMING 3 031-032 5 - SMOOTH DIMMING 4 (DEFAULT) 033-034 6 - SMOOTH DIMMING 5 035-036...
  • Page 50 DMX CHANNEL 43 Parameter: FIXTURE CONTROL DMX value Function 41 - OUTPUT FREQUENCY 8500 Hz 42 - OUTPUT FREQUENCY 9000 Hz 43 - OUTPUT FREQUENCY 9500 Hz 44 - OUTPUT FREQUENCY 10000 Hz 45 - OUTPUT FREQUENCY 11000 Hz 46 - OUTPUT FREQUENCY 12000 Hz 47 - OUTPUT FREQUENCY 13000 Hz 48 - OUTPUT FREQUENCY 14000 Hz 49 - OUTPUT FREQUENCY 15000 Hz...
  • Page 51 -DISPLAY STANDBY = DISABLE -NO DMX ACTION = KEEP LAST DMX -FAN = SILENT MODE -ZOOM SPEED -AUTOFOCUS = OFF -FOCUS EXCURSION = STANDARD DMX CHANNEL 44 Parameter: RESET DMX value Function 000-009 No effect 010-075 PAN TILT reset 076-095 HEAD MOTORS reset 096-115 Gobo wheel reset...
  • Page 52 53 CHANNELS MODE PAN msb PAN lsb TILT msb TILT lsb SPEED MOVEMENT reserved DIMMER msb DIMMER lsb SHUTTER COLOUR WHEEL COLOUR MODE CYAN MAGENTA YELLOW GEL FILTERS EMULATION GOBO GOBO ROTATION/INDEX msb GOBO ROTATION/INDEX lsb GOBO SHAKE BLADES SYSTEM ROTATION msb BLADES SYSTEM ROTATION lsb BLADE 1 INSERTION msb BLADE 1 INSERTION lsb...
  • Page 53 RESET DMX CHANNEL 1 Parameter: PAN msb DMX CHANNEL 2 Parameter: PAN lsb DMX CHANNEL 3 Parameter: TILT msb DMX CHANNEL 4 Parameter: TILT lsb DMX CHANNEL 5 Parameter: SPEED MOVEMENT DMX value Function 000-009 Fast movement 010-025 Standard movement 026-127 Vector mode from fast to slow 128-247...
  • Page 54 DMX CHANNEL 10 Parameter: COLOUR WHEEL FULL COLOUR (if channel 11 “COLOUR MODE” = DMX range value 0-63) DMX value Function 000-009 Open 010-049 Colour 1 050-089 Colour 2 090-129 Colour 3 130-169 Colour 4 170-209 Colour 5 210-255 Colour 6 HALF COLOUR (if channel 11 “COLOUR MODE”...
  • Page 55 DMX CHANNEL 14 Parameter: YELLOW DMX value Function 000-255 Proportional colour DMX CHANNEL 15 Parameter: CTO DMX value Function 000-255 Linear CTO from min to max DMX CHANNEL 16 Parameter: GEL FILTERS EMULATION DMX value Function 000-009 No function 010-020 19 FIRE 021-025 20 MEDIUM AMBER...
  • Page 56 DMX CHANNEL 18 Parameter: GOBO ROTATION/INDEX msb DMX CHANNEL 19 Parameter: GOBO ROTATION/INDEX lsb DMX value Function MSB.LSB- MSB.LSB INT16-INT16 000.000- 127.255 Proportional index 0°-360° 00000-32767 128.000- 180.255 CCW gobo rotation (max to min) 32768-46335 181.000- 202.255 Stop 46336-51967 203.000- 255.255 CW gobo rotation (min to max) 51968-65535...
  • Page 57 DMX CHANNEL 21 Parameter: BLADES SYSTEM ROTATION msb DMX CHANNEL 22 Parameter: BLADES SYSTEM ROTATION lsb DMX value Function 000/000- 126/255 Position from -45° to 0° 00000-32511 127/000- 128/255 0° position 32512-33023 129/000- 255/255 Position from 0° to 45° 33024-65535 DMX CHANNEL 23 Parameter: BLADE 1 INSERTION msb DMX CHANNEL 24 Parameter: BLADE 1 INSERTION lsb DMX value...
  • Page 58 DMX CHANNEL 31 Parameter: BLADE 3 INSERTION msb DMX CHANNEL 32 Parameter: BLADE 3 INSERTION lsb DMX value Function 000/000- 255/255 Open to fully inserted 00000-65535 DMX CHANNEL 33 Parameter: BLADE 3 ROTATION msb DMX CHANNEL 34 Parameter: BLADE 3 ROTATION lsb DMX value Function 000/000-...
  • Page 59 DMX CHANNEL 39 Parameter: BLADES EFFECTS DMX value Function DMX value Function 000-009 No function 110-111 Macro 51 010-011 Macro 1 112-113 Macro 52 012-013 Macro 2 114-115 Macro 53 014-015 Macro 3 116-117 Macro 54 016-017 Macro 4 118-119 Macro 55 018-019 Macro 5...
  • Page 60 DMX CHANNEL 40 Parameter: DYNAMOVES MACROS (Macros up to Macro 45 are replicated for future FX implemetation) Function Automatic channels (53 DMX channels mode) value 000-009 function CH 12; CH 13; CH 14; CH 15; CH 17; CH 18; CH 42; CH 43; CH 44; CH 45; 010-011 Macro 1 CH 46;...
  • Page 61 DMX CHANNEL 40 Parameter: DYNAMOVES MACROS (Macros up to Macro 45 are replicated for future FX implemetation) Function Automatic channels (53 DMX channels mode) value CH 12; CH 13; CH 14; CH 15; CH 17; CH 18; CH 23; CH 24; CH 25; CH 26; 052-053 Macro 22 CH 27;...
  • Page 62 DMX CHANNEL 40 Parameter: DYNAMOVES MACROS (Macros up to Macro 45 are replicated for future FX implemetation) Function Automatic channels (53 DMX channels mode) value CH 10; CH 11; CH 17; CH 18; CH 42; CH 43; CH 44; CH 45; CH 46; CH 49; 094-095 Macro 43 CH 50;...
  • Page 63 230-239 0.2X 240-255 0.1X DMX CHANNEL 42 Parameter: PRISM MODE DMX value Function 000-009 No function 010-049 Prism 1 inserted after zoom lens 050-089 Prism 2 inserted after zoom lens 090-129 Prism 1+2 inserted after zoom lens 130-169 Prism 1 inserted between focus and zoom lenses 170-209 Prism 2 inserted...
  • Page 64 DMX CHANNEL 51 Parameter: ZOOM DMX value Function 000-255 Linear zoom DMX CHANNEL 52 Parameter: FIXTURE CONTROL DMX value Function 000-009 0 - No effect 010-024 1 – SMOOTH DIMMING OFF 025-026 2 - SMOOTH DIMMING 1 027-028 3 - SMOOTH DIMMING 2 029-030 4 - SMOOTH DIMMING 3 031-032...
  • Page 65 DMX CHANNEL 52 Parameter: FIXTURE CONTROL DMX value Function 41 - OUTPUT FREQUENCY 8500 Hz 42 - OUTPUT FREQUENCY 9000 Hz 43 - OUTPUT FREQUENCY 9500 Hz 44 - OUTPUT FREQUENCY 10000 Hz 45 - OUTPUT FREQUENCY 11000 Hz 46 - OUTPUT FREQUENCY 12000 Hz 47 - OUTPUT FREQUENCY 13000 Hz 48 - OUTPUT FREQUENCY 14000 Hz 49 - OUTPUT FREQUENCY 15000 Hz...
  • Page 66 -NO DMX ACTION = KEEP LAST DMX -FAN = SILENT MODE -ZOOM SPEED -AUTOFOCUS = OFF -FOCUS EXCURSION = STANDARD DMX CHANNEL 53 Parameter: RESET DMX value Function 000-009 No effect 010-075 PAN TILT reset 076-095 HEAD MOTORS reset 096-115 Gobo wheel reset 116-135 Colour wheel reset...

  • Page 67: Rotating Gobo Wheel

    23- ROTATING GOBO WHEEL Rotating gobos need to be installed by following the references shown in the picture below to have a properly indexing: Each gobo must be mounted into its gobo holder by keeping the notch on the edge towards the gobo holder magnet.
