Summary of Contents for DTS DELTA 10 F

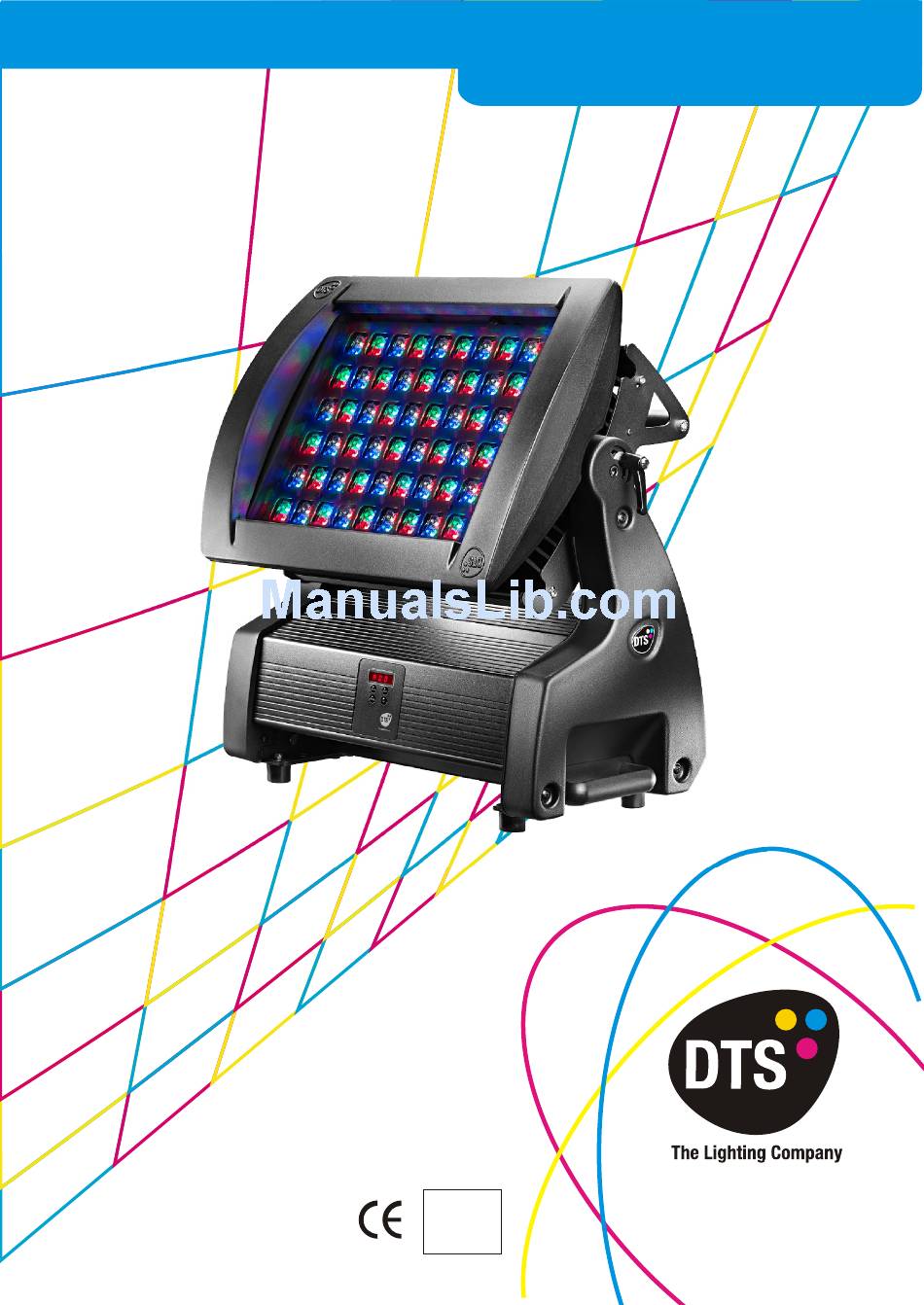

- Page 1 DELTA 10 F 03.LDF004.T12 03.LDF004.T25 03.LDF004.T45 03.LDF004.T12.WS 03.LDF004.T25.WS 03.LDF004.T45.WS User’s Manual rel 1.3 D.T.S. Illuminazione srl - ITALY http://www.dts-lighting.it Made in Italy IP65...
- Page 2 D.T.S . DTS si riserva il diritto di apportare senza preavviso cambiamenti e modifiche estetiche , funzionali o di design a ciascun proprio prodotto. D.T.S non assume alcuna responsabilità sull’uso o sull’applicazione dei prodotti o dei circuiti descritti.
-
Page 3: Table Of Contents
DELTA 10 F INDEX: 1- SYMBOLS 2- GENERAL WARNING 3- GENERAL WARRANTY CONDITION 4- TECHNICAL FEATURES 5- ACCESSORIES 6- IMPORTANT SAFETY INFORMATION 6.1 Fire prevention 6.2 Prevention of electric shock 6.3 Protection against direct light radiation 6.4 Safety 6.5 Level of protection against the penetration of solid and liquid matter... -
Page 4: General Warranty Conditions
DELTA 10 F 1- SYMBOLS Graphic symbols used on this manual THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL MEANS “DO NOT PLACE THE UNIT ON INFLAMMABLE SURFACES” THIS SYMBOL INDICATES THE MINIMUM DISTANCE TO... -
Page 5: Technical Features
DELTA 10 F 4- TECHNICAL FEATURES DELTA 10 F RGBW is a new colour changer with LED technology, with a high protection rating (IP65), ideal for use both indoors and outdoors. DELTA 10 F RGBW is the brightest LED colour changer in its category: 8.300 Lux at 5 m. -
Page 6: Accessories
DELTA 10 F 4- TECHNICAL FEATURES Power supply / consumption Full range AC 90-260V, 50-60Hz Power consumption: * 90 V – 5,3 A – 480 W * 120 V – 4 A – 480 W * 230 V – 2,1 A – 480 W * 260 V – 1,85 A – 480 W Thermal Operating ambient temperature: -10°... -
Page 7: Important Safety Information
-High voltage is present inside the unit. Isolate the projector from the mains supply prior to performing any function which involves touching the inside of the unit. -The level of technology inherent in the DELTA 10 F requires the assistance of specialised personnel for all servicing.Please refer to an authorised D.T.S. service centre. -
Page 8: Voltage And Frequency
8.1 Safety cable: We recommend the use of a safety cable or chain connected to the Delta 10 F and to the suspension truss in order to avoid the fixture accidentally falling should the main fixing point fail. Make sure that the iron cable or chain can bear the weight of the entire unit. -
Page 9: Mains Connection
Panel connector for external WIRELESS DMX Antenna external WIRELESS DMX Antenna 9.1 Protection: The use of a thermal magnetic circuit breaker is recommended for each Delta 10 F. A good earth connection is essential for the correct operation of the projector... -
Page 10: Dmx Signal Connection
PIN 3 120 ohm PIN 2 Please note that the XLR connectors installed on the DELTA 10 F have an IP20 protection rate. Thus, for any application where an IP65 rate is needed, the XLR connectors must be protected within an IP65-rated container. -
Page 11: Firmware Updating
DELTA 10 F 10.1 DMX Addresses: DELTA 10 F can be used in 3 different DMX modes: 10 DMX control channels, 6 DMX control channels or CUSTOM mode channels. Here below is described the DMX channels addressing for the controller when Delta 10 f is set to... -
Page 12: Display Functions
DOWN DISPLAY FUNCTIONS The DELTA 10 F display panel shows all the available functions . Using these functions, it is possible to change some of the parameters and add some functions. Changing the D.T.S. setting can vary the functions of the unit so that it does not respond to the DMX 512 signal used to control it. - Page 13 DELTA 10 F Default = 0 ENTER Up-Down ENTER Up-Down MENU ENTER Up-Down Default = 100 RGBA Min/Max, Smooth, Compression ENTER level values settings and Boost mode Up-Down Default = 0 RGBA MINIMUM VALUES ENTER Up-Down ENTER This menu allow to select the...
- Page 14 DELTA 10 F Up-Down MENU ENTER Up-Down ENTER ENTER ENTER Up-Down AUTOMATIC MODE Automatic demo game without DMX controller WHITE MACROS 16 macros for White color from 2000 to 7200 ° K DIMMER Dimmer level selectable by user as on DMX channel 2 (Dimmer)
- Page 15 Logging out all Delta 10 F linked to a transmitter Press and hold the function button of the transmitter for about 3 seconds. When the display is blinking on Delta 10 F, it mean that the units are logged out.
- Page 16 DELTA 10 F Up-Down MENU ENTER Up-Down ENTER ENTER Up-Down EMERGENCY Default = OFF Emergency operating mode. By setting Emergency mode, it will be possible to select one of Default = White 1 the 16 preprogrammed WHITE ENTER cues that will then ran if DMX signal is missing or not available.
-
Page 17: Automatic Operation
13-AUTOMATIC OPERATION (AUTO) DELTA 10 F can work in automatic mode without a DMX controller. First of all connect the projectors with a DMX cable (picture below). A maximum quantity of 32 slave units can be connected to the same Master unit. -
Page 18: 13.3 Rec Mode
DELTA 10 F 13.3 Rec mode It is possible to program your own game on DELTA 10 F that will then run it in AUTO mode (ChPr). Each unit can have its own programmed game. In REC mode the unit must be set to 10 channels mode. -
Page 19: Periodic Cleaning
Check all electrical components for correct earthing and proper attachment of all connectors, refastening if necessary. Fuse replacement: Locate the fuse, which protect the electronics, in the base of the DELTA 10 F. Using a multimeter, test the condition of the fuse, replacing it with one of equivalent type if necessary. -
Page 20: Replacing The Lenses
DELTA 10 F 16- REPLACING THE LENSES Spot (12°) as standard not to be removed, Medium flood (25°), Wide flood (45°), Elliptical (15° x 45°) • Lenses set Medium flood (25°) (cod. 03.LK.064) • Lenses set Wide flood (45°) (cod. 03.LK.065) •... -
Page 21: Dmx Protocol
DELTA 10 F 17-DMX PROTOCOL 10 CHANNELS MODE (Default) SHUTTER DIMMER GREEN BLUE AMBER WHITE (Pre-programmed whites at different colour temperatures) COLOURS MACRO FUNCTIONS DMX CHANNEL SHUTTER Parameter: Move DMX range Mid point Mode Option Function range Value DMX value... - Page 22 DELTA 10 F GREEN Parameter: DMX CHANNEL Move DMX range Mid point Mode Option Function range Value DMX value (degrees) 0-255 Proportional colour BLUE Parameter: DMX CHANNEL Move DMX range Mid point Mode Option Function range Value DMX value (degrees)
- Page 23 DELTA R DELTA 10 F CTC (Color temperature correction) DMX CHANNEL Parameter: Move DMX range Mid point Mode Option Function range Value DMX value (degrees) IF CHANNEL 7 (White) = WHITE CTC (Dmx range value 206 - 255) 0-255 43 color temp. Correction Macros: 0 = 2000°K / 128 = 5500°K / 255 = 7200°K...
- Page 24 DELTA 10 F COLOUR MACROS DMX CHANNEL Parameter: PLEASE CHECK PAGE 12 MENU Up-Down ENTER Up-Down ENTER Up-Down ENTER Move DMX range Mid point range Mode Option Function Value DMX value (degrees) No Function 0-14 15-22 Macro 1 23-30 Macro 2...
- Page 25 DELTA 10 F 6 CHANNELS MODE SHUTTER DIMMER GREEN BLUE AMBER DMX CHANNEL SHUTTER Parameter: Move DMX range Mid point range Mode Option Function Value DMX value (degrees) Black-out Open 10-19 20-29 Black-out 30-119 Strobe at variable speed from slow to fast (3400ms-20ms)
- Page 26 DELTA 10 F GREEN Parameter: DMX CHANNEL Move DMX range Mid point Mode Option Function range Value DMX value (degrees) 0-255 Proportional colour BLUE Parameter: DMX CHANNEL Move DMX range Mid point Mode Option Function range Value DMX value (degrees)
- Page 27 DELTA 10 F NOTE...
- Page 28 ISO 9001:2008 standard D.T.S. products are designed and manufactured at the D.T.S. plants in italy *0517I167* 0517I167 D.T.S. Illuminazione s.r.l - Via Fagnano Selve 10-12-14 47843 - Misano Adriatico (RN) Italy Tel. +39 0541 611131 Fax +39 0541 611111 info@dts-lighting.it www.dts-lighting.it...
