Overload protection

This protection works when the tool is operated in a
manner that causes it to draw an abnormally high cur-
rent. In this situation, turn the tool off and stop the appli-
cation that caused the tool to become overloaded. Then
turn the tool on to restart.

Overheat protection

When the tool is overheated, the tool stops automati-
cally and the lamps blink. In this situation, let the tool
and battery cool before turning the tool on again.

Overdischarge protection

This protection works when the remaining battery
capacity gets low. In this situation, remove the battery
from the tool and charge the battery.
Protections against other causes
Protection system is also designed for other causes
that could damage the tool and allows the tool to stop
automatically. Take all the following steps to clear the
causes, when the tool has been brought to a temporary
halt or stop in operation.
1. Make sure that all switch(es) is/are in the off posi-
tion, and then turn the tool on again to restart.
2. Charge the battery(ies) or replace it/them with
recharged battery(ies).
3. Let the tool and battery(ies) cool down.
If no improvement can be found by restoring protection
system, then contact your local Makita Service Center.
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.

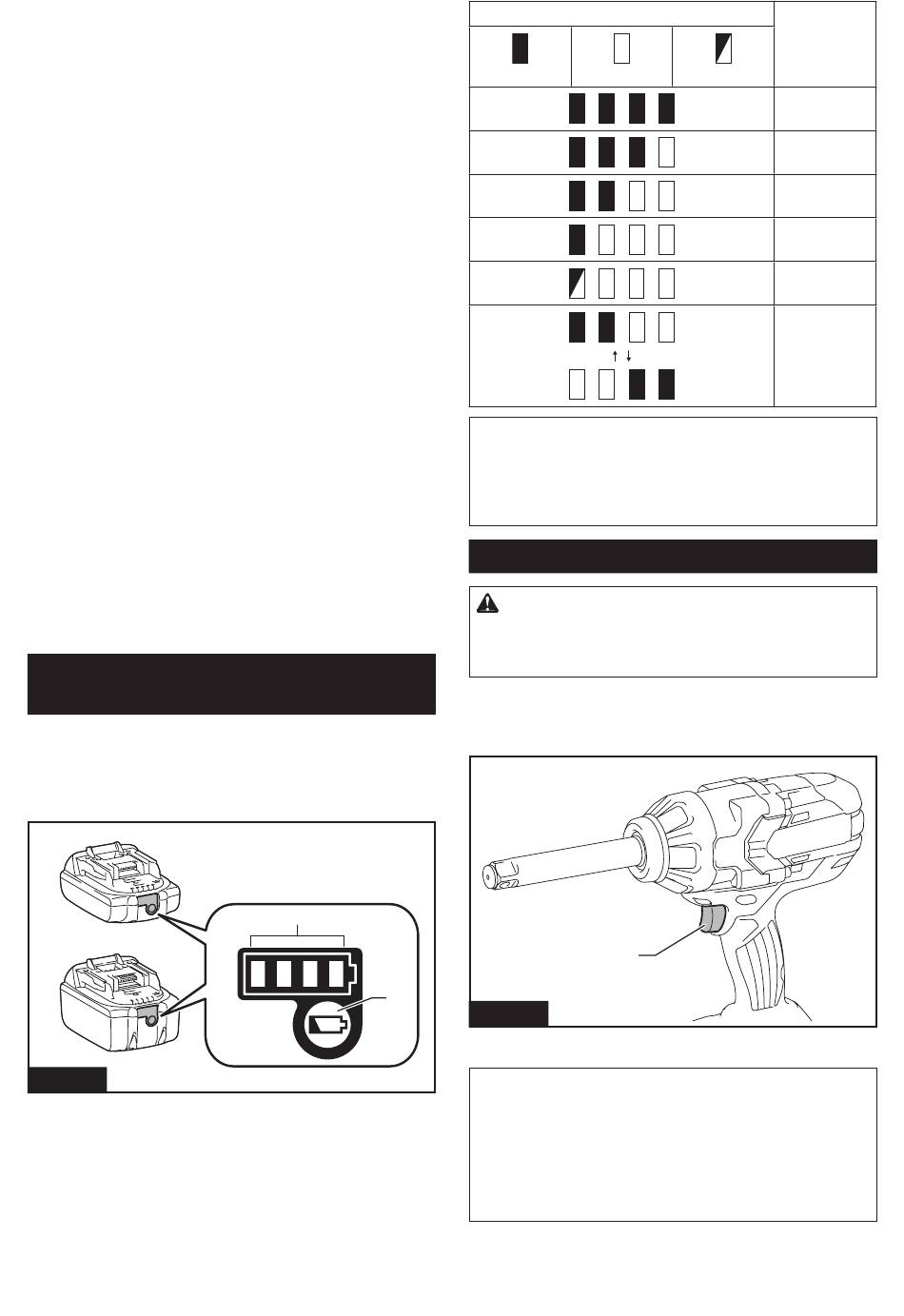

Fig.2
► 1 . Indicator lamps 2. Check button
1
2
7 ENGLISH
Indicator lamps
Lighted Off
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may differ slightly
from the actual capacity.
NOTE: The first (far left) indicator lamp will blink when
the battery protection system works.
Switch action
CAUTION:
Before installing the battery car-
tridge into the tool, always check to see that the
switch trigger actuates properly and returns to
the "OFF" position when released.
To start the tool, simply pull the switch trigger. Tool
speed is increased by increasing pressure on the switch
trigger. Release the switch trigger to stop.
1
Fig.3
► 1 . Switch trigger
NOTE: The tool automatically stops when you keep
pulling the switch trigger for about 6 minutes.
NOTE: When full speed mode is turned on, the rota-
tion speed becomes fastest even if you do not pull the
switch trigger fully.
For detailed information, refer to the section of full
speed mode.
Remaining
capacity
Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
