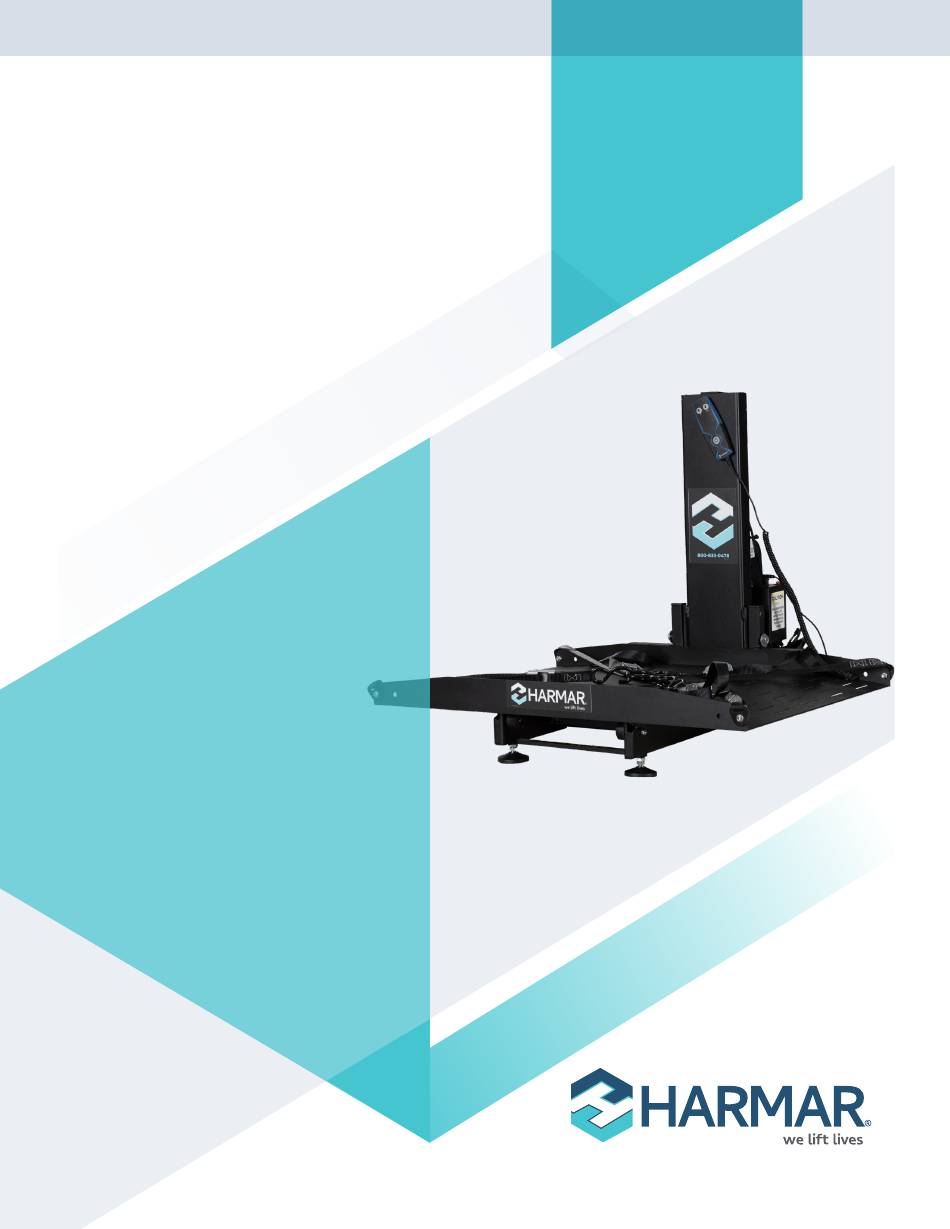

  • Page 1 AL600/AL690 HYBRID LIFTS OWNER’S MANUAL 17MAR25 | 610-00107-A...
  • Page 2 THANK YOU From all of us at Harmar, thank you for placing your trust in our products and allowing us to be a part of your journey. For more than 20 years we have been committed to building products that help you maintain independence. With a drive to empower people to live as they choose, Harmar Lifts Lives.

  • Page 3: Table Of Contents

    Read and Understand ..........6 Technical Specifications ..........6 OPERATION ............... 7 AL600: Loading and Securing a Mobility Device ..7 Lowering the Lift Platform ........7 Driving the Mobility Device onto the Platform ..7 Securing the Mobility Device ......8 AL690: Loading and Securing a Mobility Device ..

  • Page 4: Safety

    HYBRID VEHICLE LIFTS: SECTION 1 SAFETY SECTION 1 SAFETY SAFETY DEFINITIONS Consider the following general information when using your lift. Specifics may vary based on your chair model and lift combination. This safety alert symbol appears with safety statements. It means attention, Always make certain your lift is fully deployed and become alert, your safety and the flush with the ground prior to loading your mobility...
  • Page 5 HYBRID VEHICLE LIFTS: SECTION 1 SAFETY WARNING WARNING This lift is NOT meant for human transport. The Beware of Pinch Points. These are chair or scooter MUST be unoccupied before areas of moving parts that can catch operating the lift. Each lift is designed to transport extremities or clothing.

  • Page 6: Introduction

    READ AND UNDERSTAND This manual provides instructions for proper use and maintenance of your AL600 / AL690 Hybrid Vehicle Lift. Any alterations to the equipment without written authorization by the manufacturer is prohibited and will void the warranty.

  • Page 7: Operation

    HYBRID VEHICLE LIFTS: SECTION 2 INTRODUCTION SECTION 3 OPERATION AL600: DRIVING THE MOBILITY DEVICE LOADING AND SECURING ONTO THE PLATFORM A MOBILITY DEVICE 1. Determine heaviest portion of the power chair or scooter. This is usually under the drive wheels, motor(s), and batteries. Always drive...

  • Page 8: Securing The Mobility Device

    SECURING THE MOBILITY DEVICE key-fob controller, to raise and retract the platform into the stowed/travel position. 1. Each corner of the AL600 platform has a See Figure 3-5. restraint attached, with a hook on the end. Place each hook in either the anchor plate slot or in each U-bolt.

  • Page 9: Al690: Loading And Securing A Mobility Device

    HYBRID VEHICLE LIFTS: SECTION 3 OPERATION AL690: LOADING AND SECURING A MOBILITY DEVICE LOWERING THE LIFT PLATFORM Using the wired hand control or optional wireless key-fob controller, lower the lift platform until it reaches the ground and becomes level. Figure 3-8 1.
  • Page 10 HYBRID VEHICLE LIFTS: SECTION 3 OPERATION 3. If your chair has a folding seat back, you may 6. The wired hand control comes equipped with a want to place it in the down position for easier magnetic back. Once the platform is completely clearance when loading the chair into the stowed in the vehicle, simply attach the wired vehicle.

  • Page 11: Safety & Maintenance

    HYBRID VEHICLE LIFTS: SECTION 3 OPERATION SECTION 4 SAFETY & MAINTENANCE Except as described elsewhere in this manual, • Check for paint chips and touch up bare metal. maintenance must be performed only by qualified Use a good black enamel or lacquer to inhibit technicians.

  • Page 12: Year Limited Warranty

    PRODUCTS COVERED: AL600 / AL690 MODELS The lift came with a separate warranty form on page Harmar Mobility warrants to the original purchaser of the 13. To register the lift, the warranty form must be vehicle lift manufactured by Harmar to be free of defects returned within ten (10) days of installation.
  • Page 13 HYBRID VEHICLE LIFTS: SECTION 7 WARRANTY PLEASE FILL OUT ALL FIELDS AND RETURN WITHIN TEN (10) DAYS OF PRODUCT INSTALLATION. Fax completed form to 1-866-234-5680 or mail to: Harmar, ATTN Warranty Department, 1500 Independence Blvd. Suite 220, Sarasota Florida 34234. PRODUCT INFORMATION PURCHASER INFORMATION Model:...
  • Page 14 HYBRID VEHICLE LIFTS: SECTION 7 WARRANTY Page Intentionally Left Blank Owner’s Manual HYBRID LIFTS:...
  • Page 15 NOTES Owner’s Manual HYBRID LIFTS: 17MAR25 | 610-00107-A...
  • Page 16 NOTES Owner’s Manual HYBRID LIFTS:...
  • Page 17 NOTES Owner’s Manual HYBRID LIFTS: 17MAR25 | 610-00107-A...
  • Page 18 1500 Independence Blvd., Suite 220 Sarasota, FL 34234 800-833-0478 www.harmar.com...
