Harmar Mobility AL001 Installation & Owner's Manual
Universal manual carrier
Hide thumbs
Also See for AL001:
- Installation and owner's manual (10 pages) ,
- Owner's manual (20 pages)
Related Manuals for Harmar Mobility AL001
Summary of Contents for Harmar Mobility AL001
- Page 1 AL001 UNIVERSAL MANUAL CARRIER INSTALLATION/ OWNER'S MANUAL 25SEP2020 | 630-00095 REV B...
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS SAFETY .................... 4 Safety Definition ..........4 INTRODUCTION ................5 Device Name: AL001 ........... 5 Read and Understand .......... 5 Technical Specifications ........5 Lift Elements ............6 PREPARATION ................7 Required Tools ............ 7 INSTALLATION ................ -
Page 4: Safety
AL001: SECTION 1 SAFETY SECTION 1 SAFETY SAFETY DEFINITIONS This safety alert symbol appears with safety statements. It means attention, become alert, your safety and the safety of others are involved! Please read and abide by the message that follows the safety alert symbol. -
Page 5: Introduction
INTRODUCTION SECTION 2 INTRODUCTION DEVICE NAME: AL001 Indications of Use: The intended use of the AL001 is to lift, secure and transport an unoccupied mobility device for patients or mobility-impaired persons. READ AND UNDERSTAND Read and understand this manual prior to installation. -

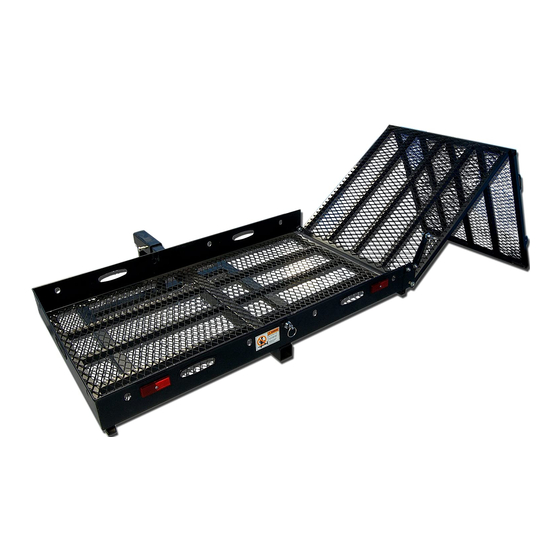

Page 6: Lift Elements
AL001: SECTION 2 INTRODUCTION LIFT ELEMENTS Ramp Ramp bolt sets (2) Carriage bolt sets (2) Ramp bracket Spring pull pin (2) Reflector (2) Carrier tray Gear Hitch pin 10. M12x70 bolt 11. Adjust bolt 12. M10x30 bolt (3) 13. Anti-tilt lock bracket 14. -
Page 7: Preparation
AL001: SECTION 3 PREPARATION SECTION 3 PREPARATION If you have any questions, concerns or comments, please contact our Technical Service Department at 800-833-0478 or tech@harmar.com. REQUIRED TOOLS Wrench Set: • Imperial • Metric • No. 2 Phillips Head Screwdriver •... -
Page 8: Installation
AL001: SECTION 4 INSTALLATION SECTION 4 INSTALLATION 1. Insert the hitch into the carrier rack. 3. Screw spring pull pin into carrier. Add See Figure 4-1. reflectors. See Figure 4-3. Figure 4-3 4. Screw spring pull pin into jam nut. Screw spring pull pin into ramp bracket. -
Page 9: Anti-Tilt Locking Device Installation
AL001: SECTION 4 INSTALLATION 5. When in use: Use the safety pin to adjust the ANTI-TILT LOCKING DEVICE hitch. See Figure 4-5. INSTALLATION 1. Loosen the bolts on the anti-tilt lock bracket. There should be grooves where the bolts were tightened against the hitch receiver. -
Page 10: Warranty
Harmar’s discretion, any part found to have been Harmar Mobility warrants to the original purchaser modified, over-stressed, damaged by accident, or of an AL001 sold by Harmar to be free of defects misused is not covered by this warranty. in material, mechanical and electrical components... - Page 11 AL001: SECTION 5 WARRANTY PLEASE FILL OUT ALL FIELDS AND RETURN WITHIN TEN (10) DAYS OF PRODUCT INSTALLATION. Fax completed form to 1-866-234-5680 or mail to: Harmar, ATTN Warranty Department, 2075 47 Street, Sarasota Florida 34234. PRODUCT INFORMATION PURCHASER INFORMATION...
- Page 12 AL001: SECTION 5 WARRANTY Page Intentionally Left Blank Install Manual AL001: 25SEP2020 | 630-00095 REV B...
- Page 13 NOTES Install Manual AL001: 25SEP2020 | 630-00095 REV B...
- Page 14 NOTES Install Manual AL001: 25SEP2020 | 630-00095 REV B...
- Page 15 NOTES Install Manual AL001: 25SEP2020 | 630-00095 REV B...
- Page 16 2075 47 Street | Sarasota, FL 34234 800.833.0478 harmar.com...
