Heatit ET-7A-AU User Manual

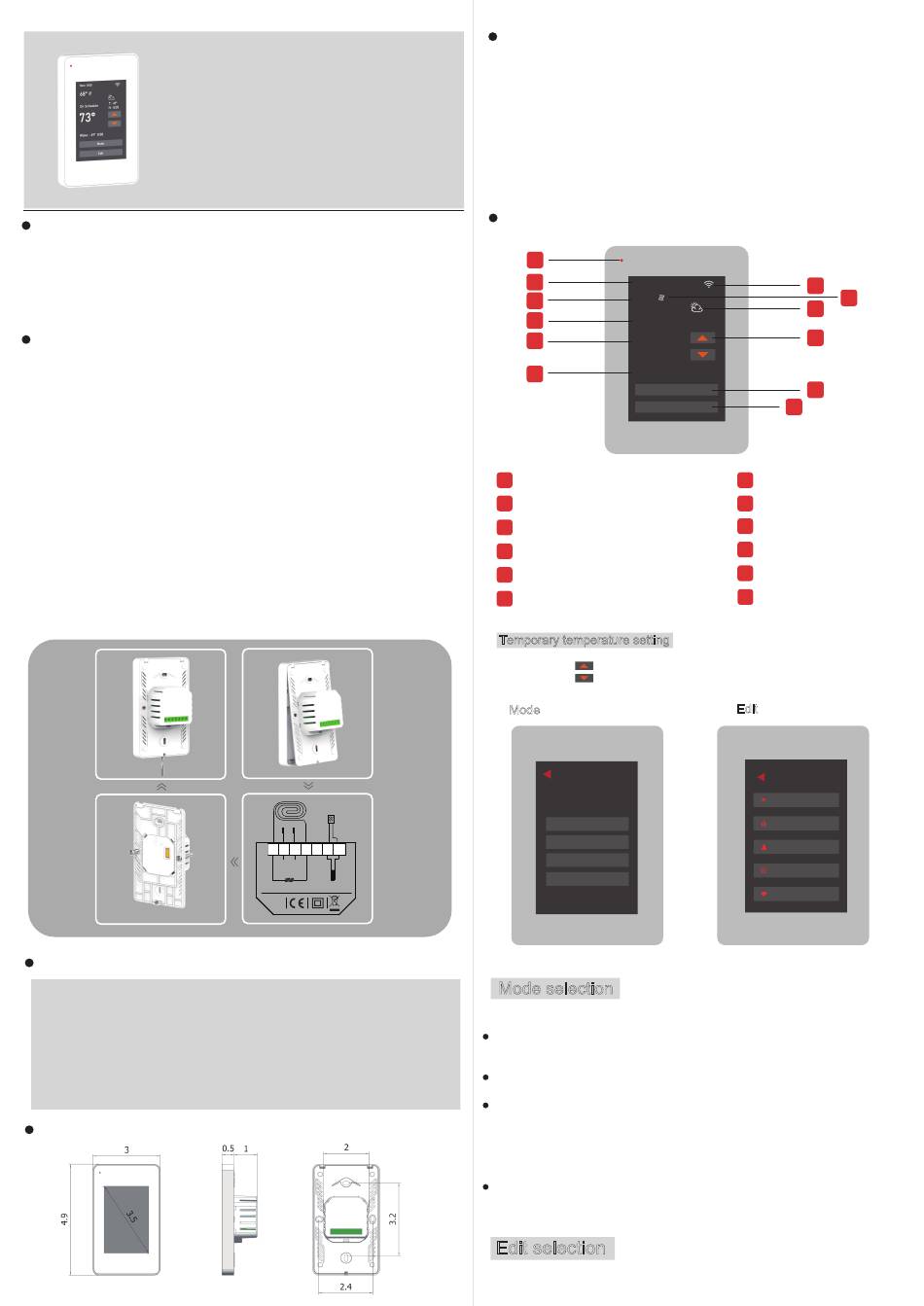

USER MANUAL
Model: ET-7A-AU(W)
Programmable Radiant Floor Thermostat
Warnings:
-Installation or replacement of this product should only be done by qualified personnel.
-To avoid risk of electric shock, turn OFF the power source from the main service panel prior to
installation of the thermostat.
-Keep thermostat air vents clean and free from obstructions.
-Electric floor heating cable/mat must be in accordance with the thermostat supply voltage.
-All wiring must conform to local as well as national electrical codes and ordinances.
-Thermostat terminals are designed to handle a cross-section of wire measuring 12-22AWG.
Installation:
1.Loosen the bottom screw by a Phillips screwdriver, then open the thermostat from the below
as shown in figure 1：
Note: The bottom screw does not need to be removed to detach the faceplate.
2. Wire the thermostat as shown in figure 2:
L/N (Line): Connect incoming power supply to the terminal block.
L1/N1 (Load): Connect the heating load wires to the terminal block.
(Above wiring screws should be torqued between 0.7-1.0 N.m)
Ensure the junction box is grounded, and attach the heating cable ground to this location.
S1/COM/ : Connect the floor sensor.
If a spare (redundant) probe has been installed in the floor, tape this to the other probe wire in the junction
box, but ONLY CONNECT (1) SENSOR to the thermostat at any one time.
3. Install the power base into the junction box and secure it using the supplied set screws as
shown in Figure 3.
(Screws should be torqued to approx 0.1-0.2 N.m)
4. Install the thermostat faceplate on the power base; start by aligning the top of the units, then
swing the faceplate down so it comes to rest on top of the power base, with the screw holes lined
up; tighten the screw to secure the faceplate to the power-base.
5. Turn ON the thermostat and wait for the operating screen to be displayed.
Technical specification:
Supply voltage: 85-265 VAC 50/60 Hz
Load: max.16 A (resistive load)
Setpoint range: +5 to +40°C / +41 to +104°F
Temperature range: +5 to +45°C / +41 to +113°F
Cover: IP21
WIFI module: 5G+2.4G
Floor sensor type: NTC B=3950 10k
Temp Tolerance: default 1°C /2°F
Dimensions (inches):
》
02
01
04 03
POWER
FLOOR SENEOR
N1 N1 N N L L L1 L1 COM SENSOR S1
POWER
85V-265V
FLOOR
50/60Hz
SENSOR
MAX LOAD: 16A
IP 21
Operation：
The thermostat controls your floor heating system based on built-in weekly program, running in
4 or 2 stages per day, 7 days a week.
The default weekly program parameters satisfies most usage scenarios, however you can also
modify the weekly program parameters in the thermostat.
When there is no one in the house, it is recommended to reduce the temperature set-point to
save energy.
The thermostat also has built-in adaptive function. When this function is active, the thermostat
heats or stops heating in advance of next stage to bring the room temperature to the set temp-
erature of the next stage. Please note that after turning the Adaptive function ON, the thermostat
will require a few days of normal operation to learn the time required to achieve the heating
targets selected.
Functions:
1
2
Mon 8:00
20.0°
6
9
Auto Mode
21.0°
10
12
Wake : 21.0° 8:00
Mode
1
LED
WIFI
3
Weather
5
Up and down regulation
7
Mode state
9
11 Edit
Temporary temperature setting
Please press the button for temporary temperature setting
Mode
Mode selection
Auto Mode
Manual Mode
Away Mode
OFF
Mode selection
This thermostat provides three operating modes:
Automatic mode:
According to the weekly program, the thermostat automatically adjusts the set
temperature operation.
Manual mode:
The thermostat runs continuously according to the set temperature.
Away mode:
This mode is used when you want to keep your room at a lower temperature when you
are away for an extended period of time.This operating mode prevents damage to
household/office equipment caused by sudden exposure to cold temperatures.
The set-point temperature Range is set to maintain from 41°F to 59°F(5°C -15°C) in this
mode.
OFF:
Manually turn off all functions of the thermostat. When the device needs to be started,
Press and hold the on/off button in screen for 3s.
Edit selection
3
5
T：27℃
H：53%
7
8
11
Edit
2 Time
Heating
4
Temperature
6
Mode
8
10 Setting temperature
Next Schedule
12
Edit
Menu
Heating Schedule
Energy Use
User Settings
Installer Settings
Wifi /Weather
4
