Heatit Z-TEMP3 Installer Manual

HEATIT
Z-TEMP3
Installers manual
White RAL 9003
45 126 90
TABLE OF CONTENTS
1. Introduction
2. Statement regarding
products from multiple
manufacturers
3. Behavior within the
Z-Wave network
4. Quick Start
5. Connections
6. Installation
7. Add/Remove
8. Factory Reset
9. Startup
10. Principles of regulation
11. Local settings menu
12. Display Menu structure
13. Temperature shown in
display
14. Standby and main screen
15. Calibration
16. Brightness
17. Display on/off
PRODUCT
DOCUMENTS
Firmware version Document version
FW 1.0 2024-A
Article no. Document date
45 126 90
01.07.2024
45 126 91
Org. doc. date 01.07.2024

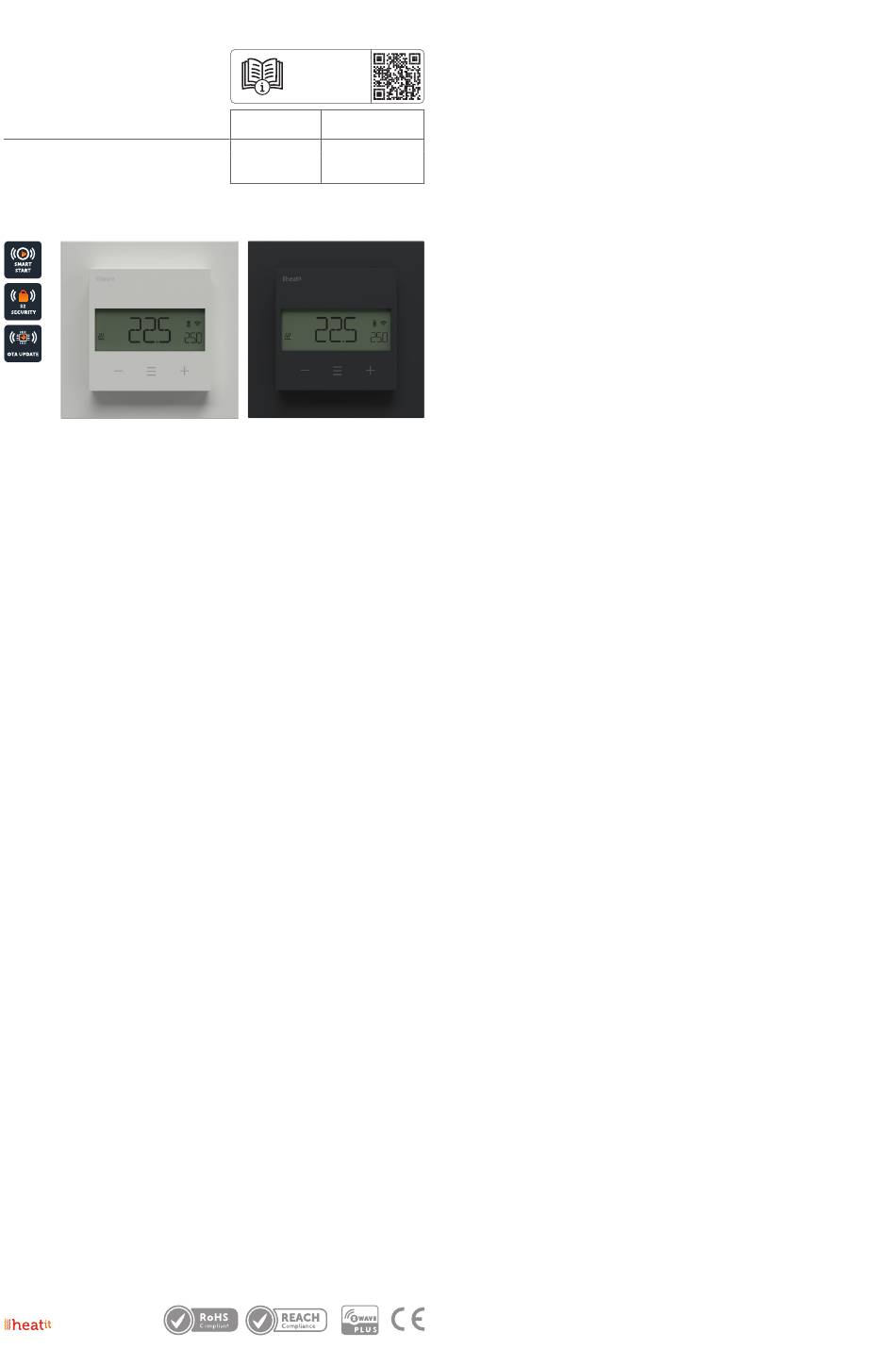

Black Matt
45 126 91
18. Display icons
19. Child lock
20. Open window detection
21. Error codes
22. QR-Code Placement (DSK)
23. Security
24. Node Information Frame
25. Associations
26. Association Groups
27. Configuration Parameters
28. Command Classes
29. Supported Command
Classes
30. Controlled Command
Classes
31. Thermostat dimensions
32. Thermostat controls
33. Order of assembly
34. Chart - Display Menu
Product info
1. INTRODUCTION
Heatit Z-Temp3 is a battery-operated thermostat designed for
controlling waterbased heating systems. Used in combination
with the Heatit Z-Water2, you can control your heating system
through the Z-Wave network or via the buttons on the front
®
panel. The thermostat has a user-friendly interface.
Heatit Z-Temp3 has 3 modes: Heat, Cool, and Eco.
The thermostat fits into System 55 frames, and may be
mounted alongside other equipment such as e.g dimmers or
light switches. Heatit Z-Temp3 can also be mounted directly
on the wall or placed freely, e.g. on a shelf.
Heatit Z-Temp3 can be set as a master thermostat. This means
that you can set the setpoint and mode on one unit, and it will
automatically send the setpoint and mode to other connected
units.
All communication between Heatit Z-Temp3 and the
controlled device is 100% wireless.
Heatit Z-Temp3 uses 2x AAA batteries, but you can also
connect the device to an external power source. The
Heatit Transformer 230VAC (45 126 48) is recommended for
this purpose.
Heatit Z-Temp3 can be associated with Heatit ZM Single Relay,
other Z-Wave relays, Heatit ZM Thermostat, Heatit Z-TRM6
Thermostat and other Z-Wave devices to control other types
of heating solutions.
Heatit Z-Temp3 is a great choice for the restoration or
renovation of existing buildings, as it is easy to install without
the need for wiring. We recommend using multiple 230VAC
devices to create a mesh network.
2. STATEMENT REGARDING PRODUCTS FROM MULTIPLE
MANUFACTURERS
Please read this before installation
This device may be used with all devices certified with the
Z-Wave Plus ® certificate and should be compatible with
such devices produced by any manufacturer. Every primary
controller is different depending on the manufacturer, their
target audience and intended use/application. Please review
the functionalities implemented by the primary controller you
intend to use with our Z-Wave Plus certified device to ensure
that it provides the necessary controls to take full advantage of
our product's capabilities.
3. BEHAVIOR WITHIN THE Z-WAVE NETWORK
This device may be operated within any Z-Wave
with Z-Wave-certified devices from other manufacturers. All
non-battery-operated nodes within the network will act as
repeaters regardless of manufacturer to increase the reliability
of the network. On delivery, the device does not belong to any
Z-Wave network. The device needs to be added to an existing
network to communicate with the other devices within it.
Devices may also be removed from a network. The add/
remove processes are initiated by the primary controller of the
Z-Wave network.
® network
