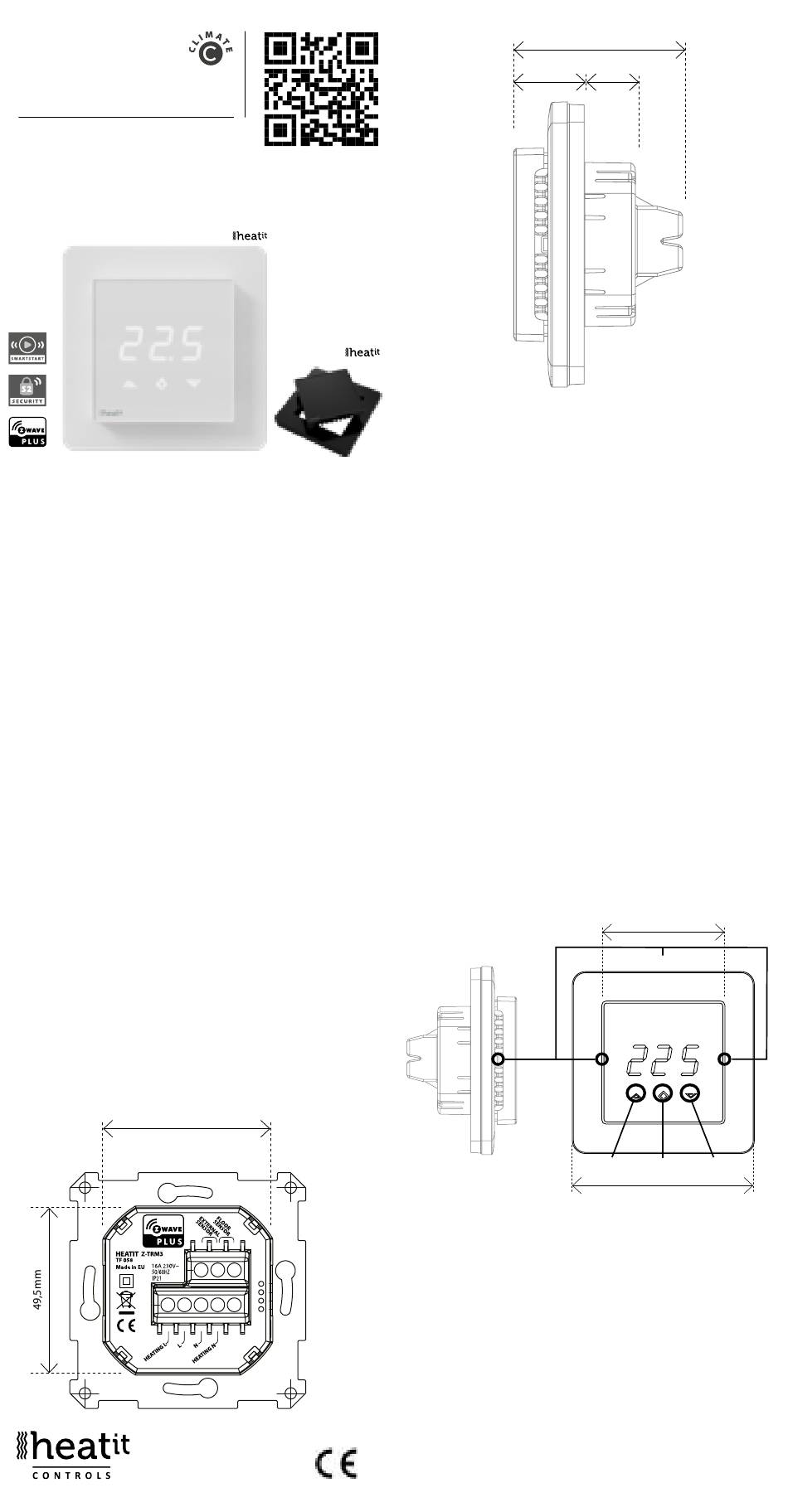

Heatit Z-TRM3 Quick Manual

HEATIT
Z-TRM3
Quickguide
INTRODUCTION

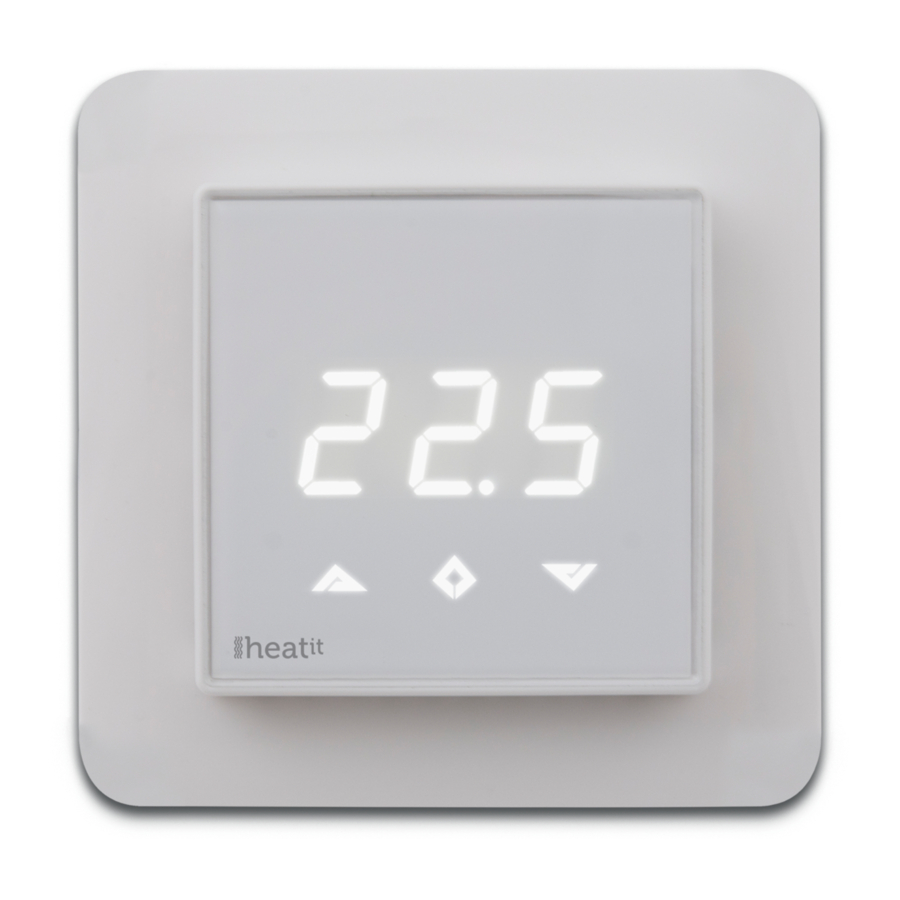

Heatit Z-TRM3 is an electronic thermostat for electrical
floor heating, designed to be mounted in a standard
flush box. The thermostat has a built-in Z-Wave chip
that can be connected with Home Automation
systems. Heatit Z-TRM3 is equipped with a single pole
switch and fits into System 55 frames. The thermostat
can withstand a load of max 16A /3600W at 230V.
The thermostat may be used for water based heating
if the thermostat is linked with the Heatit Z-Water.
NB! If the sensor mode is changed to A or AF mode
then a room sensor compensation process will
start, which limits maximum power output to 75%.
The thermostat adapts to the environment within
a few days. No internal sensor calibration should be
performed during the first few days.
INSTALLATION
Use e.g. a small slotted screwdriver. Start by carefully
removing the front cover by pushing the release springs.
The front cover and the frame may now be removed.
Connect the wires to the thermostat terminals: Use
5 4
1,5mm² or 2,5mm² according to load.
Ver 2020-A
Read the full manual at:
manuals.heatit.com
manuals.thermo-floor.no
3
49,5mm
HEATING (N)
N
L
HEATING (L)
FLOOR SENSOR
NTC type (10, 12, 15, 22, 33 or 47kΩ). Default 10kΩ.
EXTERNAL SENSOR
NTC type (10, 12, 15, 22, 33 or 47kΩ). Default 10kΩ.
Next, position the thermostat and fasten it onto the
wall's mounting box using 2-4 screws. Position the
frame, then position and carefully press the front cover
until it snaps in place. Check that the front cover has
snapped in place properly on both left and right side.
The front cover should now be firmly fixed on all sides.
To be able to to read the Power Metering, the load
needs to be connected to both heating L + N.
2 1
51,1mm
15,6mm
21,3mm
Heating cable connection (Neutral)
Power connection (Neutral) 230V
Power connection (Live) 230V
Heating cable connection
58,8mm
Release spring
MULTIREG® Z-WAVE
F
1: Left 2: Center
87mm
E
D
C
3: Right
