Heatit Z-TEMP2 Installer Manual

HEATIT
Z-TEMP2
Installers manual
TABLE OF CONTENTS
1
Introduction
2
Statement regarding products from multiple manufacturers
3
Behavior within the Z-Wave™ network
4.
Quick Start
5.
Installation
6.
Add/Remove
6.1
Method 1 Standard (manual)
6.2
Method 2 SmartStart (automatic)
7
Factory Reset
8
Compability/ Principles for regulation
9
Information shown in display
10
Hysteresis (DIF)
11
Childlock - Lock
12
Standby and main screen
13
Z-Wave QR-Code / DSK
14
Security
15
Node Information Frame
16
Associations
17
Configuration parameters
18
Operating the device
19
Supported Command Classes
Product information
Firmware 1.1
01.03.2020
Ver 2020-C
1. INTRODUCTION

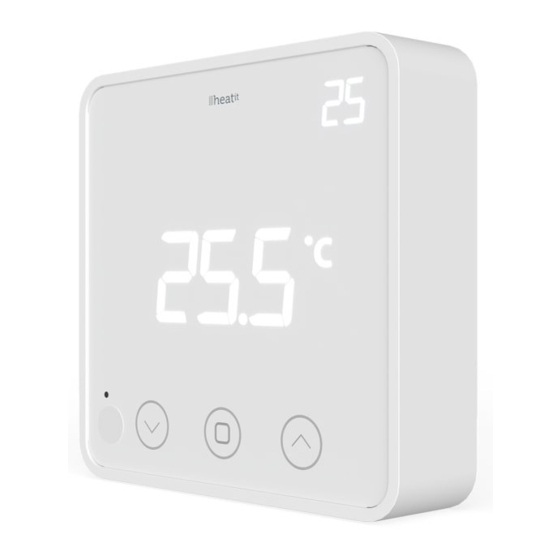

Heatit Z-Temp2 is a battery-operated thermostat designed for use
with water based heating systems. Used in combination with the
Heatit Z-Water regulator you can control your heating system with a
Z-Wave primary controller/gateway with the use of Heatit Z-Water in
combination with one or several Heatit Z-Temp2.
2. STATEMENT REGARDING PRODUCT
FROM MULTIPLE MANUFACTURERS
Please read this before installation
This device may be used with all devices certified with the Z-Wave
Plus™ certificate and should be compatible with such devices
produced by other manufacturers. Every primary controller is different
depending on the manufacturer, their target audience and intended
use/application. Please review the functionalities implemented by
the primary controller you intend to use with our Z-Wave Plus
certified device to ensure that it provides the necessary controls
to take full advantage of our product's capabilities.
3. BEHAVIOR WITHIN THE Z-WAVE NETWORK
This product can be operated in any Z-Wave network with other
Z-Wave certified devices from other manufacturers. All non-battery-
operated nodes within the network will act as repeaters regardless
of manufacturer to increase reliability of the network. On delivery,
the device does not belong to any Z-Wave network. The device
needs to be added to an existing network to communicate with
the devices of this network. Devices can also be removed from
a network. Both adding and removing process are initiated by the
primary controller of the Z-Wave network.
This controller will enter a mode for adding or removing devices.
Please refer to your primary controller/gateway manual on how to
turn your controller into add or remove mode. The device can only
be added or removed from the network if the primary controller is in
add/remove mode. When the device is removed from the network,
the device will revert to factory default settings.
4. QUICK START
1. Install the batteries (as stated in the technical specification).
2. Install the device on a flat vertical surface
using screws or double-sided tape
3. Set the controller/gateway in add mode (security/non-security).
4. Press the link button 3 times in a rapid sequence.
5. The thermostat will display "INC" when the thermostat is
successfully included.
NB! If adding/removing fails, Err (error) will appear.
5. INSTALLATION
Use a large flathead screwdriver to remove the back cover.
Fix the unit to the wall by double-sided tape, screws or installed
on top of a Euro wall box.
Make sure the mounting surface is clean and dry.
Then install 3x AA batteries (alkaline) in the device's battery-holder.
NB! Be careful to when installing batteries, ensuring the polarity of
the batteries is in accordance with the printing in plastic.
