Read this entire installation manual to ensure proper installation. When
Installation
finished with the installation, file this manual with the owner or maintenance
department.
Separate parts from packaging and make sure all parts are accounted for
Packing List
before discarding any packaging material. If any parts are missing, do not
•
•
•
begin installation until you obtain the missing parts.
T H
IS
•
E
S ID
U P
Make sure that all water supply lines have been flushed and then completely
turned off before beginning installation. Debris in supply lines can cause
valves to malfunction.
Hardware supplied by installer must be appropriate for wall construction.
Wall anchors used must have a minimum pull-out rating of 1,000 lbs.
Product warranties may be found under "Product Information" on our web
site at www.bradleycorp.com.
215-1205 Rev. K: ECO 21-08-003
© 2021 Bradley
Page 1 of 5
4/27/2021

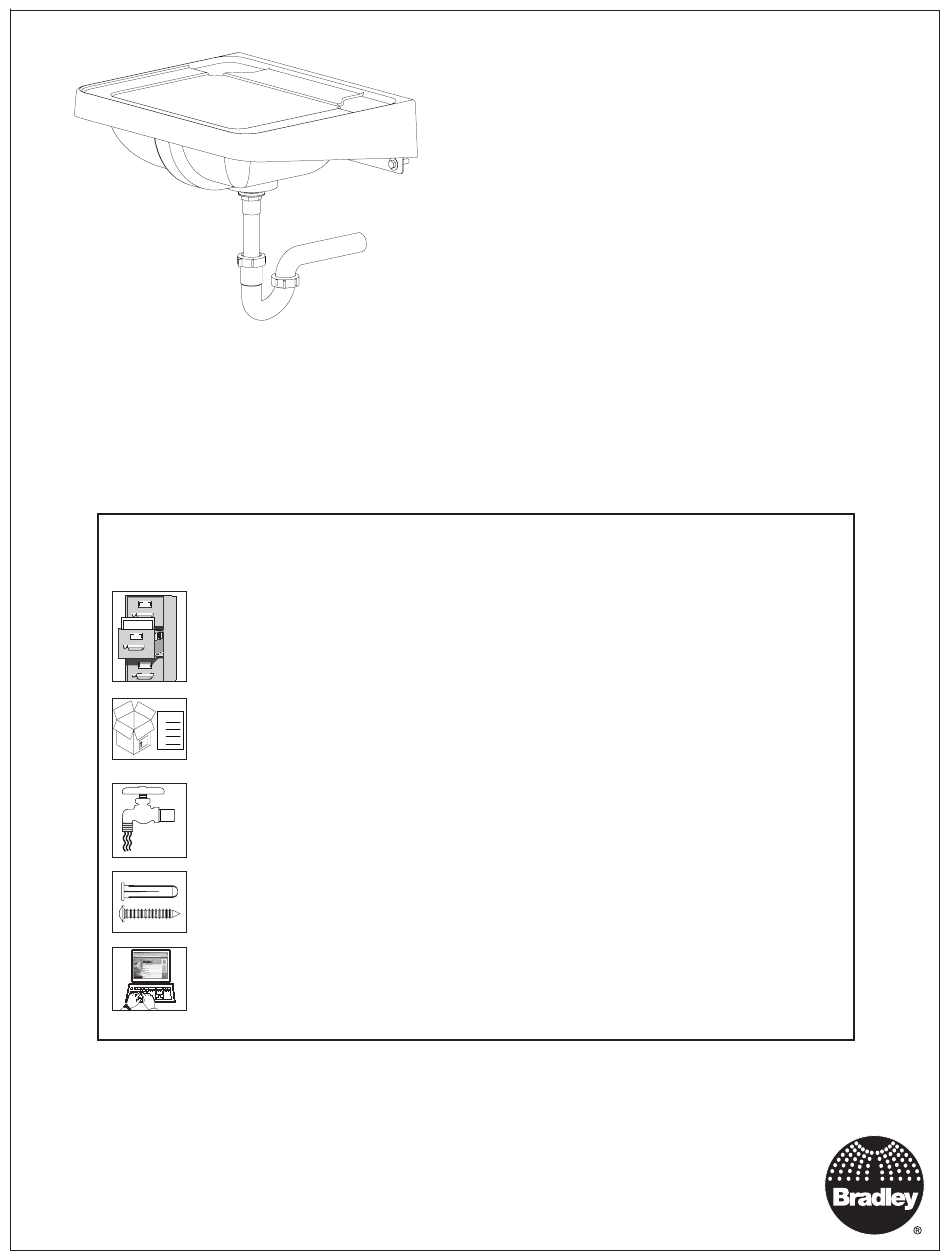

Installation
TL-18
Terreon
Lavatory
Table of Contents
Supplies Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Assembly of Components . . . . . . . . . . . . . . . . . . . . . . . . . 2
Rough-Ins and Dimensions . . . . . . . . . . . . . . . . . . . . . . . . 3
Lavatory Bowl Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Drain Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 5
IMPORTANT!
®
Imperial Wall-Mount
P.O. Box 309
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
+1 262 251 6000
bradleycorp.com
Advertisement
Table of Contents
Related Manuals for Bradley Terreon Imperial TL-18
Summary of Contents for Bradley Terreon Imperial TL-18
-
Page 1: Table Of Contents
Product warranties may be found under “Product Information” on our web site at www.bradleycorp.com. P.O. Box 309 215-1205 Rev. K: ECO 21-08-003 Menomonee Falls, WI 53052 USA 800 BRADLEY (800 272 3539) © 2021 Bradley +1 262 251 6000 Page 1 of 5 4/27/2021... -
Page 2: Supplies Required
• (4) 3/8” wall anchors, fasteners and 1” minimum diameter washers to mount support brackets to wall (minimum pull-out rating of 1,000 lbs.) Assembly of Components Support Bracket (140-1009) TL-18 Lavatory Bowl Strainer (269-1839-PC) Rubber Washer Fiber Washer Polypropylene P-Trap Optional Chrome (269-1697) P-Trap (S29-094) Bradley • 215-1205 Rev. K: ECO 21-08-003 4/247/2021... -
Page 3: Rough-Ins And Dimensions
Optional Centershank, Top View Front View 4" Set and 8" Set Faucet Holes Not Shown 21" (533) 7-1/2" (191) 7-3/4" (197) 11" 18" 2" 4-1/2" (279) (457) (51) (114) 15" (381) Side View Bradley • 215-1205 Rev. K: ECO 21-08-003 4/27/2021... -
Page 4: Lavatory Bowl Mounting
Beneath the bowl, secure the rubber washer, fiber washer and nut onto the strainer. Rubber Washer Fiber Washer Connect the P-trap to the strainer and to the drain sub-out from the wall. Bradley • 215-1205 Rev. K: ECO 21-08-003 4/247/2021... -
Page 5: Cleaning And Maintenance
Avoid contact with harsh chemicals such as paint remover, bleach, acetone, etc. Avoid contact with hot pans and objects. Repair Kits: Terreon repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing. Repair kits are made to order and have a shelf life of 30 days.
