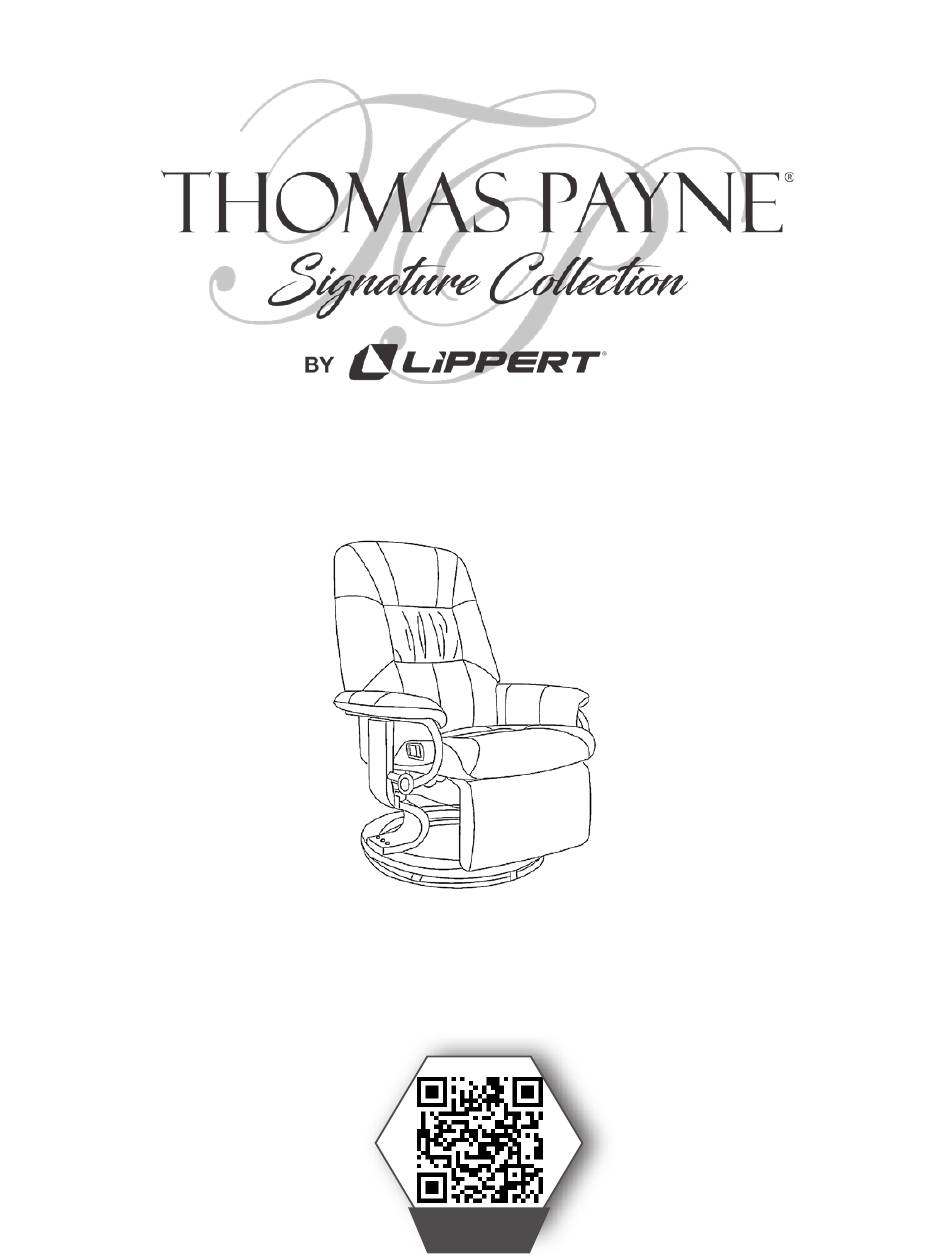

- Page 1 Euro Recliner Assembly Guide Scan for Full CCD-0009337 Manual REV: 11.5.2024...
- Page 2 MOVING PARTS CAN PINCH, CRUSH OR CUT. KEEP CLEAR AND USE CAUTION Assembly NOTE: The Euro Recliner comes with the back lying on top of the seat cushion. 1. Lift the seat back and position the single brackets at the lower seat back in between the double brackets on the seat bottom, aligning all three holes (Fig.1).
- Page 3 2. Once the holes are properly aligned, slide the provided bolts (Fig.2A) through all three holes. Fig. 2 CCD-0009337 REV: 11.5.2024 Page 3...
- Page 4 3. 3. Secure the bolts with the provided nuts (Fig.3A). Fig. 3 CCD-0009337 REV: 11.5.2024 Page 4...
- Page 5 4. Place the arm pads (Fig.4A) on the chair. 5. Secure the arm pads to the arm tube (Fig.4B) with two screws per side (Fig.4C). 6. Secure the arm pads to the back of the chair, using one screw per side (Fig.4D).
- Page 6 Lippert provides explicit consent to distribute individual parts. All manual information is subject to change without notice. Revised editions will be available for free download at lippert.com. Manual information is considered factual until made obsolete by a revised version.
