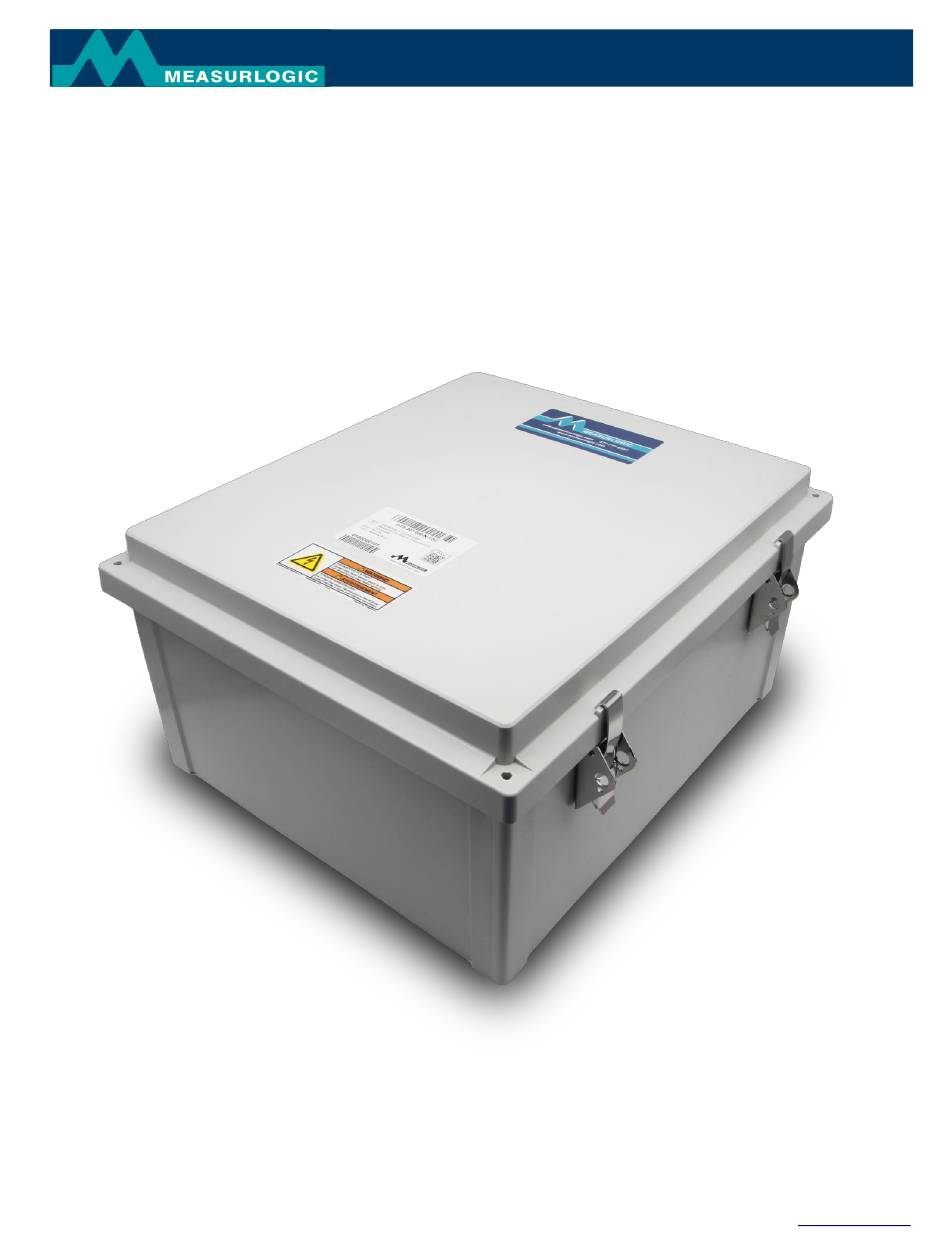

DTS 307 MCM - Install Guide
DTS 307 MCM
Multi-Circuit Monitor
Revenue Grade Electrical Sub-metering
7268 S. Tucson Way, Centennial CO 80112
©Measurlogic Inc
Tel: 877-777-6567
Page 1 of 19
R25B
e-mail: info@measurlogic.com
web: www.measurlogic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTS 307 MCM and is the answer not in the manual?

Questions and answers

Summary of Contents for Measurlogic DTS 307 MCM

  • Page 1 DTS 307 MCM - Install Guide DTS 307 MCM Multi-Circuit Monitor Revenue Grade Electrical Sub-metering 7268 S. Tucson Way, Centennial CO 80112 ©Measurlogic Inc Tel: 877-777-6567 Page 1 of 19 R25B e-mail: info@measurlogic.com web: www.measurlogic.com...
  • Page 2: Table Of Contents

    1.3.4 Environment................................5 INSTALLATION ................................... 6 ................................6 AFETY UIDELINES ........................ 7 ENERAL OUNTING EQUIREMENTS AND UIDELINES CONNECTING TO THE DTS 307 MCM ..........................9 ..................................9 NTRODUCTION ............................... 10 ONNECTION VERVIEW ................................... 11 ONDUIT OLES ................................ 12 OLTAGE ONNECTIONS ................................
  • Page 3: Product Overview

    PRODUCT OVERVIEW What is the DTS 307 MCM Sub-Metering Solution? The DTS 307 MCM is a fully contained Multi-Channel Sub-Metering solution. • 9, 12, 18 or 24 Current Circuits (3 x 3 phase, 4 x 3 phase, 6 x 3 phase & 8 x 3 phase inputs) •...
  • Page 4: Supplied Items

    Check that the meter and equipment match your order specifications and has not been damaged during shipping. Verify that the following item(s) match with the corresponding model from the data sheet: • DTS 307 MCM power & energy meter enclosure • The internal DTS 307 measuring and communications options as per your order •...
  • Page 5: Product Specification

    DTS. 1.3.1 Model Numbers The DTS 307 MCM model numbers are in the form: DTS 307 – xx – – zzC Please see the “Model Number Builder” on the datasheet for the...
  • Page 6: Installation

    Before handling the DTS 307 ensure that all power running to the DTS 307 is removed. • The DTS 307 MCM may be used outdoors since the ingress protection level of the enclosure is (EN 60529): IP66; IP67. It is the responsibility of the user to ensure that this rating is suitable for the application.
  • Page 7: General Mounting Requirements And Guidelines

    équipements de sous-comptage ou des capteurs de courant. When mounting the DTS 307 MCM make sure to follow these guidelines: • Always completely de-energize the electrical panelboard, switchboard, industrial control equipment and/or energy monitoring management equipment before installing or servicing the DTS 307 meter and/or its Current Transformers.
  • Page 8 DTS 307 MCM - Install Guide • A UL or ETL certified 600V circuit-breaker must be installed as a disconnecting device for the DTS 307 and must be positioned within easy reach of the DTS 307. The circuit-breaker employed for this disconnecting device shall meet the relevant requirements of IEC 60947-1 and IEC 60947-3, be suitable for the application, and MUST be clearly marked as being “the disconnecting device”...
  • Page 9: Connecting To The Dts 307 Mcm

    The DTS 307 MCM is shipped with the RS-485 loom and the CT connectors supplied loose in a packet. This is done to make the initial wiring and connections easier.
  • Page 10: Connection Overview

    DTS 307 MCM - Install Guide Connection Overview This label appears on the inside of the lid of the DTS 307 MCM, which provides a quick connection overview for the meter. 7268 S. Tucson Way, Centennial CO 80112 ©Measurlogic Inc...
  • Page 11: Conduit Holes

    DTS 307 MCM - Install Guide Conduit Holes The following guidelines should be followed for conduiting into the enclosure: • Conduit holes are only allowed in the areas shown in the image above. • To avoid damage to any of the electronic parts in the enclosure, DO NOT drill holes for conduit at any other position on the enclosure.
  • Page 12: Voltage Connections

    The DTS 307 MCM must be uniquement à la protection du compteur local. connected to a breaker in the load panel for Le DTS 307 MCM doit être connecté à un wiring protection and to provide a disconnect disjoncteur du panneau de charge pour for the DTS 307 MCM.
  • Page 13: Current Connections

    DTS 307 MCM - Install Guide Current Connections Since the DTS 307 meters are mounted vertically on the DIN Rail next to other meters or devices, the large blue side label of the DTS 307 may not be visible. The DTS 307 side label, CT wire...
  • Page 14: Communications Loom

    DTS 307 MCM - Install Guide Communications Loom The communication loom is pre-wired and is supplied in a separate packet. It is easiest to first complete and fit the current plugs. Once all the current plugs are fitted to their DTS 307 meters, then the communication loom can be fitted.
  • Page 15: Led Definitions

    DTS 307 MCM - Install Guide LED Definitions The DTS 307 is equipped with 2 LEDs useful for diagnostics and troubleshooting – STATUS and REMOTE. Status LED • The STATUS LED consists of a repetition of two flashes and shows whether the measured power is being consumed/imported or generated/exported, as well as the magnitude of the total current.
  • Page 16: Remote Led

    DTS 307 MCM - Install Guide Remote LED • The REMOTE LED is a communications indicator which is present on all meters fitted with an RS-485 serial port. • The LED will flicker GREEN when the DTS 307 receives data on the BUS and...
  • Page 17: Installation Of Dts Config And Monitoring Software

    • Rogowski Coil CTs – This is a flexible CT. Measurlogic DTS meters can accept Rogowski Coil CTs directly without the need for an external integrator. The sensitivity of this type of current sensor is specified in milli-volts (mV) per 1000A at 60Hz. Different models of Rogowski Coils have different sensitivities, which must be selected from the pull-down menus in DTS Config and set accordingly.
  • Page 18: Configuring The Electrical Settings Using Dts Config

    DTS 307 MCM - Install Guide 5.1.1 Configuring the Electrical Settings using DTS Config Select “Configure” from the menu. The Current Transformer settings can be found in the “Electrical Settings” tab. The screenshots show the layout of the latest version of DTS Config. The screen layout for previous versions of DTS Config may differ.
  • Page 19: Maintenance And Service

    DTS 307 MCM - Install Guide MAINTENANCE AND SERVICE WARNING AVERTISSEMENT There are NO other user serviceable parts in Il n'y a AUCUNE autre pièce réparable par the DTS 307, and no regular maintenance is l'utilisateur dans le DTS 307, et aucun required.
