Measurlogic DTS 310 Quick Start Manual
333mv rs-485 serial meter
Hide thumbs
Also See for DTS 310:
- Install manual (17 pages) ,
- Quick start manual (4 pages) ,
- Qucik start manual (3 pages)
Advertisement
Quick Links
DTS 310 333mV RS-485 Serial Meter
This Quick Start Guide is designed to familiarize the user with the connection and configuration
of the DTS 310 DIN rail mounted single / 3 phase power & energy meter for use with:
Current Sensor Inputs
333mV, Flexible Rogowski Coil or 5A
RS-485 Serial Communications
Modbus RTU or BACnet MS/TP
DTS 310 Model #
DTS 310-34-SB-A-4
DTS 310-36-SB-A-3
DTS 310-36-SB-A-6
If you do not see your specific meter model number above, please contact
Measurlogic Inc. at 303-805-5252 or info@measurlogic.com.
©Measurlogic
R25C
Applicable DTS 310 Models
Measurlogic Part #
D310-0128
D310-0164
D310-0182
For more information please use the DTS 310
installation guide
https://www.measurlogic.com/product/dts-310/
Page 1 of 8
•
208V-480V 3ph 3 or 4 wire
•
333mV / Rogowski CTs
•
Self-powered
•
RS-485 serial Modbus RTU or BACnet MS/TP
•
208V-600V 3ph 3 or 4 wire
•
333mV / Rogowski CTs
•
24Vdc auxiliary powered
•
RS-485 serial Modbus RTU or BACnet MS/TP
•
208V-600V 3ph 4 wire
•
333mV / Rogowski CTs
•
Self-powered
•
RS-485 serial Modbus RTU or BACnet MS/TP
ATTENTION
Description
7268 S. Tucson Way, Centennial CO 80112
Tel: 877-777-6567
e-mail: info@measurlogic.com
web: www.measurlogic.com
Advertisement
Related Manuals for Measurlogic DTS 310
Summary of Contents for Measurlogic DTS 310

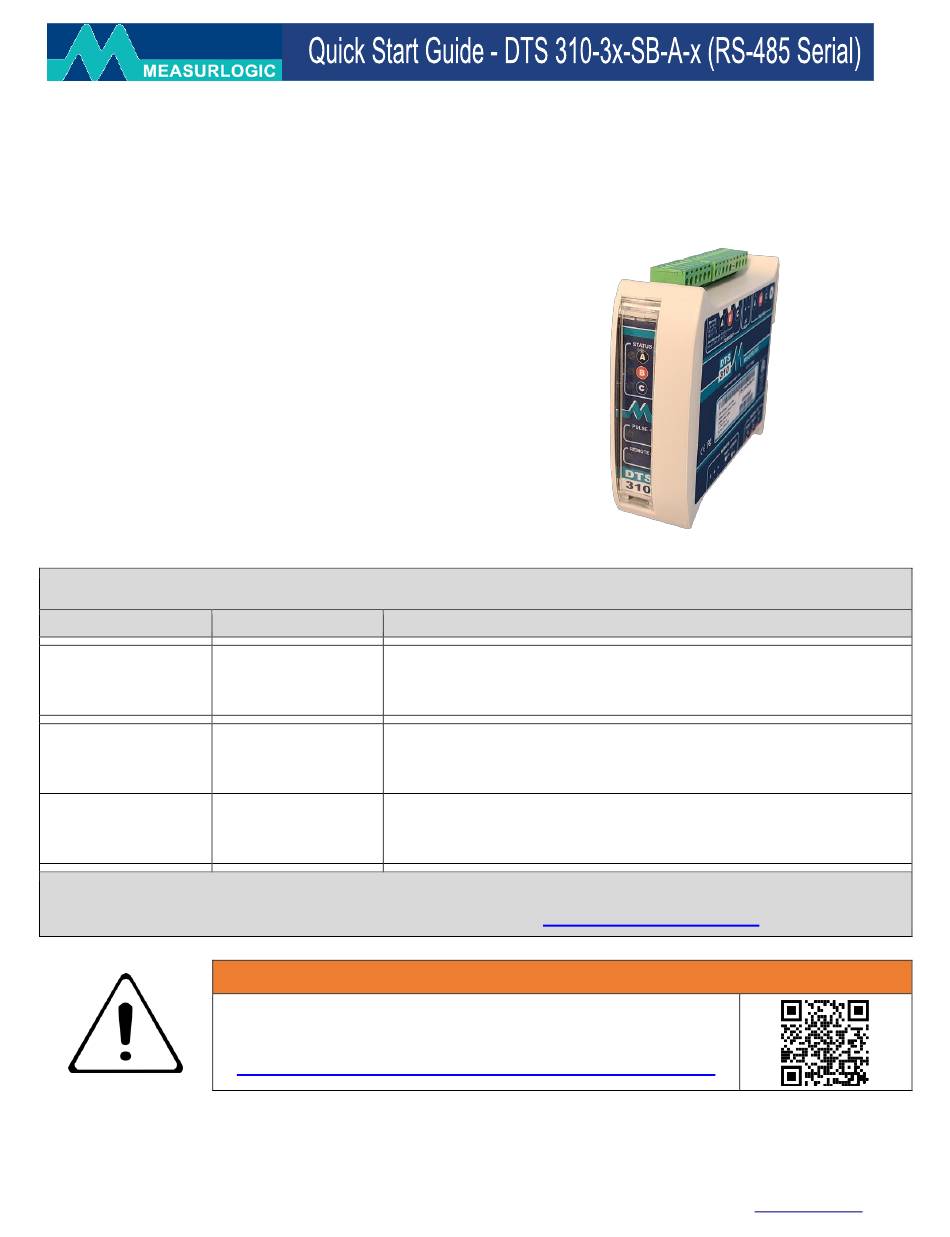

- Page 1 DTS 310 333mV RS-485 Serial Meter This Quick Start Guide is designed to familiarize the user with the connection and configuration of the DTS 310 DIN rail mounted single / 3 phase power & energy meter for use with: Current Sensor Inputs...
-
Page 2: Supplied Items
The DTS 310 operates normally when power is applied to Phase A, Phase B and/or Neutral depending on model number so no additional auxiliary power supply is needed. To provide added flexibility to the DTS 310 meter it can be powered from a DC auxiliary supply (model dependant) in the following ranges. -
Page 3: Wiring The Digital Inputs
Digital Inputs and Outputs (Digital I/O) The default DTS 310 meters indicated above are fitted with 2 x digital inputs and a pulse output as standard. They are grouped together with a single 6 way pluggable terminal. Wiring the Digital Pulse Output The single digital output –... - Page 4 DTS 310 meter, so an external integrator module is NOT required. However, if the system already has an external integrator module installed, then the output of the integrator will be 333mV for the current specified on the integrator label. For such systems, the DTS 310 meter must be configured for a “333mV”...
- Page 5 Custom Notes: 1. The switch setting option to support 350mV per 1000A output Rogowski Coil CTs is available for DTS 310 Serial meters with firmware version V3.2710 and later only. 2. For meter firmware versions V3.2700 and lower, please use the “Custom” setting and configure the Rogowski Coil output using the “Electrical Settings”...
- Page 6 70mV per 1000A @ 60Hz Nominal Current is set using DTS Config The Maximum Current for this Rogowski Coil is 5000A 7268 S. Tucson Way, Centennial CO 80112 ©Measurlogic Page 6 of 8 Tel: 877-777-6567 R25C e-mail: info@measurlogic.com web: www.measurlogic.com...
- Page 7 • Modbus RTU – All four switches in the OFF position is the Measurlogic default Modbus address of 100. The further Modbus Address options are 101 through to 114 as shown in the table. •...
- Page 8 Device ID 473007 Protocol Modbus RTU Baud Rate CUSTOM Modbus Address CUSTOM After custom communications parameters are configured, DO NOT change [SW.4..SW.8]. 7268 S. Tucson Way, Centennial CO 80112 ©Measurlogic Page 8 of 8 Tel: 877-777-6567 R25C e-mail: info@measurlogic.com web: www.measurlogic.com...
