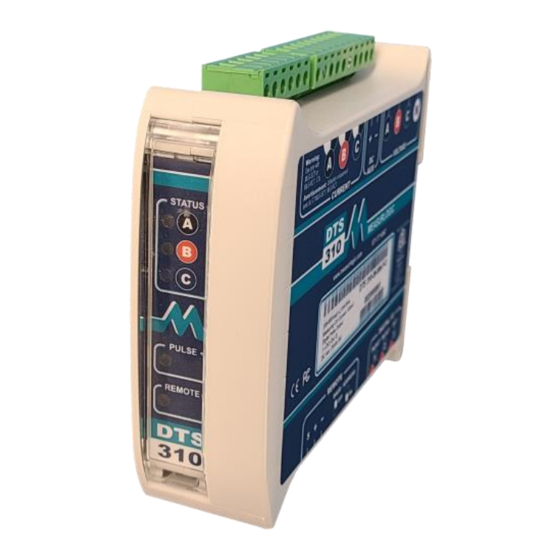

DTS 310 333mV RS-485 Serial Meter
This Quick Start Guide is designed to familiarize the user with the connection and configuration
of the DTS 310 DIN rail mounted single / 3 phase power & energy meter for use with:
•
333mV or Flexible Rogowski Coil current sensor inputs
•
RS-485 Serial Modbus RTU or BACnet MS/TP communications.
DTS 310 Model #
DTS 310-34-SB-A-4
DTS 310-36-SB-A-3
DTS 310-36-SB-A-6
If you do not see your specific meter model number above, please contact
Measurlogic Inc. at 303-805-5252 or info@measurlogic.com.
©Measurlogic
MQ0012-22A
Applicable DTS 310 Models
Measurlogic Part #
D310-0128
D310-0164
D310-0182
For more information please use the DTS 310
installation guide
https://www.measurlogic.com/product/dts-310/
Page 1 of 6
•
208V-480V 3ph 3 or 4 wire
•
333mV / Rogowski CTs
•
Self-powered
•
RS-485 serial Modbus RTU or BACnet MS/TP
•
208V-600V 3ph 3 or 4 wire
•
333mV / Rogowski CTs
•
24Vdc auxiliary powered
•
RS-485 serial Modbus RTU or BACnet MS/TP
•
208V-600V 3ph 4 wire
•
333mV / Rogowski CTs
•
Self-powered
•
RS-485 serial Modbus RTU or BACnet MS/TP
ATTENTION
Description
7268 S. Tucson Way, Centennial CO 80112
Tel: 877-777-6567 Fax: 425-799-4780
e-mail: info@measurlogic.com
web: www.measurlogic.com
Advertisement
Table of Contents
Related Manuals for Measurlogic DTS 310-3 SB-A Series
Summary of Contents for Measurlogic DTS 310-3 SB-A Series
- Page 1 Self-powered • RS-485 serial Modbus RTU or BACnet MS/TP If you do not see your specific meter model number above, please contact Measurlogic Inc. at 303-805-5252 or info@measurlogic.com. ATTENTION For more information please use the DTS 310 installation guide https://www.measurlogic.com/product/dts-310/ 7268 S.
- Page 2 (12 awg) wire. The wires are connected by means of screw terminals that clamp down onto the input wires. The voltage/PT inputs require fuses, not included, (see diagrams below) and should be rated at 1A 600Vac. Measurlogic can provide an in-line fuse kit as an option if required.
- Page 3 If multiple CTs per phase are required, please consult our document “Using Multiple CT Sets with DTS Meters” in the “Technical” section of the DTS 310 webpage https://www.measurlogic.com/product/dts-310/ 7268 S. Tucson Way, Centennial CO 80112 ©Measurlogic Page 3 of 6 Tel: 877-777-6567 Fax: 425-799-4780 MQ0012-22A e-mail: info@measurlogic.com web: www.measurlogic.com...
- Page 4 70mV per 1000A @ 60Hz Nominal Current is set using DTS Config The Maximum Current for this Rogowski Coil is 5000A 7268 S. Tucson Way, Centennial CO 80112 ©Measurlogic Page 4 of 6 Tel: 877-777-6567 Fax: 425-799-4780 MQ0012-22A e-mail: info@measurlogic.com web: www.measurlogic.com...
- Page 5 (Please see the next section for custom communications settings.) • Modbus RTU – All four switches in the OFF position is the Measurlogic default Modbus address of 100. The further Modbus Address options are 101 through to 114 as shown in the table.
- Page 6 Protocol Modbus RTU Baud Rate CUSTOM Modbus Address CUSTOM After custom communications parameters are configured, DO NOT change [SW.4..SW.8]. 7268 S. Tucson Way, Centennial CO 80112 ©Measurlogic Page 6 of 6 Tel: 877-777-6567 Fax: 425-799-4780 MQ0012-22A e-mail: info@measurlogic.com web: www.measurlogic.com...
