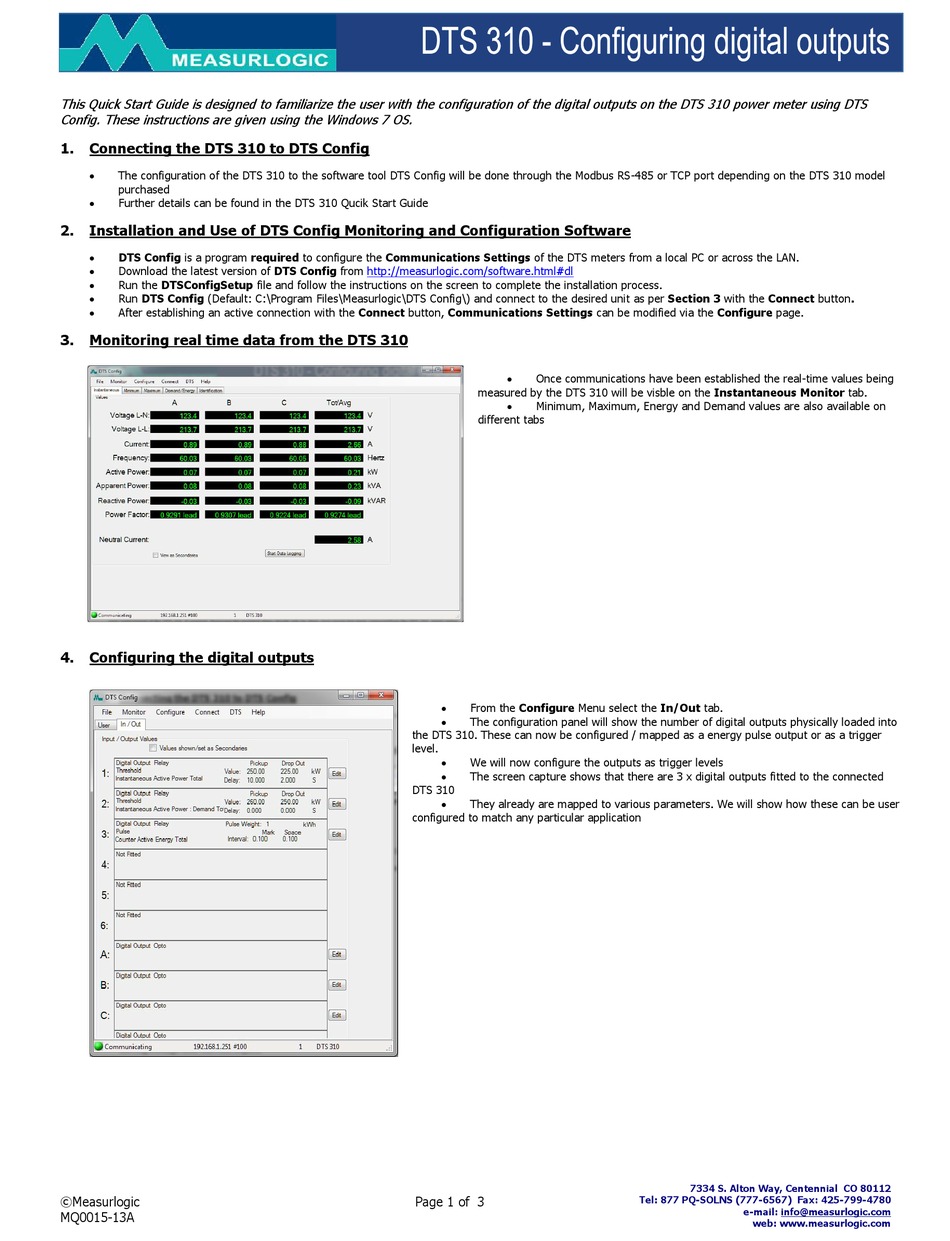

Measurlogic DTS 310 Qucik Start Manual

This Quick Start Guide is designed to familiarize the user with the configuration of the digital outputs on the DTS 310 power meter using DTS
Config. These instructions are given using the Windows 7 OS.
1. Connecting the DTS 310 to DTS Config
 The configuration of the DTS 310 to the software tool DTS Config will be done through the Modbus RS-485 or TCP port depending on the DTS 310 model
purchased
 Further details can be found in the DTS 310 Qucik Start Guide
2. Installation and Use of DTS Config Monitoring and Configuration Software
DTS Config is a program required to configure the Communications Settings of the DTS meters from a local PC or across the LAN.

Download the latest version of DTS Config from

Run the DTSConfigSetup file and follow the instructions on the screen to complete the installation process.

 Run DTS Config (Default: C:\Program Files\Measurlogic\DTS Config\) and connect to the desired unit as per Section 3 with the Connect button.
After establishing an active connection with the Connect button, Communications Settings can be modified via the Configure page.

3. Monitoring real time data from the DTS 310
4. Configuring the digital outputs
©Measurlogic
MQ0015-13A
http://measurlogic.com/software.html#dl
 Once communications have been established the real-time values being
measured by the DTS 310 will be visble on the Instantaneous Monitor tab.
Minimum, Maximum, Energy and Demand values are also available on

different tabs
From the Configure Menu select the In/Out tab.

The configuration panel will show the number of digital outputs physically loaded into

the DTS 310. These can now be configured / mapped as a energy pulse output or as a trigger
level.
We will now configure the outputs as trigger levels

 The screen capture shows that there are 3 x digital outputs fitted to the connected
DTS 310
They already are mapped to various parameters. We will show how these can be user

configured to match any particular application
