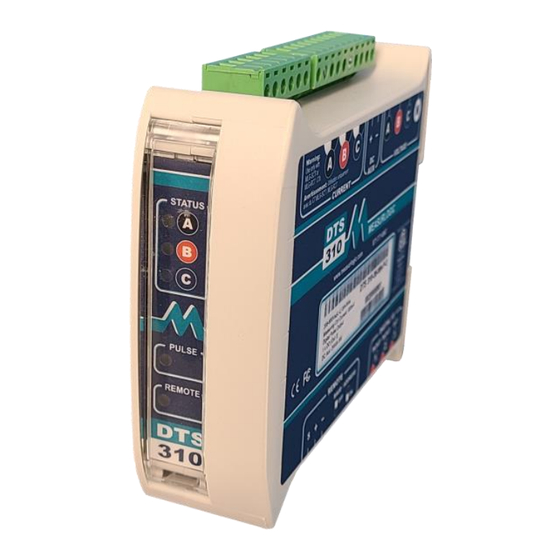

DTS 310 kWh meter with pulse output
This Quick Start Guide is designed to familiarize the user with the connection and configuration
of the DTS 310 DIN rail mounted single / 3 phase power & energy meter with:
•
kWh pulse output.
DTS 310 Model #
DTS 310-34-NN-P-4
DTS 310-36-NN-P-3
DTS 310-36-NN-P-6
If you do not see your specific meter model number above please contact
Measurlogic Inc. at 303-805-5252 or info@measurlogic.com.
©Measurlogic
R25A
Applicable DTS 310 Models
Measurlogic Part #
D310-0056
D310-0136
D310-0180
For more information please use the DTS 310
installation guide
https://www.measurlogic.com/product/dts-310/
Page 1 of 5
•
208V-480V 3ph 3 or 4 wire
•
333mV / Rogowski CTs
•
Self-powered
•
kWh pulse output
•
208V-600V 3ph 3 or 4 wire
•
333mV / Rogowski CTs
•
24Vdc auxiliary powered
•
kWh pulse output
•
208V-600V 3ph 4 wire
•
333mV / Rogowski CTs
•
Self-powered
•
kWh pulse output
ATTENTION
Description
7268 S. Tucson Way, Centennial CO 80112
Tel: 877-777-6567
e-mail: info@measurlogic.com
web: www.measurlogic.com
Advertisement
Related Manuals for Measurlogic DTS 310-3 NN-P Series
Summary of Contents for Measurlogic DTS 310-3 NN-P Series
- Page 1 • Self-powered • kWh pulse output If you do not see your specific meter model number above please contact Measurlogic Inc. at 303-805-5252 or info@measurlogic.com. ATTENTION For more information please use the DTS 310 installation guide https://www.measurlogic.com/product/dts-310/ 7268 S. Tucson Way, Centennial CO 80112 ©Measurlogic...
- Page 2 (12 awg) wire. The wires are connected by means of screw terminals that clamp down onto the input wires. The voltage/PT inputs require fuses, not included, (see diagrams below) and should be rated at 1A 600Vac. Measurlogic can provide an in-line fuse kit as an option if required.
- Page 3 The two other terminals – marked “IN/OUT 1” and “IN/OUT 2” are not used for a kWh energy pulse pulse meter meter. DO NOT connect any wires to these terminals. 7268 S. Tucson Way, Centennial CO 80112 ©Measurlogic Page 3 of 5 Tel: 877-777-6567 R25A e-mail: info@measurlogic.com web: www.measurlogic.com...
- Page 4 Rogowski Coil CTs – This is a flexible CT. Measurlogic DTS meters can accept Rogowski Coil CTs directly without the need for an external integrator. The sensitivity of this type of current sensor is specified in milli-volts (mV) per 1000A at 60Hz. Different models of Rogowski Coils have different sensitivities, which must be selected from the tables and the switches [SW.1..SW.3] set accordingly.
- Page 5 2500A Rogowski Coil 70mV per 1000A @ 60Hz Used at nominal 800A The Maximum Current for this Rogowski Coil is 5000A 7268 S. Tucson Way, Centennial CO 80112 ©Measurlogic Page 5 of 5 Tel: 877-777-6567 R25A e-mail: info@measurlogic.com web: www.measurlogic.com...
