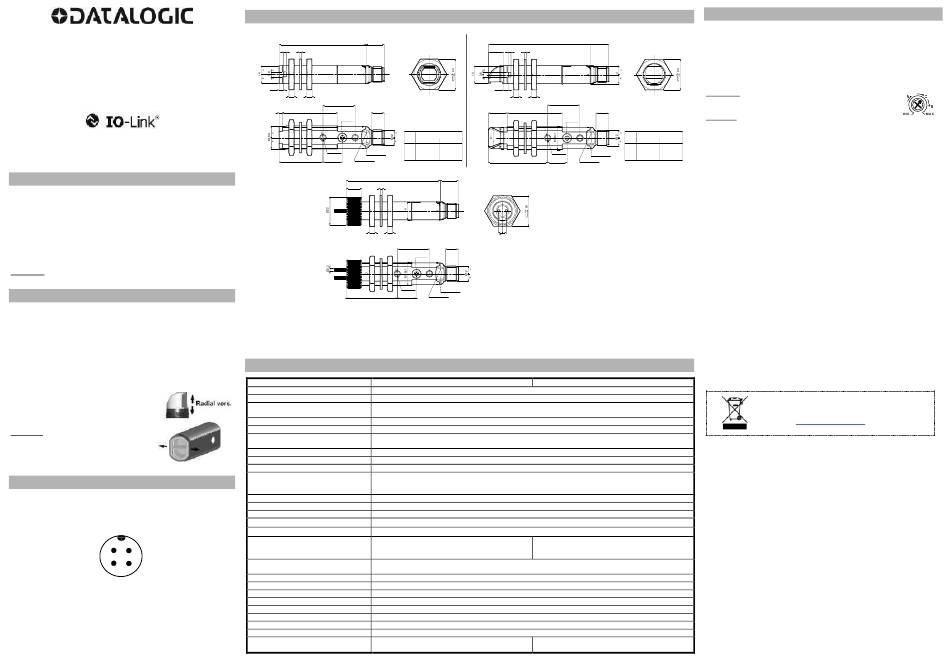

Datalogic S5N-P Series Instruction Manual

This product is covered by one or more of the following patents.
European Patent 851,211 B1; 1,111,690 B1; 1,148,346 B1; 1,209,487 B1.
Italian Patent IT 1,321,772.
S5N-Px SERIES
INSTRUCTION MANUAL
Information on IO-Link communication is available on the last
page of this manual.
CONTROLS
OUTPUT LED (S5N-Px...B01/C01/T01)
The yellow LED ON indicates that the NO output status is closed.
STABILITY LED (S5N-Px...B01/C01)
The green LED ON indicates that the received signal has a reserve
greater than 30% compared to the output switching value.
TRIMMER (S5N-Px...B01/C01/T01)
The trimmer can be used to adjust sensitivity; the operating distance
increases turning the trimmer clockwise.
WARNING: The trimmer rotation is limited to 270° by a mechanical stop.
Do not apply excessive torque when adjusting (max 40 Nmm).
INSTALLATION
The sensor can be fixed by means of the M18x1 threaded body through
a  18mm hole, using the specific washer and the two CH.24 nuts
enclosed (1.5Nm maximum tightening torque).
Alternatively, the sensor can be mounted through the two housing's
holes using two screws (M3x22 or longer) and washer.
Amongst the various possible solutions, we suggest to choose the
combination that offers the best visibility of the signalling LEDs and the
easiest access to the trimmer.
Wide range of accessories available: 22mm nuts, h=8mm, (2Nm
maximum tightening torque) guarantee an improved torque and various
orientable fixing brackets ease the sensor
positioning (please refer to the accessories
listed in the general catalogue).
The operating distance is measured from the
front surface of the sensor lens.
C models: To improve the detection, the
object has to be moved closer or further away
from the front surface of the sensor lens.
In case of lateral translation, the object must
move as indicated in the figure.
CONNECTIONS
The connections are compliant to the EN 60947-5-2 standard.
M12 CONNECTOR
N.C. OUTPUT + 10 ... 30 Vdc
2 1
3 4
N.O. OUTPUT/
0 V -
IO-Link
AXIAL VERSION
L
14.5
2 1.5
3.5
4 4
25
X
2.5 10
TRIMMER
M O D E L S
with trimmer
L 67
X 43
N°.2 Ø3.8
STABILITY LED
X1 34
X1
15 OUTPUT LED
FIBRE OPTIC VERSION
72.5
12 1.5
4 4
25
TRIMMER
N°.2 Ø3.8
OUTPUT LED
39.5 15
TECHNICAL DATA
S5N-PA AXIAL VERSION
Power supply:
Ripple:
Current consumption
(output current excluded):
Outputs:
Output current:
Capacitive load:
Output saturation voltage:
Response time:
Switching frequency:
Indicators:
Setting:
Operating temperature:
Storage temperature:
Insulating strength:
Insulating resistance:
Operating distance (typical values): B01: 0.1...3.5 m on R2
T01: 0.1...1 m on R2
Emission type:
Ambient light rejection:
Vibrations:
Shock resistance:
Housing material:
Lens material:
Mechanical protection:
Connections:
Weight:
AtEx 2014/34/EU: I I 3G EX nA II T6
I I 3D EX tD A22 IP67 T85°C
DIMENSIONS
RADIAL VERSION
L
14.5
12 2 1.5
3.5
4 4
25
X
14.5 10
TRIMMER
without trimmer
57
42
N°.2 Ø3.8
STABILITY LED
24
X1
15 OUTPUT LED
14.5
CABLE VERSION
6.2
=
10
OUTPUT LED
STABILITY LED
S5N-PR RADIAL VERSION
10 ... 30 Vdc (limit values)
2 Vpp max.
35 mA max.
NO and NC; PNP or NPN (short-circuit protection)
100 mA max.
C <= 1.5 uF @24V, I = 100mA
max load
C <= 3.5 uF @24V, I = 10mA
max load
2 V max.
0.5 ms (2 ms mod.F01/G00)
1KHz (250 Hz mod.F01/G00)
OUTPUT LED (YELLOW) excluding mod.G00
STABILITY LED (GREEN) (mod.B01/C01/C21/E01/F01)
POWER ON LED (GREEN) (mod.G00)
sensitivity trimmer (mod.B01/C01/C21/E01/F01/T01)
-25 ... 55 °C
-25 ... 70 °C
500 Vac 1 min., between electronics and housing
>20 M 500 Vdc, between electronics and housing
B01: 0.1...2 m on R2
C01: 0...60 cm C01: 0...35 cm
T01: 0.1...1 m on R2
red (630 nm) (mod. E01) / red (660 nm) (mod.B01/T01) /
infrared (880nm) (mod. C01/C21/G00)
according to EN 60947-5-2
0.5 mm amplitude, 10 ... 55 Hz frequency, for every axis (EN60068-2-6)
11 ms (30 G) 6 shock for every axis (EN60068-2-27)
PBT
PMMA
IP67
M12 - 4 pole connector
25 g. max. connector vers.
SETTING
Setting of S5N-Px...B01/T01
Position the sensor and reflector on opposite sides.
Turn the sensitivity trimmer to the maximum position.
Moving the sensor both vertically and horizontally, determine the power on and off
points of the yellow LED (OUT) and then mount the sensor in the middle of the
points defined. Optimum operation is obtained when the green LED (mod.B01) is
ON and the yellow LED is OFF.
B01 models: If necessary reduce sensitivity in order to detect very
small targets. In order to improve alignment, repeat the procedure
detailed above whilst progressively reducing the sensitivity.
T01 model: Turn the sensitivity trimmer counterclockwise until the
yellow LED turns ON (pos.A). Turn slowly the trimmer again clockwise until the
yellow LED turns OFF (Operating condition, pos.B).
M O D E L S
Setting of S5N-Px...C01
with trimmer without trimmer
L 79 69 Turn the sensitivity trimmer to minimum: the green LED is ON, the yellow LED is
X 43 42
OFF. Position the target to detect in front of the sensor or of the fibre terminals.
X1 46 36
Turn the sensitivity trimmer clockwise until the yellow LED turns ON (Target
detected state, pos.A).
mm
Remove the target, the yellow LED turns OFF.
Turn the sensitivity trimmer clockwise until the yellow LED turns ON (Background
detected state, pos.B).
The trimmer reaches maximum if the background is not detected.
10
Turn the trimmer to the intermediate position C, between the two positions A and
B. The green LED must be ON.
STABILITY LED
