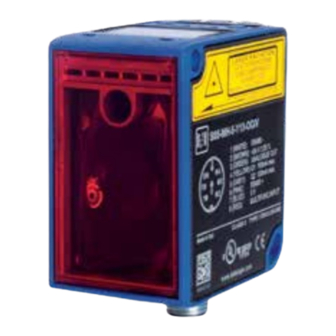

Datalogic S85 Quick Start Manual

Laser distance sensor for precise measurement up to 20 m with millimetric resolution and repeatability through the time of flight technology
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
DISTANCE SENSORS
S85
Distance sensor (90% White target)
Repeatability
Accuracy
Resolution
Light emission
Response time
Serial interface
Setting
Power supply
Output
Connection
Approximate dimensions (mm)
Housing material
Mechanical protection
134
CATALOG | Photoelectric Sensors
LASER DISTANCE SENSOR FOR
PRECISE MEASUREMENT UP TO 20 M
WITH MILLIMETRIC RESOLUTION AND
REPEATABILITY THROUGH THE TIME
OF FLIGHT TECHNOLOGY
• Direct Time Of Flight Technology
• Class 2 visible red LASER for an easy alignment with the target
• Measuring range up to 10m or 20m in the advanced model
• 1 mm resolution, 7 mm accuracy, 1 mm repeatability
• 4-20 mA or 0-10 V scalable analog output and 2 digital outputs
• RS485 serial interface in the advanced model
• Standard M12 connector
• IP67 Industrial metal housing
APPLICATIONS
• Automated warehousing
• Processing and Packaging machinery
• Industrial vehicles
• Automotive
S85
Vdc
PNP
NPN
Push pull
other
connector
C ATA L O G
S E C T I O N
0,2...20 m (S85...Y13)
0,2...10 m (S85...Y03)
1...2 mm
7...10 mm
1 mm
red LASER (class 2)
30 ms (S85...Y03)
15...30 ms (S85...Y13)
RS485 (S85...Y13)
Display (S85...Y13)
push-buttons (S85...Y03)
24 Vdc +/- 20%
•
•
•
Analog output: 4...20 mA or 0...10 V
•
60x72x37
Zamak
IP67
DS
