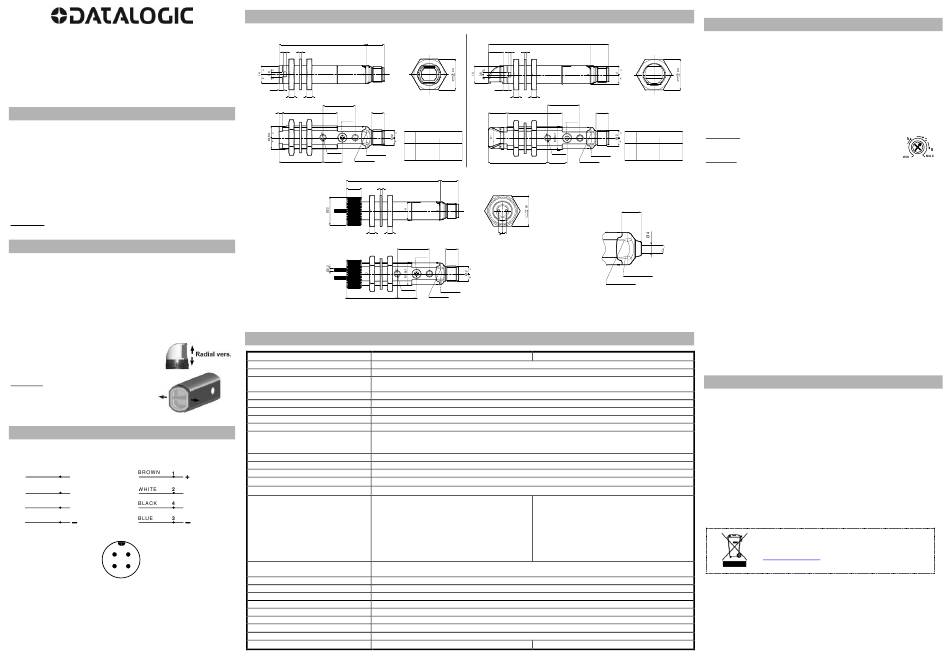

Datalogic S5N-P PP Series Instruction Manual

This product is covered by one or more of the following patents.
European Patent 851,211 B1; 1,111,690 B1; 1,148,346 B1; 1,209,487 B1.
Italian Patent IT 1,321,772.
S5N-Px-...-PP/NN SERIES
INSTRUCTION MANUAL
CONTROLS
OUTPUT LED (S5N-Px...A00/B01/C01/C10/C21/D00/E01/F01/T01)
The yellow LED ON indicates that the NO output status is closed.
STABILITY LED (S5N-Px...B01/C01/C21/E01/F01)
The green LED ON indicates that the received signal has a reserve
greater than 30% compared to the output switching value.
POWER ON LED (S5N-Px...G00)
The green LED indicates that the sensor is operating.
TRIMMER (S5N-Px...B01/C01/C21/E01/F01/T01)
The trimmer can be used to adjust sensitivity; the operating distance
increases turning the trimmer clockwise.
WARNING: The trimmer rotation is limited to 270° by a mechanical stop.
Do not apply excessive torque when adjusting (max 40 Nmm).
INSTALLATION
The sensor can be fixed by means of the M18x1 threaded body through
a  18mm hole, using the specific washer and the two CH.24 nuts
enclosed (1.5Nm maximum tightening torque).
Alternatively, the sensor can be mounted through the two housing's
holes using two screws (M3x22 or longer) and washer.
Amongst the various possible solutions, we suggest to choose the
combination that offers the best visibility of the signalling LEDs and the
easiest access to the trimmer.
Wide range of accessories available: 22mm nuts, h=8mm, (2Nm
maximum tightening torque) guarantee an improved torque and various
orientable fixing brackets ease the sensor
positioning (please refer to the accessories
listed in the general catalogue).
The operating distance is measured from the
front surface of the sensor lens.
C models: To improve the detection, the
object has to be moved closer or further away
from the front surface of the sensor lens.
In case of lateral translation, the object must
move as indicated in the figure.
CONNECTIONS
The connections are compliant to the EN 60947-5-2 standard.
S5N-Px...G00
BROWN 1
+ 10 ... 30 Vdc
WHITE 2
NC OUTPUT
BLACK 4
NO OUTPUT
BLUE 3
0 V
M12 CONNECTOR
2 1
3 4
AXIAL VERSION
L
14.5
2 1.5
3.5
4 4
25
X
2.5
TRIMMER
N°.2 Ø3.8
STABILITY LED
X1
15 OUTPUT LED
FIBRE OPTIC VERSION
12
4
39.5
Power supply:
Ripple:
Current consumption
(output current excluded):
Outputs:
Output current:
Output saturation voltage:
Response time:
Switching frequency:
Indicators:
Setting:
Operating temperature:
Storage temperature:
10 ... 30 Vdc
Insulating strength:
Insulating resistance:
TEST +
Operating distance (typical values):
TEST -
0 V
Emission type:
Ambient light rejection:
Vibrations:
Shock resistance:
Housing material:
Lens material:
Mechanical protection:
Connections:
Weight:
AtEx 2014/34/EU:
DIMENSIONS
RADIAL VERSION
L
12 2 1.5
3.5
4 4
X
10 14.5
M O D E L S
with trimmer without trimmer
L 67 57
X 43 42
N°.2 Ø3.8
X1 34 24
X1
72.5 14.5
1.5
4 6.2
=
25 10
TRIMMER
N°.2 Ø3.8
STABILITY LED
OUTPUT LED
15
TECHNICAL DATA
S5N-PA AXIAL VERSION
10 ... 30 Vdc (limit values)
2 Vpp max.
35 mA max.
NO and NC; PNP or NPN (short-circuit protection)
100 mA max.
2 V max.
0.5 ms (2 ms mod.F01/G00)
1KHz (250 Hz mod.F01/G00)
OUTPUT LED (YELLOW) excluding mod.G00
STABILITY LED (GREEN) (mod.B01/C01/C21/E01/F01)
POWER ON LED (GREEN) (mod.G00)
sensitivity trimmer (mod.B01/C01/C21/E01/F01/T01)
-25 ... 55 °C
-25 ... 70 °C
500 Vac 1 min., between electronics and housing
>20 M 500 Vdc, between electronics and housing
A00: 0.1...4 m on R2
B01: 0.1...3.5 m on R2
C01: 0...60 cm
C10: 0...10 cm
C21: 0...35 cm
D00: 0.5...10 cm
F01/G00: 0...25 m
E01: 30 mm with OF-42 / 100 mm with OF-43
T01: 0.1...1 m on R2
red (630 nm) (mod. D00/E01) / red (660 nm) (mod.B01/T01) /
infrared (880nm) (mod. A00/C01/C10/C21/G00)
according to EN 60947-5-2
0.5 mm amplitude, 10 ... 55 Hz frequency, for every axis (EN60068-2-6)
11 ms (30 G) 6 shock for every axis (EN60068-2-27)
PBT
PMMA
IP67
2 m cable  4 mm / M12 - 4 pole connector
75 g. max. cable vers. / 25 g. max. connector vers.
II 3D EX tc IIIC IP67 T85°C
Setting of S5N-Px...A00
14.5
Position the sensor and reflector on opposite sides.
Find the points where the yellow LED (OUT) is wswitched ON and OFF in
both vertical and horizontal posizionts, and fix the sensor in the center
between these points.
Setting of S5N-Px...B01/T01
Position the sensor and reflector on opposite sides.
Turn the sensitivity trimmer to the maximum position.
Moving the sensor both vertically and horizontally, determine the power on and off
25
points of the yellow LED (OUT) and then mount the sensor in the middle of the
10
points defined. Optimum operation is obtained when the green LED (mod.B01) is
TRIMMER
ON and the yellow LED is OFF.
B01 models: If necessary reduce sensitivity in order to detect very
M O D E L S
with trimmer without trimmer
small targets. In order to improve alignment, repeat the procedure
L 79 69
detailed above whilst progressively reducing the sensitivity.
X 43 42
STABILITY LED
X1 46 36
T01 model: Turn the sensitivity trimmer counterclockwise until the
15 OUTPUT LED
yellow LED turns ON (pos.A). Turn slowly the trimmer again clockwise until the
yellow LED turns OFF (Operating condition, pos.B).
mm
Setting of S5N-Px...F01/G00/E01 with OF-43 (P/R fibre-optics)
Position the sensors (fibre terminals) on opposite sides.
CABLE VERSION Turn the sensitivity trimmer to maximum: moving the sensor both vertically and
horizontally, determine the power on and off points of the yellow LED (OUT) and
10
then mount the sensor in the middle of the points defined. Optimum operation is
obtained when the green LED is ON and the yellow LED is OFF (the output
function and the relative LEDs are inverted in the E01 model with the OF-43 fibre).
If necessary, reduce sensitivity using the trimmer, in order to detect very small
targets. In order to improve alignment, repeat the procedure detailed above whilst
progressively reducing the sensitivity.
Setting of S5N-Px...C01/C21/E01 with OF-42 (proximity fibre)
Turn the sensitivity trimmer to minimum: the green LED is ON, the yellow LED is
STABILITY LED
OFF. Position the target to detect in front of the sensor or of the fibre terminals.
OUTPUT LED
Turn the sensitivity trimmer clockwise until the yellow LED turns ON (Target
detected state, pos.A).
Remove the target, the yellow LED turns OFF.
Turn the sensitivity trimmer clockwise until the yellow LED turns ON (Background
detected state, pos.B).
The trimmer reaches maximum if the background is not detected.
Turn the trimmer to the intermediate position C, between the two positions A and
B. The green LED must be ON.
Setting of S5N-Px...C10/D00
S5N-PR RADIAL VERSION
The operating distance range of these sensors is factory preset: please consider
this feature when positioning.
The TEST+ and TEST- inputs can be used to inhibit the emitter and verify
that the system is correctly operating.
The receiver output should switch when the test is activated while the beam
is uninterrupted.
The inputs activating voltage range is 10 ... 30 VDC.
Datasensing S.r.l.
Strada S. Caterina 235 - 41122 Modena - Italy
B01: 0.1...2 m on R2 Tel: +39 059 420411 - Fax: +39 059 253973 - www.datasensing.com
C01: 0...35 cm
The warranty period for this product is 36 months. See General Terms and Conditions of Sales for
C10: 0...8 cm
further details.
D00: 0...8 cm
.
F01/G00: 0...20 m
T01: 0.1...1 m on R2
© 2007 - 2022 Datasensing S.r.l  ALL RIGHTS RESERVED  Without limiting the rights under
copyright, no part of this documentation may be reproduced, stored in or introduced into a retrieval
system, or transmitted in any form or by any means, or for any purpose, without the express written
permission of Datasensing S.r.l. ♦ Datasensing and the Datasensing logo are trademarks of
Datasensing S.r.l. ♦ Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in
many countries, including the U.S and the E.U.
SETTING
TEST FUNCTION (S5N-Px...G00)
For information about the disposal of Waste Electrical and
Electronic Equipment (WEEE), please refer to the website at
www.datasensing.com.
806000190 Rev. A
