Summary of Contents for MERLYN A1200A0

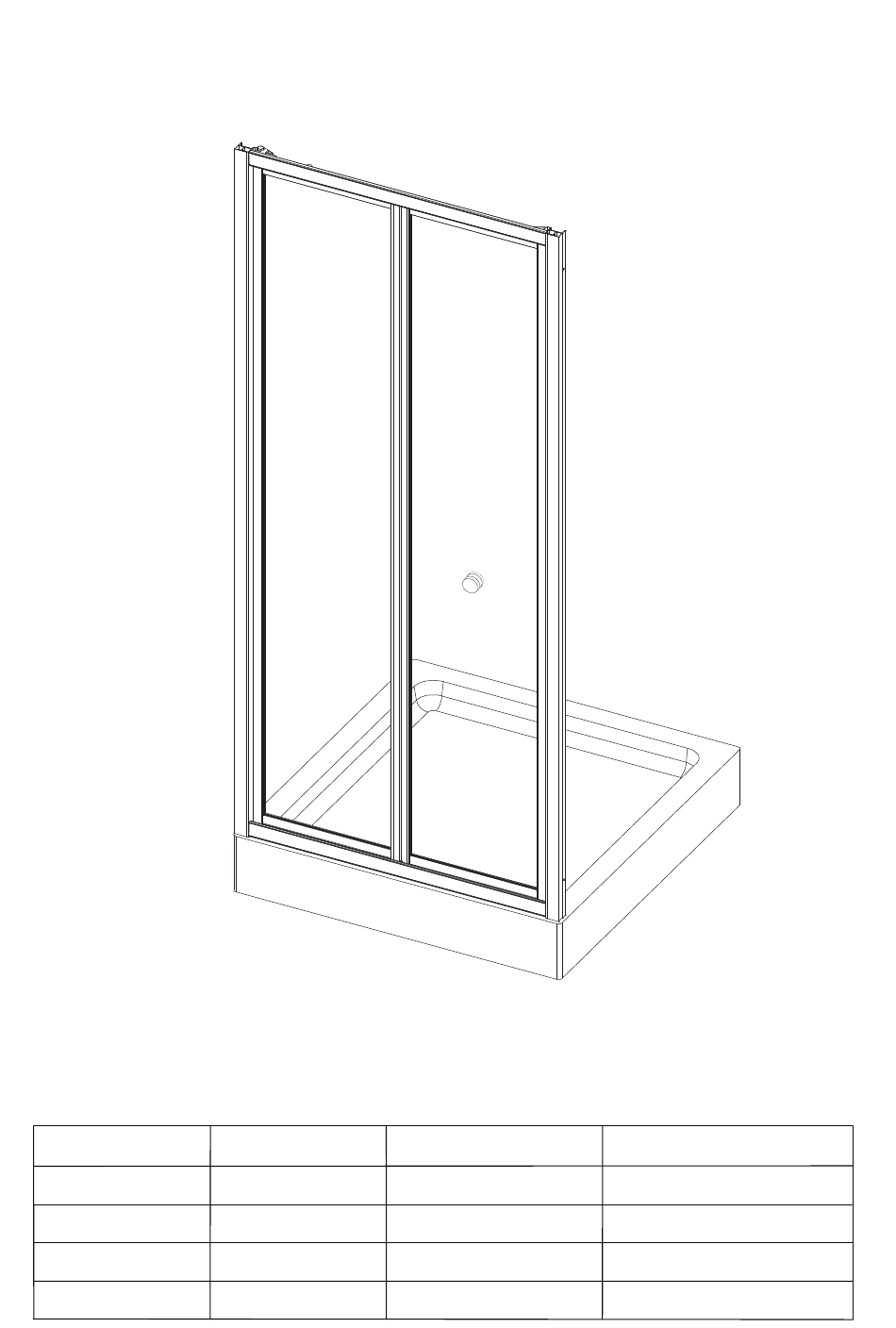

- Page 1 BIFOLD DOOR INSTALLATION GUIDE Opening space Adjustment Product code Size A1200A0 650-690 A1200B0 710-750 A1200C0 750-790 A1200D0 850-890...
- Page 2 ATTENTION If you install the product in a way that differs from this manual this will void all guarantees. Before installation check that the product meets all your requirements and is not damaged. By proceeding with installation, You accept the condition of the product. The wall plugs supplied with the installation kit are for use in solid walls.
- Page 3 Ø3mm Ø3mm 4x30mm 4x16mm 2SY51 2SY50 A12S0023 C070 2SP12 C056 C056 Please ensure your tray is 100% level in all directions before you fit your enclosure. 100% Level...
- Page 4 Determine your step in from the edge of the tray. Measure your x and y dimension. Your measurements must fall within the below table of adjustments marked as X. Level your wall profiles and mark the points of fixing. A02S0020 CODE Ø6mm A1200A0 650-690 710-750 A1200B0 2SP12 A1200C0 750-790...
- Page 5 When the enclosure is between your two walls you can then fix your wall profiles to the walls using the fixing screws provided. Equalise the gaps on either side of the upright profiles and fix using 2SY50. C056 C070 (Ø3mm) 12mm L1=L2 2SY51...
-
Page 6: Side Panel
SIDE PANEL INSTALLATION GUIDE Adjustment Product code Size A1207B0 730-750 770-790 A1207D0 A1207E0 870-890... - Page 7 ATTENTION If you install the product in a way that differs from this manual this will void all guarantees. Before installation check that the product meets all your requirements and is not damaged. By proceeding with installation, You accept the condition of the product. The wall plugs supplied with the installation kit are for use in solid walls.
- Page 8 4X16mm C070 2SY50 Please ensure your tray is 100% level in all directions before fitting your enclosure. 100% Level...
- Page 9 CODE A1207B0 730-750 770-790 A1207D0 870-890 A1207E0 A02S0020 Ø6mm 2SP12 Use wall profile from door After your wall profiles have been fixed you can square your side panel on the tray and fix the wall profiles to the upright profiles as shown below. INSIDE 2SY51 C070...
- Page 10 The same process is used to fix the corner post to the upright profile of the enclosure. C056 (Ø3mm) 2SY50 CO70 24 h.
