Hearth & Home SimpliFire SF-WMS38 Service Manual

Pedestal, stones, glass front & mounting bracket

Advertisement

Quick Links

(Pedestal, Stones, Glass Front & Mounting Bracket)
Leave this manual with party responsible for use
and operation.
NOTICE! DO NOT discard this manual.
and maintenance instructions included.
NOTICE! DO NOT discard any hardware while
servicing.
It must be reused.
WARNING: If the information in these
instructions is not followed exactly it may
result in personal injury and/or property
damage.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during
installation and service. Sheet metal edges are sharp.
Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Pliers
Phillips screwdriver
Electric drill and bits (1/4 in.)
Safety glasses
Flat blade screwdriver
WARNING! Risk of Shock! Always unplug the cord
before moving or servicing.
SERVICE MANUAL
Model: SF-WMS38
- Instructions -
Important service
SimpliFire • SF-WMS38 Service Manual • 2040-916 Rev. B • 5/14

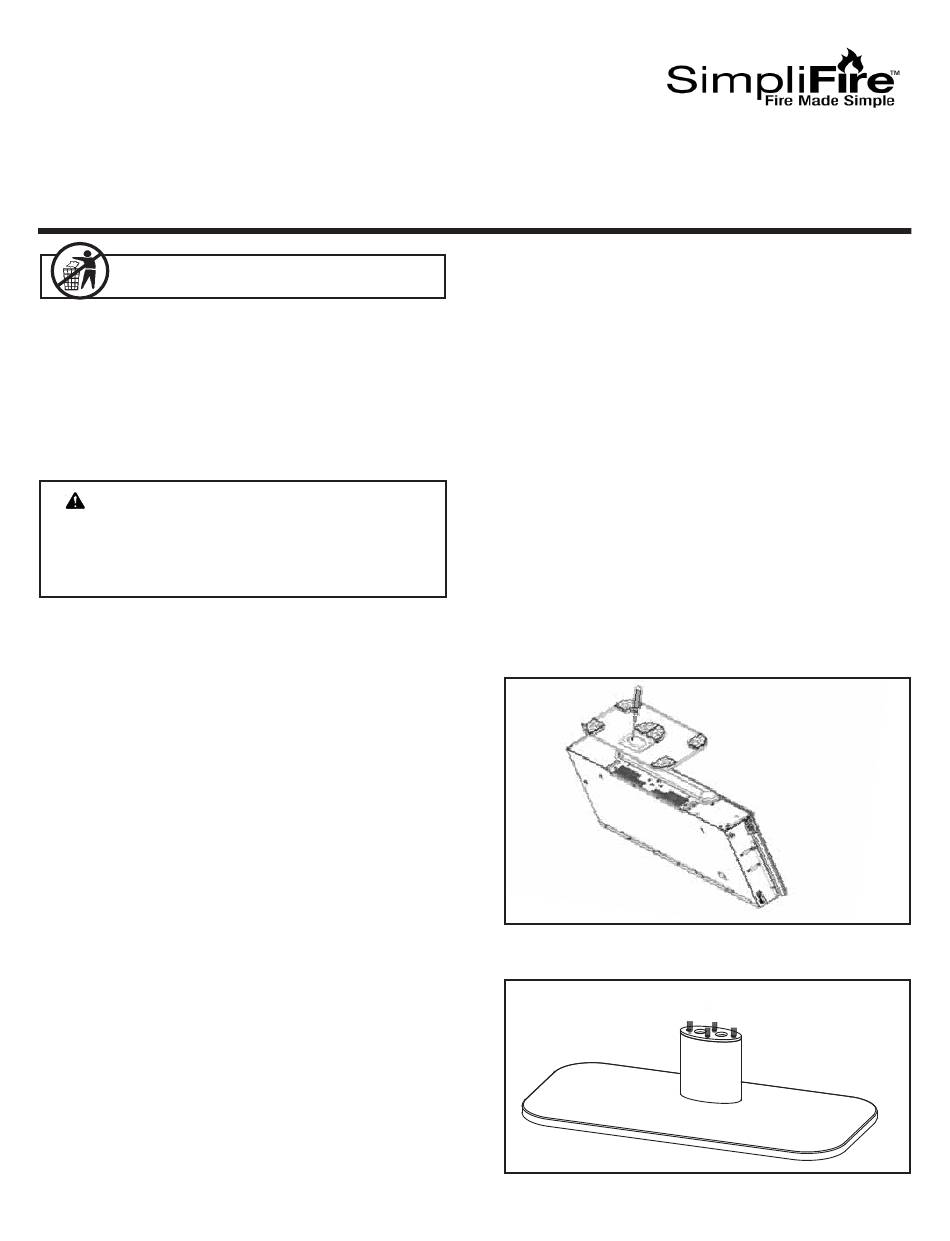

Pedestal Replacement
To Remove Pedestal:
Lay the fi rebox on its back.
Loosen each of the four M5x16 machine screws
located in the pedestal base until free of the fi rebox.
Note: The machine screws are attached to the ped-
estal and will not come completely out.
Remove the pedestal.
To Install Pedestal:
Align the location tabs and holes in the pedestal with
the threaded inserts in the fi rebox.
Thread each of the four M5x16 machine screws
located in the pedestal into the threaded inserts in
the fi rebox.
Check the pedestal for alignment and tighten the
screws.
Figure 1 Attaching Pedestal to Firebox
Machine Screws are attached to Pedestal
Figure 2 Pedestal Machine Screws
