GLASS-32LINEAR, GLASS-36LINEAR, GLASS-42LINEAR
Models: COSMO32-IFT, COSMO42-IFT, RAVE3012-IFT, RAVE4013-IFT, JADE32IN, JADE42IN,
JADE42IL, COSMO32-IFT-B, COSMO36-IFT-B, COSMO42-IFT-B, RAVE32-IFT-B, RAVE36-IFT-B,
RAVE42-IFT-B, JADE32IN-B, JADE42IN-B, JADE42IL-B, DVLINEAR36, SLR-X-AU, B41L-AU
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves and safety glasses during installation. Sheet metal
edges are sharp.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
NOTICE: Handle refractory panels with care. Refractory
may chip or crack if dropped or impacted.
TOOLS
Screw gun equipped with 1/4 in. socket or
1/4 in. wrench or socket
Standard Flathead Screwdriver
KIT COMPONENTS
(1) Left Refractory Panel
(1) Right Refractory Panel
(1) Back Refractory Panel
(2) Side Glass Retaining Brackets with Screws
(1) Back Glass Retaining Bracket with Screws (36 Only)
Hearth & Home Technologies • GLASS-32LINEAR, GLASS-36LINEAR, GLASS-42LINEAR Installation Instructions • 2491-931 Rev. D • 5/20
Installation Instructions
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
INSTALLATION
CAUTION! Risk of Burns! The fireplace should be turned
off and cooled before glass refractory is installed.
1. Remove decorative front and glass assembly. Refer
to appliance installation manual for glass removal and
replacement instructions.

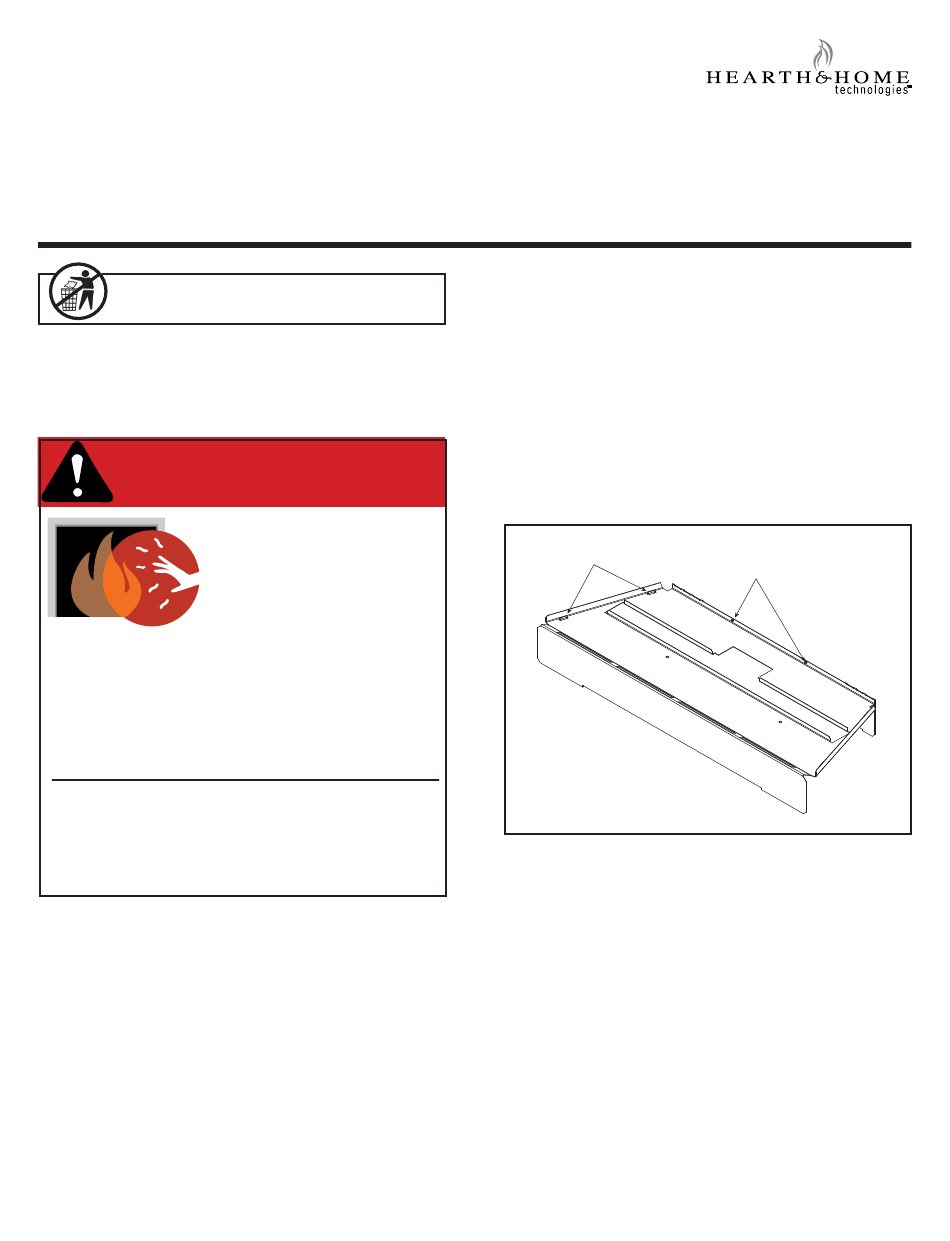

2. Locate the two holes on the back flange of the base-
pan. Screw two self-tapping screws through the base-
pan and into the back wall of the firebox. See Figure 1.
3. Bend the bottom glass tabs, two on each side, up as
shown in Figure 1.
BOTTOM GLASS TABS
Figure 1. Bend Bottom Glass Tabs Up
4. Rear Panel: Install back glass panel as shown in Fig-
ure 2. Ensure the smooth side is facing toward the
front of the fireplace. Set the back panel tight against
the flange of the basepan and tilt the glass up toward
the back of the firebox. Back panel will be held in
place by the side panels. Hold back panel in place
while installing the left and right panels.
GLASS-36LINEAR Only: Install back glass retaining
bracket by centering it left and right and attaching it using
two self-tapping screws. See Figure 3.
5. Side Panels: Position glass panel between bottom
glass tabs and side wall of firebox. See Figure 4.
BACK FLANGE HOLES
1
