Summary of Contents for AEG NBE7P731AT

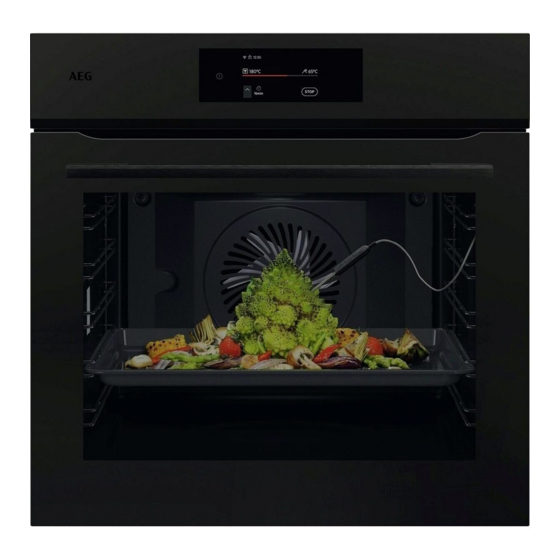

- Page 1 EN User Manual | Oven NBE7P731AB NBE7P731AT TE7PB731AT aeg.com\register...
- Page 2 INSTALLATION (*mm) min. 550 4x25 min. 560 www.youtube.com/electrolux min. 1500 www.youtube.com/aeg How to install your AEG/Electrolux Oven with Hob - Built Under installation H05 V V - F (*mm) min. 550 4x25 min. 578 max. 590 min. 560 www.youtube.com/electrolux min. 1500 www.youtube.com/aeg...
- Page 3 Welcome to AEG! Thank you for choosing our appliance. Get usage advice, brochures, troubleshooting, service and repair information: www.aeg.com/support Subject to change without notice. CONTENTS 1. SAFETY INFORMATION................3 2. SAFETY INSTRUCTIONS................5 3. PRODUCT DESCRIPTION................8 4. CONTROL PANEL..................8 5.
- Page 4 • Children should be supervised to ensure that they do not play with the appliance and mobile devices with the app. • Keep all packaging away from children and dispose of it appropriately. • WARNING: The appliance and its accessible parts become hot during use.
- Page 5 • Use only the food sensor (core temperature sensor) recommended for this appliance. • To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence. •...
- Page 6 • The electrical installation must have an – do not put aluminium foil directly on isolation device which lets you disconnect the bottom of cavity of the appliance. the appliance from the mains at all poles. – do not put water directly into the hot The isolation device must have a contact appliance.
- Page 7 2.5 Pyrolytic cleaning temperature pyrolytic cleaning operation of all pyrolytic ovens and can be also a source for low level harmful fumes. WARNING! Risk of Injury / Fires / Chemical 2.6 Internal lighting Emissions (Fumes) in Pyrolytic Mode. WARNING! • Before carrying out the pyrolytic cleaning and initial preheating remove from the Risk of electric shock.
- Page 8 3. PRODUCT DESCRIPTION 3.1 General overview Control panel Display Socket for the food sensor Heating element Lamp Shelf support, removable Shelf positions 4. CONTROL PANEL 4.1 Control panel overview To confirm the selection / setting. To navigate to the next or previous level in the menu.
- Page 9 The software in this product contains whenever it is necessary. components that are based on free and open Adjust the settings: Language, Time of Day, source software. AEG acknowledges the Wireless connection. contributions of the open software and robotics communities to the development 5.2 Wireless connection...
- Page 10 6. Clean the appliance and the accessories 7. Put the accessories and removable shelf only with a microfibre cloth, warm water supports back to their initial position. and a mild detergent. 6. DAILY USE WARNING! Bottom Refer to Safety chapters. Evenly brown bottom of food.
- Page 11 When the function ends, check if the food is ready. Extend the cooking time, if needed. Roast Get a crispy outside and tender inside for 6.4 Favourites meat, poultry, or vegetables. Bread Baking Use this function to prepare bread and bread rolls with professional-like result in terms of This functionality is available for selected crispiness, colour and crust gloss.
- Page 12 Key Tones To turn the tone of the touch fields on Standby To customize the screen features and and off. It is not possible to mute the Screen Per‐ shortcuts. sonalisation tones for Buzzer Vol‐ To set the volume of key tones and Submenu: Connections signals.
- Page 13 time, set the cooking time. Refer to the 'Clock functions' chapter. (°C) 7.3 Cooling fan 30 - 115 12.5 When the appliance operates, the cooling fan 120 - 195 turns on automatically to keep the surfaces of 200 - 245 the appliance cool.
- Page 14 9. USING THE ACCESSORIES • - the temperature inside the appliance. WARNING! It should be at least 25 °C higher than the Refer to Safety chapters. food core temperature. • - the food core temperature. 9.1 Inserting accessories Recommendations: • Ingredients should be at room Accessories available depending temperature.
- Page 15 cooking. Use a solid ingredient to achieve • Sound Alarm - when food reaches the that. Use the rim of the baking dish to core temperature, the signal sounds. support the silicone handle of Food • Sound Alarm and stop cooking - when Sensor.
- Page 16 Sweet rolls, 16 baking tray or dripping pan 25 - 35 pieces Swiss Roll baking tray or dripping pan 15 - 25 Whole fish, 0.2 kg baking tray or dripping pan 15 - 25 Cookies, 16 pieces baking tray or dripping pan 20 - 30 Macaroons, 24 baking tray or dripping pan...
- Page 17 Multilevel baking Short bread Hot Air Baking tray 25 - 45 2 and 4 Hot Air Baking tray 25 - 35 2 and 4 Small cakes, 20 per tray Fatless sponge cake Hot Air Wire shelf 45 - 55 2 and 4 Apple pie Hot Air Wire shelf...
- Page 18 Do not start the function if you did not fully 1. Make sure the appliance is cold. close the oven door. 2. Fully open the door. 3. Press the clamping levers on the two 1. Make sure the appliance is cold. door hinges.
- Page 19 11.6 Replacing the lamp 2. Use a narrow, blunt object (e.g. a teaspoon) to remove the glass cover. WARNING! Risk of electric shock. The lamp can be hot. 1. Turn off the appliance and wait until it is cold. 2. Disconnect the appliance from the mains. 3.
- Page 20 Problem description Cause and remedy The lamp is turned off. The lamp is burnt out. Replace the lamp. For details refer to "Care and Cleaning" chapter. Power cut always stops cleaning. Repeat cleaning if it's interrupted by power failure. Trouble with wireless network sig‐ Check if your mobile device is connected to the wireless network.
- Page 21 13.1 Product Information Sheet and Product Information according to EU Energy Labelling and Ecodesign Regulations Supplier's name NBE7P731AB 944035139 Model identification NBE7P731AT 944035138 TE7PB731AT 944035144 Energy Efficiency Index 61.2 Energy efficiency class Energy consumption with a standard load, conventional mode 1.09 kWh/cycle...
- Page 22 Cooking with fan warm. The residual heat indicator or When possible, use the cooking functions temperature appears on the display. with fan to save energy. Cooking with the lamp off Residual heat Turn off the lamp during cooking. Turn it on When the cooking duration is longer than 30 only when you need it.
- Page 24 867387027-A-502024...
