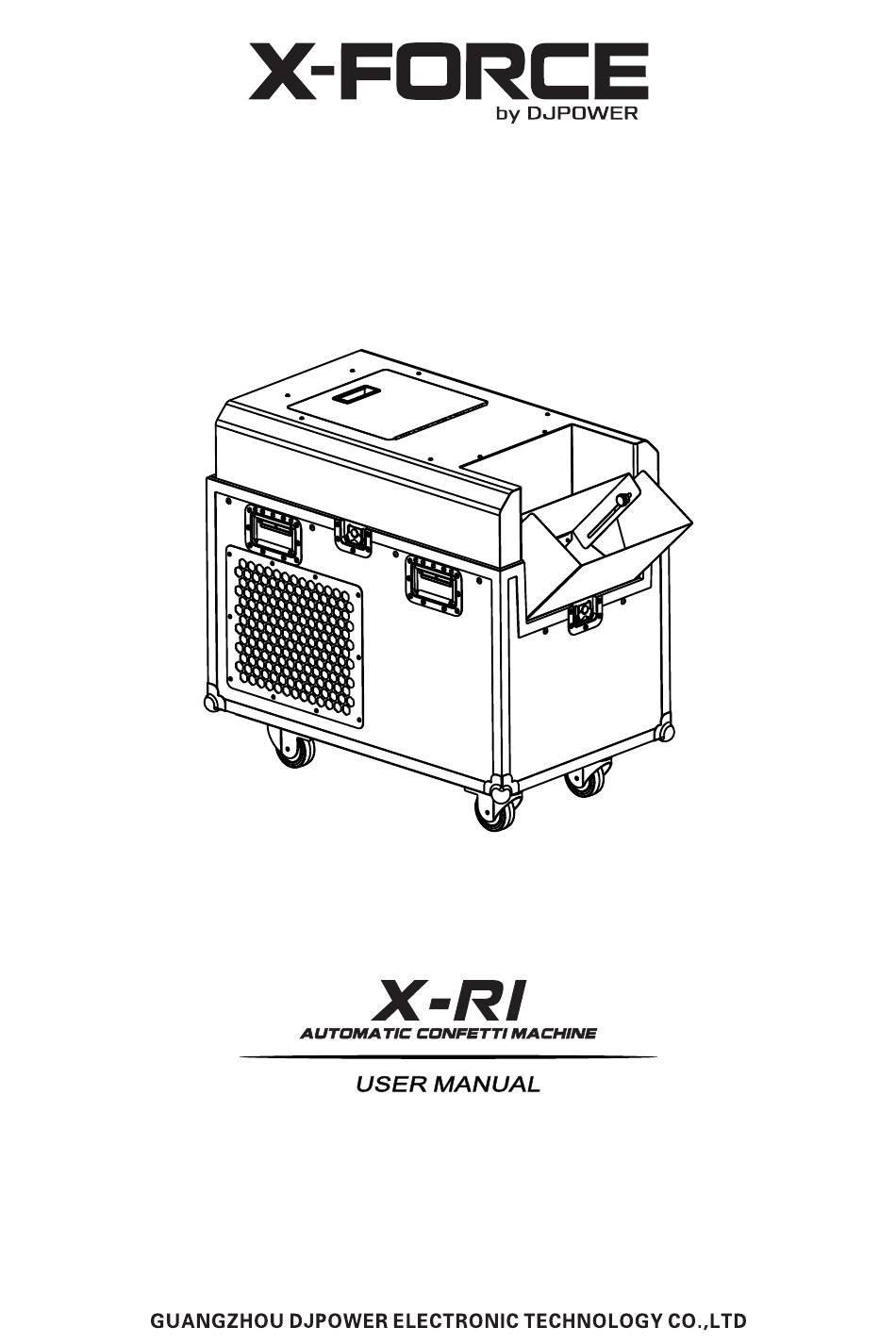

Summary of Contents for djpower X-FORCE X-RI
-
Page 2: Before You Begin
The information and specifications contained in this User Manual are subject to change without notice. DJPOWER assumes no responsibility or liability for any errors or omissions and reserves the right to revise or amend this manual at any time. If you find any errors or inaccuracies in this manual, we would appreciate it if you would let us know. -
Page 3: Mounting And Rigging
1.5.1 Personal Safety • Always connect the product to a grounded circuit to avoid the risk of electrocution. • The total load on a single line is strictly prohibited to exceed the rated capacity of the circuit breaker/fuse (separate power supply is recommended and parallel connection of multiple devices is prohibited). •... -
Page 4: Product Features
INTRODUCTION Description X-R1 is DJPOWER's newly designed DMX-controlled confetti machine by utilizing worldly unique “Paper Conveying” technology. Powered by a powerful airflow system, it can launch confetti into the air up to a height of 15 meters with extended airborne duration and wide dispersion coverage. The machine features an integrated flight case design, combining lightweight construction and high-capacity confetti loading for operational convenience. -
Page 5: Appearance Overview
• Integrated-designed with flight case, convenient for transport; • Large confetti capacity can hold 40L confetti, more convenient to use; • With DMX control to adjust confetti output; • Supports 220V power supply for greater convenience and efficiency. Note: The actual effect may be affected by the operational conditions. Appearance overview - 4 -... -
Page 6: Product Dimensions
Product Dimensions TECHNICAL SPECIFICATIONS Input Voltage & Rate AC 220-240 V, 50/60 Hz AC Power Current Limiter Specifications 8A/250V Total Power Consumption 1,100 W The Longest Lasting Time Appr. 150s Max Output Distance Appr. 15 meters Output Max Output Height Appr. -
Page 7: Dmx Connection
Operate the machine on a flat, level hard only and make sure there is adequate room for ventilation, configuration, and maintenance. 4.3.2 Rigging DJPOWER recommends following general guidelines for machine installation: • Make sure the installation location provides adequate working space for both routine maintenance and control operations. -
Page 8: Preparing For Operation
5.2.2 Menu Map Parameter Display Description Range Version 1.0 LCD display will show the program version and the Starting Page AC230V 50HZ operating voltage when power on Standby Ready to work Ready to work Page DJPOWER X-R1 - 7 -... -
Page 9: Dmx Mode & Operation
When DMX signal is disconnected, press the “▼” Working Working button or <ENTER> on the panel to start or stop Page DJPOWER X-R1 the output of the machine DMX Mode & Operation X-R1 can be operated using a DMX controller: •... -
Page 10: Manual Control Mode
Maintenance 1、For optimal use of the machine, be sure to clean it regularly and test it for proper operation. Test-run your DJPOWER® X-R1 on a monthly basis to achieve the best performance. Storage Store the machine in a dry and cool place.
