Giant CONTINUUM WIRELESS Manual

CONTINUUM W
CYCLE COMPUTER
1
2
3
4
* Adjust the arm, elbow and bracket with the angle you
5
need, and then fasten it.
A
16
13 G
15
8
12
14
11
9
Best direction
10
18
6
17
7

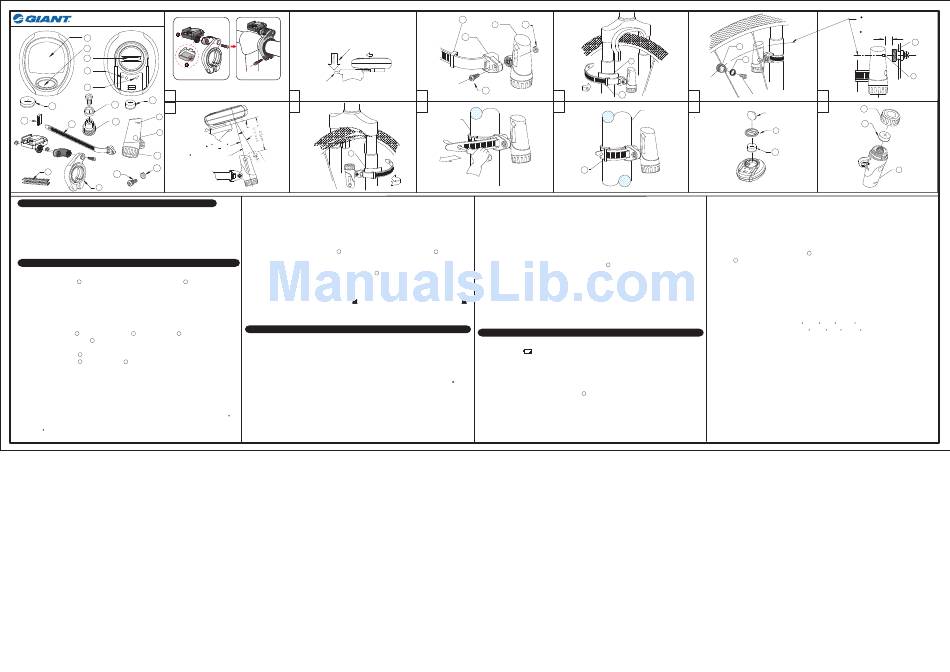

A. PHYSICAL DESCRIPTIONS
1. LCD DISPLAY 8. SENSOR ZONE 15. 3V BATTERY (CR2032)
2. MODE BUTTON 9. SENSOR (TRANSMITTER) 16. 1.5V BATTERY
3. MAIN BATTERY CAP 10. SENSOR BATTERY CAP (LR44 IS TYPICAL)
4. SET BUTTON 11. SENSOR BAND 17. SCREW
5. SLIDE ON/OFF SWITCH 12. BAND CARRIER 18. NUT
6. RUBBER PAD x 2 13. RING
7. BRACKET 14. MAGNET
B. INSTALLATION
INSTALL THE BRACKET AND MAIN UNIT
1. Attach the bracket 7 to the handlebar and fit the rubber pad 6 between the
handlebar and the band of the bracket. Tighten the screw securely until the
bracket is secure. (Fig. A)
2. Slide the main unit onto the bracket from front to rear until it clicks into position.
To remove the main unit, press down on the bracket locking lever then push the
main unit forward and off. (Fig. B)
INSTALL SENSOR AND MAGNET
1. Attach the sensor to the sensor band with the screw .
9
11 17
Mount the band carrier onto sensor band. (Fig. C)
12
2. Mount the sensor unit on the right front fork with rubber pad. (Fig. D)
3. Mount the magnet on one spoke of the front wheel, The magnet should face the
14
sensor's mark line . Place the ring around the magnet to enhance the
8
13
reliability of the set screw. (Fig. E)
4. Adjust the relative position between the main unit and the sensor, according to the
following key points:
a. Adjust the magnet fixed position until the center of the magnet is aligned with
the line marked on the sensor. (Fig. E)
b. Adjust the sensor to set the gap between the magnet and the line marked on the
sensor at about 5mm (0.2"). (Fig. F)
c. Adjust the angle of the sensor to aim in the direction of the main unit +/- 15 .
The best performance is acheived with the sensor arrow oriented perpendicular
(90 ) to the battery cap of the main unit. (Fig. G)
Press down on this lock lever
before removing the main unit.
Slide On
BRACKET
Lever
B
H
90
+
A < 15
6
English d. Install the sensor as close to the main unit as possible and no more than 45 cm
(1.5 feet) to improve wireless performance.
The computer will function with the sensor arrow pointed down (Fig. H), but by
pointing the arrow up the performance will be improved by reducing the
transmitting distance.
5. Refer to the TEST section to test the installation before tightening the sensor band
with a screwdriver. (Fig. I)
6. Secure the excess sensor band by inserting it into the band carrier
11
TEST
1. The main unit has a " On/Off Detecting Switch " (patents pending) to turn ON/OFF
5
the power of the wireless receiver. It can receive the wireless wheel signals only after
the main unit is installed onto the bracket.
2. Spin the front wheel to check if installation is correct. Correct installation is
confirmed if the main unit blinks the " " symbol. The installation is incorrect if " "
is not displayed. Please check the relative position of the main unit, the sensor and
the magnet, or refer to the trouble-shooting table.
C. WIRELESS SYSTEM PERFORMANCE
1. The sensor transmits the rotating wheel signal to the receiver in the main unit by
wireless transmission. To protect the receiver from interference from other wireless
noises - causing the main unit to display false data, install the transmitter
according to the following key points to improve performance.
a. The receiver is designed to receive a signal from only a certain direction and
angle to reduce the noise interference from other sources. Adjust the installation
angle of transmitter to aim in the direction of the main unit within a +/- 15 , The
best performance is with a vertical orientation.
b. The receiver will receive a stronger wireless signal if the transmitter is closer to
the receiver. A stronger sensing signal not only has better noise immunity, but
also increases the transmitter battery's operating life. For good wireless
performance, please install the transmitter as close to the main unit as possible
and within 45 cm (1.5 feet).
12
9 18
11
17
C D
I J
FORK
PULL
12
2. Precautions
a. This computer experiences almost no cross-talking interference when 2 bicycles
carrying the same or similar wireless cycle computers are ridden side by side, as
long as the cross-distance is over 40cm (15.8").
b. This computer has excellent noise immunity to some forms of electromagnetic
interference, but it may be effected by strong electromagnetic waves which will
cause the main unit to display erroneous data while it is near the source of strong
. (Fig. J) interference; such as TV transmission stations, radar stations, and some heavy
12
industrial machines.
3. This computer has a "On/Off Detecting Switch"
installed on the bracket.
a. To reduce the power consumption of the main unit and to increase the battery
operation life, but also to protect against all indoor electromagnetic interference
from electrical equipment (such as PC monitors, mobile-phones, etc.). It will turn
off the power supply of the receiver when the main unit is removed from the
bracket.
b. The main unit can only receive the wheel signals after it is installed onto the
bracket.
D. BATTERY CHANGE
1. MAIN UNIT BATTERY CHANGE
a. The symbol " " will appear to indicate the battery is nearly exhausted.
b. Replace the battery with a new battery within a few days after the symbol was
appeared.
c. All data will be cleared when battery is replaced, but this computer allows you to
re-key in ODO which you have ridden after replacing battery, record this data
before you remove the old battery.
d. Replace with a new CR2032 battery (Fig. K) and initiate the main unit.
15
14
13
6
E Shorter screw
12
K
FORK
COIN
3
15
2. CHANGING THE SENSOR (TRANSMITTER) BATTERY
a. The patent-pending transmitter circuit is designed to reduce power consumption;
a 1.5V battery (typically an LR44) can operate for over 24.000km (15.000miles)
riding distance or 2 years.
b. Replace a new battery when the transmitter's battery power is nearly exhausted,
otherwise the transmission power of the wheel signal will be weak, causing the
main unit to display unstable data.
c. Replace with a new LR44 battery
cap . (Fig. L)
10
5 to check that the main unit is
Sensor and Transmitter:
Suitable Fork Size:
Wireless Transmition Distance: 55cm (1.8 feet) between the transmitter and the main
Cross-Talking Interference:
Wheel Circumference Setting: 1mm - 3999mm (1mm increment)
Operation Temperature:
Storage Temperature:
Main Unit Battery Power:
Transmitter Battery Power:
Dimensions and Weight:
* The specifications and designs may be changed without notice.
Magnet center aligns to
the marking line.
Gap < 5mm (0.2")
14
8
F
L
10
16
9
with the positive (+) pole toward the sensor
16
No Contact Magnet sensor and Wireless Transmitter.
12mm to 50mmo (0.5" to 2.0"o) Forks.
unit.
Within 40 cm (15.8"), no interference by 2 bicycles
carrying similar cycle computers, even when ridden
side by side.
0 C ~ 50 C (32 F ~ 122 F)
- 10 C ~ 60 C (14 F ~ 140 F)
3V battery x 1 (CR2032), battery operating life is about
2 years. (Based on an average of 1.5 hours use per
day)
1.5V battery x 1 (typical LR44). About 24.000km/15.000
miles riding distance or 2 years battery operating life.
(The original factory-attached battery life may be
shorter than this period due to shipping and storage
time).
Main Unit: 44.0 x 54.5 x 19.73mm/30.8g
Transmitter: 20.0mmo x 48.0mm/13.3g
