RIDESENSE User Manual

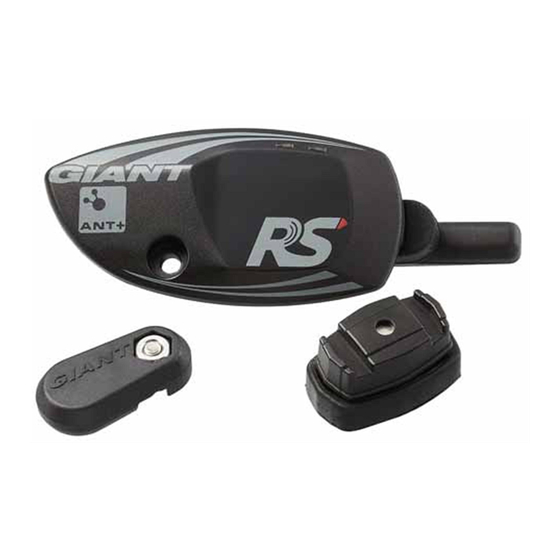

RIDESENSE overview:
The GIANT RIDESENSE employs ANT+ and Bluetooth® Smart (BLE 4.0) license
certification technology.
ANT+: ANT+ certification compliant meter.
Bluetooth® Smart (BLE 4.0): Bluetooth® Smart (BLE 4.0) compliant system App.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RIDESENSE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Giant RIDESENSE

Summary of Contents for Giant RIDESENSE

  • Page 1 RIDESENSE User Manual RIDESENSE overview: The GIANT RIDESENSE employs ANT+ and Bluetooth® Smart (BLE 4.0) license certification technology. ANT+: ANT+ certification compliant meter. Bluetooth® Smart (BLE 4.0): Bluetooth® Smart (BLE 4.0) compliant system App.
  • Page 2 Accessories included RIDESENSE x1: Hexagon socket head cap screw (SHCS) x1, (for 2.5mm hex wrench with the maximum locking torque of 0.4Nm); washer x1; CR2032 battery x1 Speed sensor magnet x1: round head SHCS x1 (for 3mm hex wrench with the maximum locking torque of 0.5Nm);...
  • Page 3 Note: Please check accessories included with your RIDESENSE product before installation. In case of any damage or shortage, call the dealer from whom you purchased your RIDESENSE product or GIANT immediately. For a RIDESENSE product that came with your new bike, remember to get the magnet set and seat stay plug from the dealer who sold you the bike.
  • Page 4 Android 4.3 or later; frequency App supported installation manual for list iOS 7 or later OS versions of compatible models. Support GIANT App only. Alarm App supported OS Android 4.3 or later; Please refer to individual versions iOS 7 or later alarm App setup guidelines.
  • Page 5 (Android) or App Enable handset alert RIDESENSE label with store (iOS). device function the GIANT App or enter Note: Please refer to the the barcode contained in GIANT App manual for the accessory label in the shooting and scanning App.
  • Page 6 Remove the bike included seat stay plug (not included with standalone RIDESENSE product), insert the RIDESENSE antenna in the seat stay tube, attach and fasten the RIDESENSE device to the seat stay with one SHCS using a 2.5mm hex wrench at maximum locking torque of 0.4Nm.
  • Page 7 PFSM may fail to be detected. Installation the speed sensor magnet (SSM): E&F Note: Keep the SSM and RIDESENSE 2~10mm away from each other. You may flip the SSM and install it to the back wheel spoke to ensure the proper gap...
  • Page 8 In case the SSM is too close to or interfering with the RIDESENSE, install them at location away from each other (ensure end of the device 2~3mm away from the edge of SSM). Otherwise, the SSM may hit the RIDESENSE and result in damage.
  • Page 9 Note: Check remaining power of your battery before riding your bike ride. Low battery may lead to RIDESENSE sensor error or pairing failure. Note: Wait 30 seconds for the RIDESENSE to reset after its battery was removed to ensure its successful operation after battery replacement.
  • Page 10 Be careful about your biking safety. Warranty statement 1. GIANT shall warrant your RIDESENSE for 2 years after its purchase date. During this warranty period the GIANT authorized dealer shall offer comprehensive after service for damages under normal operation according to the user manual and determined to be caused by poor product quality.
  • Page 11 DGT statement DO NOT change frequency, increase power, or modify designed features and functions of low power radio transmitter and receiver with type qualification without approval in advance. Use of low power radio transmitter and receiver should not interfere with aviation safety and legitimate communications. In case of any interference, stop using the device immediately and resume its use only after the interference has been eliminated.
  • Page 12 FCC Regulations:  This  device  complies  with  part  15  of  the  FCC  Rules.  Operation  is  subject  to  the  following  two  conditions:  (1)  This  device  may  not cause  harmful  interference,  and  (2) this  device  must  accept  any  interference received, including interference that may cause undesired operation.    Changes or modifications not expressly approved by the party responsible for compliance could void  the user‘s authority to operate the equipment.    ***********************************************************************************    This equipment has been tested and found to comply with the limits for a Class B digital device,  pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection ...
  • Page 13 IC Regulations:    This device complies with Industry Canada’s licence‐exempt RSSs. Operation is subject to the following  two conditions:  (1) This device may not cause interference; and  (2)  This  device  must  accept  any  interference,  including  interference  that  may  cause  undesired  operation of the device.    Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts  de licence. L'exploitation est autorisée aux deux conditions suivantes:    (1) l'appareil ne doit pas produire de brouillage, et    (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage  est susceptible d'en compromettre le fonctionnement."    ***********************************************************************************  CAN ICES‐3(B)/NMB‐3(B) ...
  • Page 14 Troubleshooting Please troubleshoot your product according to instructions given below. Please reset your RIDESENSE afterwards. If the problem persists, call the dealer from whom you have purchased your product or contact GIANT. Symptom Causes Troubleshooting 1. ANT+ device 1. Make sure there is no...
  • Page 15 RIDESENSE failure battery power left. 2. Enter power saving Move the peddling frequency and sleep mode magnet or speed magnet across the RIDESENSE to wake it up. 3. Device pairing Pair the devices. failed Lack of speed or 1. Poor magnet...
  • Page 16 time. This will prevent the sensor from being damage by the leaking of battery electrolyte.  ...
