Brighter SMART HYBRID 300 PRO User Manual

Hide thumbs

Advertisement

Table of Contents

This product manual contains important information about the safe installation and use of this projector. Please read
and follow these instructions carefully and keep this manual in a safe place for future reference.

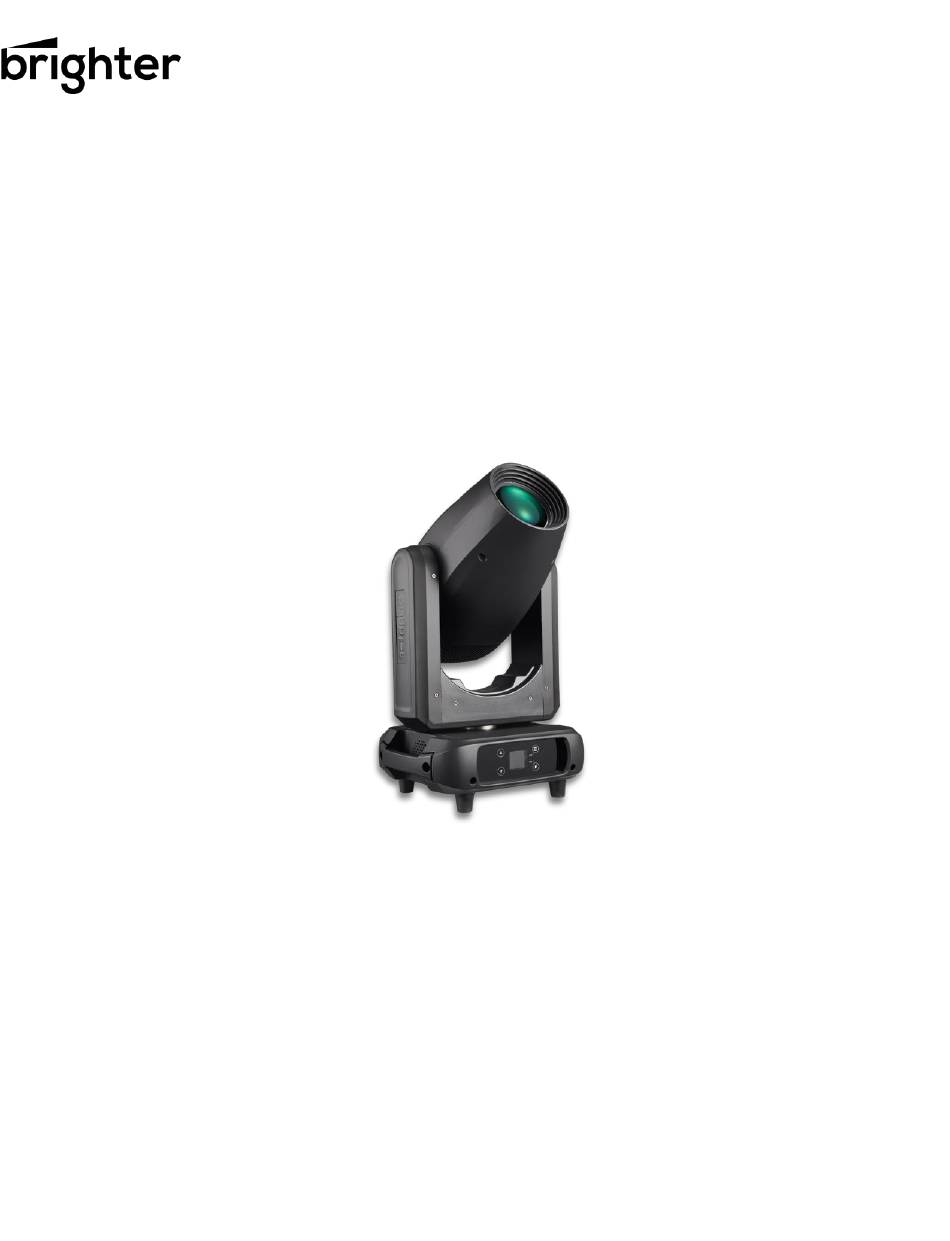

USER MANUAL
SMART HYBRID 300 PRO
USER MANUAL
Please read the instructions carefully before use!
Page 1 of 14
BRIGHTER LIGHTING SP. Z O.O.
ul. Warszawska 111
32-087 Bibice
POLAND
NIP: 9442248196
REGON: 361197164

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMART HYBRID 300 PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Brighter SMART HYBRID 300 PRO

Summary of Contents for Brighter SMART HYBRID 300 PRO

  • Page 1 BRIGHTER LIGHTING SP. Z O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 USER MANUAL SMART HYBRID 300 PRO USER MANUAL This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference.

  • Page 2: Safety Precautions

    BRIGHTER LIGHTING SP. Z O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 1. SAFETY PRECAUTIONS This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Manufacturer is not responsible for injuries and damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.

  • Page 3: Maintenance

    DO NOT OPERATE THIS PRODUCT IF YOU SEE DAMAGE ON THE HOUSING, SHIELDS, OR CABLES. HAVE THE ▪ DAMAGED PARTS REPLACED BY AN AUTHORIZED TECHNICIAN AT ONCE. IN CASE OF DOUBT CONTACT WITH BRIGHTER LIGHTING. ▪ 2. MAINTENANCE GUIDELINES DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE! 2.1.

  • Page 4: System Menu

    BRIGHTER LIGHTING SP. Z O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 • A detailed electric check by an approved electrical engineer every three months, to make sure the circuit contacts are in good condition and prevent overheating •...
  • Page 5 BRIGHTER LIGHTING SP. Z O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 Fan speed Silent Auto Full Pan Invert Tilt invert Scene time multiple 000-255 Reset Cancel Confirm Scene Scene Select 001-010 Scene Time 000-255 Control Mode 1.Pan...
  • Page 6 BRIGHTER LIGHTING SP. Z O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 Mode 3 Screen Rot Reverse Forward Auto DMX Indicate Mode 1 Mode 2 Mode 3 Signal Bright 001-010 Screen Light 001-010 Calibration Password Factory Setting...

  • Page 7: Dmx Chart

    BRIGHTER LIGHTING SP. Z O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 5.DMX CHART 22Ch Value Function Description 0-255 -270°- 270° 0-255 Pan Fine 16 bit adjustable 0-255 Tilt -135°- 135° 0-255 Tilt Fine 16 bit adjustable...
  • Page 8 BRIGHTER LIGHTING SP. Z O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 CH11 0-255 Yellow CH12 0-255 CH13 0-255 Static Gobo Open 10-19 Gobo 1 20-29 Gobo 2 30-39 Gobo 3 40-49 Gobo 4 50-59 Gobo 5...
  • Page 9 BRIGHTER LIGHTING SP. Z O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 110-119 Gobo 4 Shake 120-129 Gobo 3 Shake 130-139 Gobo 2 Shake 140-149 Gobo 1 Shake 150-199 Cw Rot Fast to slow Stop 201-255 CCW Rot Slow to fast...
  • Page 10 BRIGHTER LIGHTING SP. Z O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 Static Gobo Wheel in order: Rot Gobo Wheel in order: Page 10 of 14...

  • Page 11: Dynamic Effects

    BRIGHTER LIGHTING SP. Z O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 6.SPECIFICATIONS CONSTRUCTION/PHYSICAL Dimensions: 255x324x570mm Weight: 13,7 Kg Exterior Color: Black Housing material: Aluminium profile + high-quality plastic Ptotection rating: IP20 DYNAMIC EFFECTS Dimmer: Electronic Shutter/Strobe: Electronic...

  • Page 12: Dimensional Drawings

    BRIGHTER LIGHTING SP. Z O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 ELECTRICAL Power Supply Voltage: 100-240V 50/60Hz Maximum Power Consumption: 320W Light Source 300W LED ,8000K CRI: >70Ra OPTIC Zoom: 3°-30° Focus: Electronic 7.DIMENSIONAL DRAWINGS Page 12 of 14...
  • Page 13 BRIGHTER LIGHTING SP. Z O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 BRIGHTER LIGHTING SP. Z O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 The manufacturer reserves the right to make changes to technical parameters...
  • Page 14 BRIGHTER LIGHTING SP. Z O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 Page 14 of 14...
