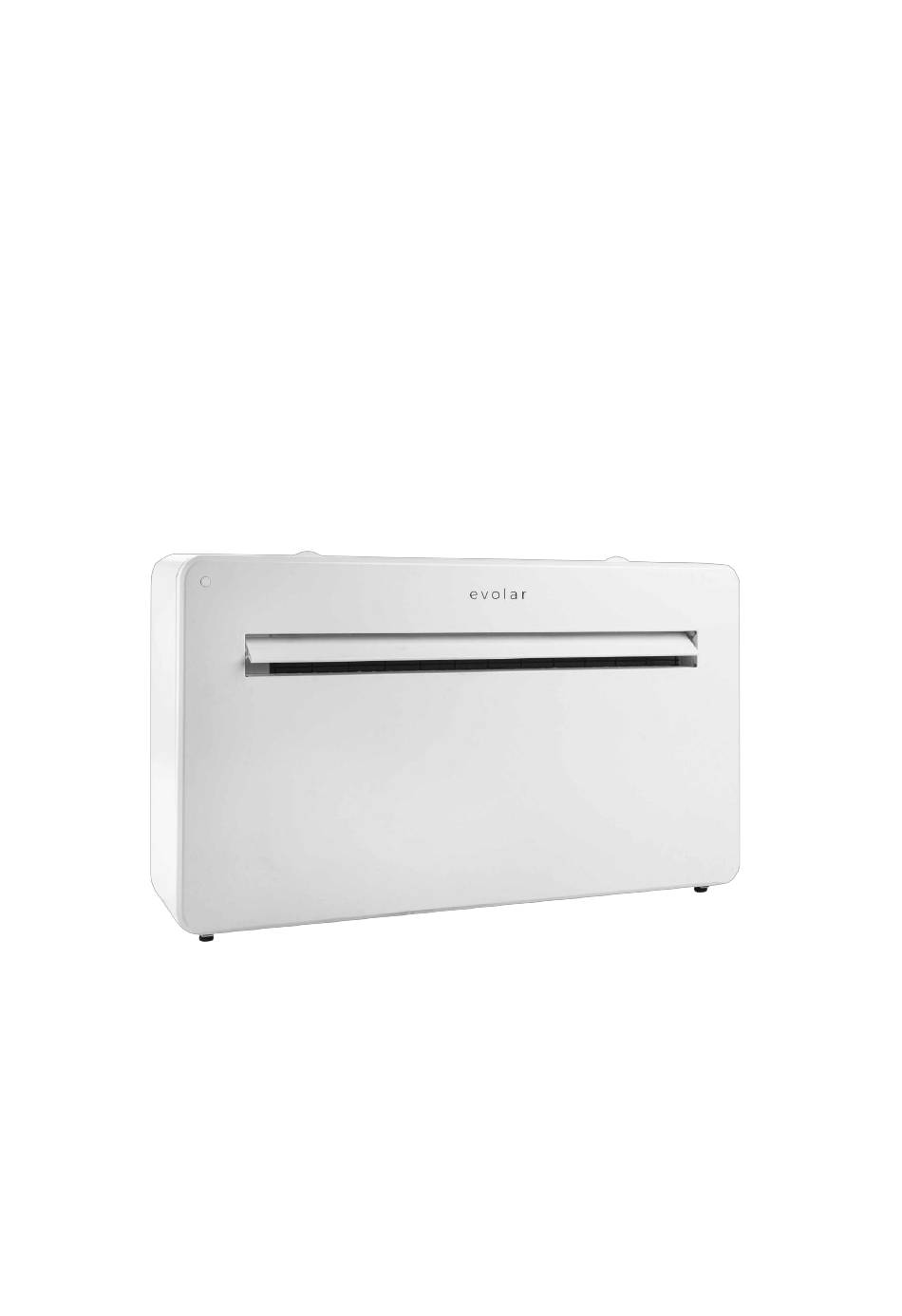

- Page 1 Evolar Inc. 4201 Main Street, Suite 200 - 223 Houston, Texas 77002 United States www.evolarshop.com https://b2b.evolarshop.com/ (B2B) TAX number: 81-5455331 Call us: +1 (713) 35 75 178 USER MANUAL EVO-M1000CH-US WALL MOUNTED AIR CONDITIONER WITH HEAT PUMP AND WIFI SMART APP...
-
Page 3: Table Of Contents
CONTENTS SAFETY AND INSTRUCTIONS PRODUCT OVERVIEW PRODUCT DIAGRAM FEATURES WHATS INCLUDED INSTALLATION TOOLS REQUIRED INSTALLATION OPERATION CONTROL PANEL REMOTE CONTROL FUNCTIONS WIFI SETUP AND SMART FEATURES SETUP REGISTER THE APP CONNECTING USING BLUETOOTH & WIFI TROUBLESHOOTING TROUBLESHOOTING ERROR CODES... -
Page 4: Safety And Instructions
Safety and Instructions READ ALL INSTRUCTIONS BEFORE USE. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always red and follow all safety messages. This symbol shows that this appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire. - Page 5 WARNING To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this product, follow basic precautions, including the following: INSTALLATION ●Before use, the appliance must be properly installed as described in this manual. ●Contact the authorized service technician for repair or maintenance of this unit.
-
Page 6: Grounding Instructions
●Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet. ●Do not grasp the power cord or touch the appliance controls with wet hands. ●The air conditioner is not intended for use by young children or invalids without supervision. ●Young children should be supervised to ensure that they do not play with the air conditioner. - Page 7 REFRIGERANT (FOR R32 ONLY) CAUTION ON FIRE READ THE MAUAL CAREFULLY BEFORE USING THE APPLIANCE R32 refrigerant gas complies with international environmental directives. This appliance contains approximately 19.40 Oz refrigerant gas. Warnings Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
- Page 8 Unventilated area ●That an unventilated area where the appliance using flammable refrigerants is installed shall be so constructed that should any refrigerant leak, it will not stagnate so as to create a fire or explosion hazard. ●The non‐fixed appliance shall be stored in an area where the size corresponds to the room area as specified for operation.
-
Page 9: Product Overview
PRODUCT OVERVIEW PRODUCT DIAGRAM FRONT AIR INLET CONTROL PANEL LOUVER FRONT PANEL BACK WALL HANGING MOUNTS BACK PANEL AIR INLET AIR OUTLET DRAINAGE PIPE... -
Page 10: Features
FEATURES ◆ Simple operation. ◆ Self‐evaporative function with energy saving technology. ◆ Sleek design that seamlessly fits into any style home. ◆ Bright LED screen‐indicates temperature and current mode. ◆ On / off timer function‐allows you to choose when the unit operates. ◆... - Page 11 INSTALLATION Paste the sealing strip in the accessories along the edge of the back for whole circle of the machine, cut off the excessive length if needed. Note：1.The sealing strip should be pasted along the edge of the machine, as shown in Figure1. 2.
-
Page 12: Installation
TOOLS REQUIRED SPIRIT LEVEL TAPE MEASURE PENCIL SHARP KNIFE 7,09 inch CORE DRILL 0,31 inch MASONRY DRILL BIT 0.98 inch MASONRY DRILL BIT BEFORE STARTING INSTALLATION, PLEASE ENSURE YOU HAVE ALL SUITABLE EQUIPMENT AVAILABLE AND UNDERSTAND THE STEPS INVOLVED IN INSTALLATION. IF IN ANY DOUBT, PROFESSIONAL ADVICE SHOULD BE SOUGHT. - Page 13 The hole for the drainage pipe must be drilled using a 0,98 inches Drill bit. Ensure the hole is at a downward angle (min 5 degrees) so that the water will drain correctly. Use a 7,10 inches core drill to drill the two holes for the units ventillation, ensuring that the holes are at a downward angle (min 5 degrees) and aligned with the template.
- Page 14 Insert the indoor fixing ring from the vent cover onto the indoor side of the air vent. Then fold the external vent cover in half. Attach the chains to each side of the vent cover, before sliding the cover outside through the vent hole.
- Page 15 NOTE: : please ensure that the backside of product is tightly attached on the wall to avoid additional vibration and noise. : The end of the external water pipe must be placed in an open space or drain. Avoid damage or constriction to the drainage pipe to ensure the unit drains.
-
Page 16: Operation
OPERATION CONTROL PANEL REMOTE CONTROL The air conditioner can be controlled with the remote control. Two AAA‐batteries are required. NOTE: Further details of the functions can be found on the following page. POWER Press the POWER button to turn the machine on or off. Press the MODE button to switch between cooling, heating, MODE fan and dry modes. -
Page 17: Inserting And Replacing Batteries
INSERTING AND REPLACING BATTERIES Your air conditioning unit comes with two AAA batteries. Put the batteries in the remote control before use. Remove the cover on the back of the remote control. Insert the new batteries and make sure that the (+) and (‐) terminals of the batteries are installed correctly. -
Page 18: Functions
● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not approved by the party responsible for compliance could void user’s authority to operate the equipment. -
Page 19: Wifi Setup And Smart Features
℉ Used within cooling and heating modes to adjust the desired temperature . Also used 60‐86 while setting the timer to adjust the duration. INCREASE AND DECREASE After machine turns on, press the “SWING” button, louver will swing continuously up and down; by SWING pressing the button again the movement will stop and the louver remain in that position. -
Page 20: Register The App
REGISTER THE APP If you don't have an App account , register an account or sign in with verification code by SMS. This page describes the registration process. Press on the “Sign Up” button at the bottom of the screen, as shown in the picture 1. The system automatically recognises your country/ area. - Page 21 Picture 4 Picture 5 Picture 6 and the device is successfully 4. Enter the device connection interface after the progress bar is finished connected, as shown in the picture 7,8,9. Picture 7 Picture 8 Picture 9...
- Page 22 If you don’t want to use Bluetooth connection, just need to Exit the Bluetooth connection prompt or turn off Bluetooth and follow the below steps to connect the unit with Wifi connection. 1. Click "Add Device" for operation, as shown in the picture 10. Select the type of device as “Large Home Appliance”, as shown in the picture 11.
-
Page 23: Troubleshooting
4. Ensure the WIFI light on the air conditioner is flashing twice per second, as shown in the picture 13. Enter the device connection interface after the progress bar is finished and the device is successfully connected. Click the "Done" button to enter the operation interface of the device, as shown in the picture 14,15 Picture 13 Picture 14... -
Page 24: Error Codes
There is direct sunlight. Use curtains to reduce heat from the sun. Doors or windows are open; there are a Close doors and windows; increase air lot of people; or in cooling mode, there conditioning power The cooling or heating are other sources of heat (e.g. - Page 25 Sociable Remark When using this product, the following information must be followed: DISPOSAL Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. It is prohibited to dispose of this appliance in domestic household waste. For disposal, there are several possibilities: A.
- Page 26 - UL 1995: Heating and Cooling Equipment - UL 60335-2-40: Household and similar electrical appliances – Safety - FTC EnergyGuide labeling with SEER/EER/CEER explanation - DOE guidelines on efficiency, operation, and maintenance - ANSI Z535.6 safety warning format Digital user manual is available at: https://www.evolarshop.com/evolar-evo-m1000ch-us-293kw-wall-mounted-ac-10000-btu...
- Page 27 3. Language and Presentation - Manual is in English. Spanish version available on request. - ANSI safety color and symbol formatting used for clarity. 4. Digital Availability - Available online at: https://www.evolarshop.com/evolar-evo-m1000ch-us-293kw-wall-mounted-ac-10000-btu - Consumers are encouraged to follow maintenance tips to conserve energy.
- Page 28 QR Code for Digital Manual Access Scan the QR code above to access the official Evolar EVO-M1000CH-US digital manual online. Visit: https://www.evolarshop.com/evolar-evo-m1000ch-us-293kw-wall-mounted-ac-10000-btu...
