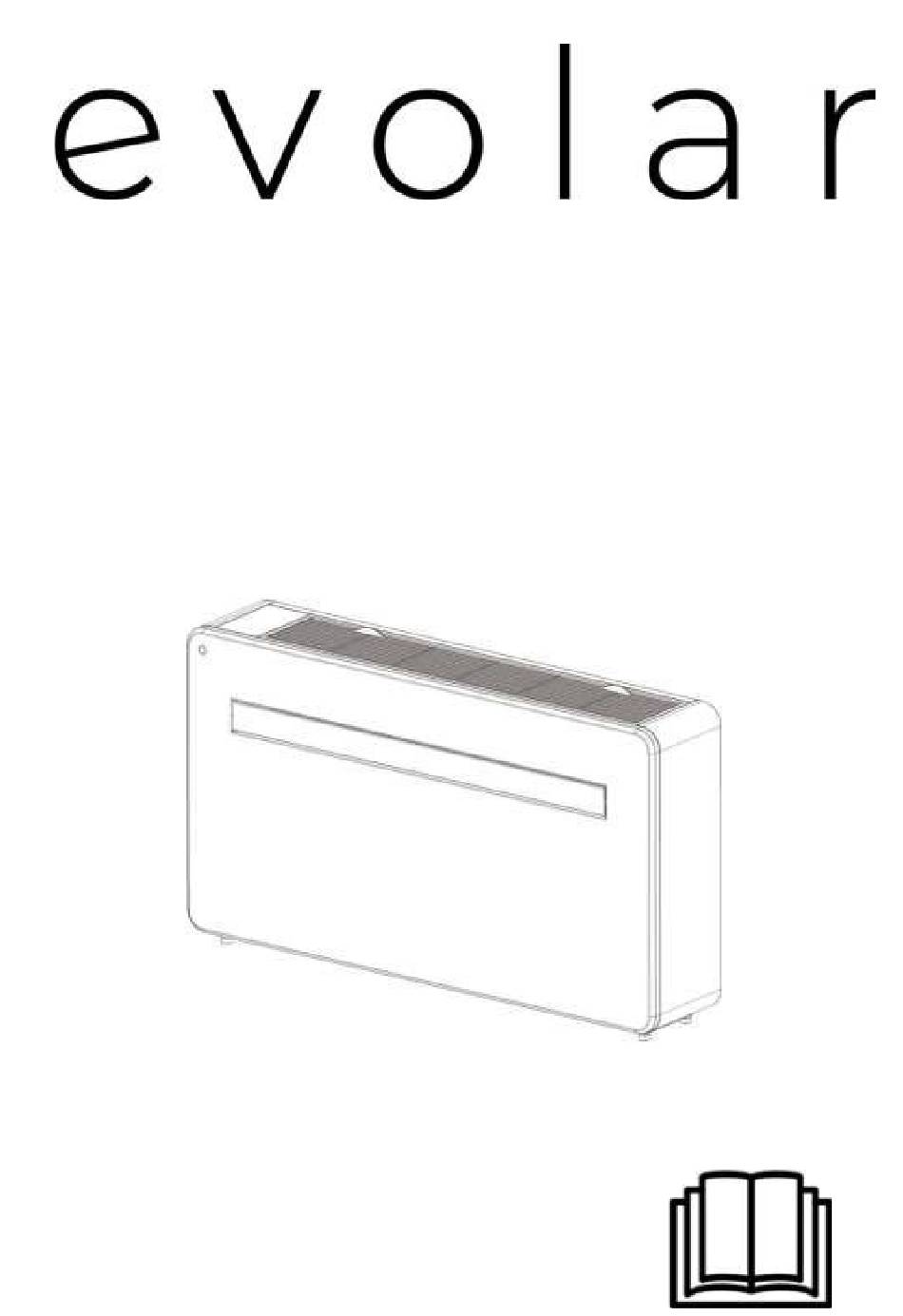

- Page 1 User manual EVO-M1000CH WALL MOUNTED AIR CONDITIONER WITH HEAT PUMP AND WIFI SMART APP SAFETY INSTRUCTIONS IMPORTANT! AIR CONDITIONERS MUST ALWAYS BE WORKED UPPER...
- Page 2 STORED AND TRANSPORTED, OTHERWISE MAY BE IRRESPORABLE DAMAGE IS CAUSED TO THE COMPRESSOR; IF IN DOUBT, WE SUGGEST TO WAIT AT LEAST 24 HOURS AFTER INSTALLATION, BEFORE START-UP THE UNIT. ⚫ Read the instructions carefully before installing and/or operating the device. ⚫...
- Page 3 ⚫ Never use this appliance if the cord or plug is damaged. Make sure the power cord is not stretched or exposed to sharp objects/edges. ⚫ A damaged power cord must be replaced by the manufacturer or a qualified electrician to avoid a hazard.
- Page 4 ⚫ Refrigerant gas can be odorless. ⚫ If any damage has occurred to the unit that may have compromised the cooling system, do not use the product and contact the retailer for advice. ⚫ Repairs or maintenance may only be carried out on the unit by a suitably qualified technician.
-
Page 5: Product Overview
PRODUCT OVERVIEW PRODUCT DIAGRAM FRONT... - Page 6 REAR...
- Page 7 FEATURES • Simple operation. • High and low installation options for added versatility. • Self-evaporation function with energy-saving technology. • Sleek design that fits seamlessly into any style home. • Clear LED screen indicates temperature and current mode. • On-off timer function - allows you to choose when the unit works. •...
-
Page 8: What Is Included
WHAT IS INCLUDED THE PLUG WALL BRACKET... -
Page 9: Tools Required
DIAGRAMS FOR ILLUSTRATIVE PURPOSES ONLY INSTALLATION TOOLS REQUIRED MASONRY DRILL 8 MM... -
Page 10: Installation
STONE DRILL 20 MM BEFORE COMMITTING INSTALLATION, MAKE SURE YOU HAVE ALL APPROPRIATE EQUIPMENT AVAILABLE AND UNDERSTAND THE STEPS OF INSTALLATION. IF IN DOUBT, PROFESSIONAL ADVICE CAN BE ASKED. THE INSTALLER MUST ENSURE THAT THE PLANNED POSITION OF THE AIR CONDITIONER IS APPROPRIATE AND THAT THERE ARE NO CABLES, PIPELINES OR OTHER OBSTRUCTIONS THAT MAY CREATE A HAZARD AND/OR REDUCE THE COMPLETION OF THE INSTALLATION. - Page 11 The hole for the drain pipe must be drilled with a 20 mm drill. Make sure the hole is at a downward angle (minus 5 degrees) so that water can drain properly. Use a 180mm core drill to drill the two holes for the ventilation units, making sure both holes are aligned with the template.
- Page 12 Go outside and cut off the excess vent tube with a sharp knife, keeping the edge as neat as possible. 、 Place the internal mounting ring from the ventilation flap on the inside of the air shaft. Then fold the external vent cover half.
- Page 13 Once the chains have been installed and secured, any excess chain should be removed by cutting the chain. Lift the unit up to the wall, align the hanging holes with the hooks on the hanging rail and gently rest the unit in place. At the same time, slide the drain pipe through the drain opening.
- Page 14 Operation Control panel...
-
Page 15: Emote Control
EMOTE CONTROL The air conditioner can be operated with the remote control. This runs on two AAA batteries. NOTE: More information about the features can be found on the next page. POWER Press the POWER button to turn the (“ON/OFF”) machine on or off. - Page 16 FEATURES Press the ON/OFF button to turn the unit on or off. ON/OFF Press this button to switch between the 4 different modes. The display shows the icon of the currently selected mode. The Cooling mode is set to 22 °C by default; the air is cooled and the warm air is blown outside.
- Page 17 DELAYED START TIMER: With a unit in standby mode, press the Timer button; the “0” flashes 5 times in the display. After the 5th flash, use the More / Less buttons to adjust the duration in hourly increments from 1 to 24 hours.
- Page 18 WIFI SETUP AND SMART FUNCTIONS SET UP WIFI BEFORE YOU START ⚫ Check whether your router provides a standard 2.4GHz connection. ⚫ If you have a dual-band router, make sure that both networks have different network names (SSIDs). Your router manufacturer or your Internet service provider can advise you on your specific router.
-
Page 19: Register The App
Fan speed and hold for 3 seconds (until you hear a beep) to enter Wi-Fi connection mode. Check that your device is in the correct Wi-Fi connection mode for the intended connection type; this is indicated by the flashing of the WiFi light on the air conditioner. Connection type Flashing frequency Quick Connection... - Page 20 shipped according to the want to use. This should be You will be automatically method you selected in step 3. 6-20 characters long and logged in during registration. Enter the code in the app. contain both letters and numbers. INSTALLING YOUR HOME IN THE APP SMART LIFE is set up to work with a wide range of compatible smart devices in your home.
- Page 21 CREATING ROOMS Enter a name for your home. 1. Press the ADD PROPERTY button. Press the Location button to select the location of your home. (See SETTING YOUR LOCATION below.) You can find new rooms by pressing ADD OTHER ROOMS at the bottom of the screen.
- Page 22 make sure that your phone is connected to the Wi-Fi network. (We recommend turning off mobile data during setup.) Open the app and press “+” or 2. Select “Air Conditioner” as the Check if the WiFi light on the the Add device button to add a device type.
-
Page 23: Connecting Using Ap Mode (Alternative Method)
CONNECTING USING AP MODE (ALTERNATIVE METHOD) Before setting up the connection, make sure the unit is in standby mode, with the Wi-Fi light flashing once per second. If not, follow the instructions for switching the Wi-Fi connection mode. Also make sure that your phone is connected to the Wi-Fi network. (We recommend that you turn off mobile data during setup.) Open the app and press “+”... - Page 24 The settings are now transferred to the air conditioner. Once the connection process is complete, go back to the network settings on your phone to check if your phone has reconnected to your Wi-Fi router. OPERATE THE DEVICE WITH THE APP THE HOME SCREEN Each device has its own entry on the home screen, allowing the user to quickly turn the unit on or off or open the device screen to make changes.
-
Page 25: Device Screen
DEVICE SCREEN Air conditioner name: ON-OFF BUTTON: Press to display the device screen to quickly turn the unit on or off. to open. DEVICE SCREEN The device screen is the main control screen of the air conditioner and provides access to the controls for changing functions and settings. - Page 26 *Due to continuous development of the app, the layout and available functions may have changed. SMART SCENES Smart scenes is a powerful tool that allows you to adjust the operation of the air conditioner based on both room conditions and external influences. This way you can specify particularly smart actions.
- Page 27 Press the pencil icon 5. Choose the function, set the next to “Enter Scene Name” to value for the function, and enter the name of your Scene. then press the Back button in the upper right corner to Show on Dashboard: Leave this return to the previous enabled if you want to show the screen.
- Page 28 4. The installation is very similar to 5. Select the condition under which the automatic action should start. You that of a Scene on the previous can combine a number of starters. page, but includes an additional section for specifying a starter that will run the Scene.
-
Page 29: Troubleshooting
Here you can share access to your air conditioner controls with family or friends. INTEGRATION Here you can integrate the unit with your favorite home automation hardware, such as Google Home or Amazon Echo. TROUBLESHOOTING Do not attempt to repair or disassemble the air conditioner. Improper repairs will void your warranty and may result in malfunctions, injuries and property damage. -
Page 30: Error Codes
The cooling or heating Doors or windows are open; there are a Close doors and windows; increases the effect is weak. lot of people in the room; in Cooling power of the air conditioner. mode: there are other heat sources (e.g. refrigerators). -
Page 31: Technical Data
Location detection loop error Exhaust temperature protection Phase current overvoltage protection Overload protection spiral tube (outside) Undervoltage protection DC bus voltage Wrong feedback DC fan (inside) Communication error (inside and outside) Overload protection spiral tube (inside) PCB communication error Defrost protection on spiral tube (inside) Voltage protection alternating current Sensor error on spiral tube (inside) input... - Page 32 Cooling/heating amperage 5,0 A 5,0 A Air flow 500 m 500 m EER relationship Compressor Rotary, 290g, R290 gas Rotary, 290g, R290 gas Sound power level 58 dB(A) 58 dB(A) Thermostat 16 – 30 °C 16 – 30 °C Moisture extraction 19.2 l/day 24 l/day Permissible maximum operating pressure...
