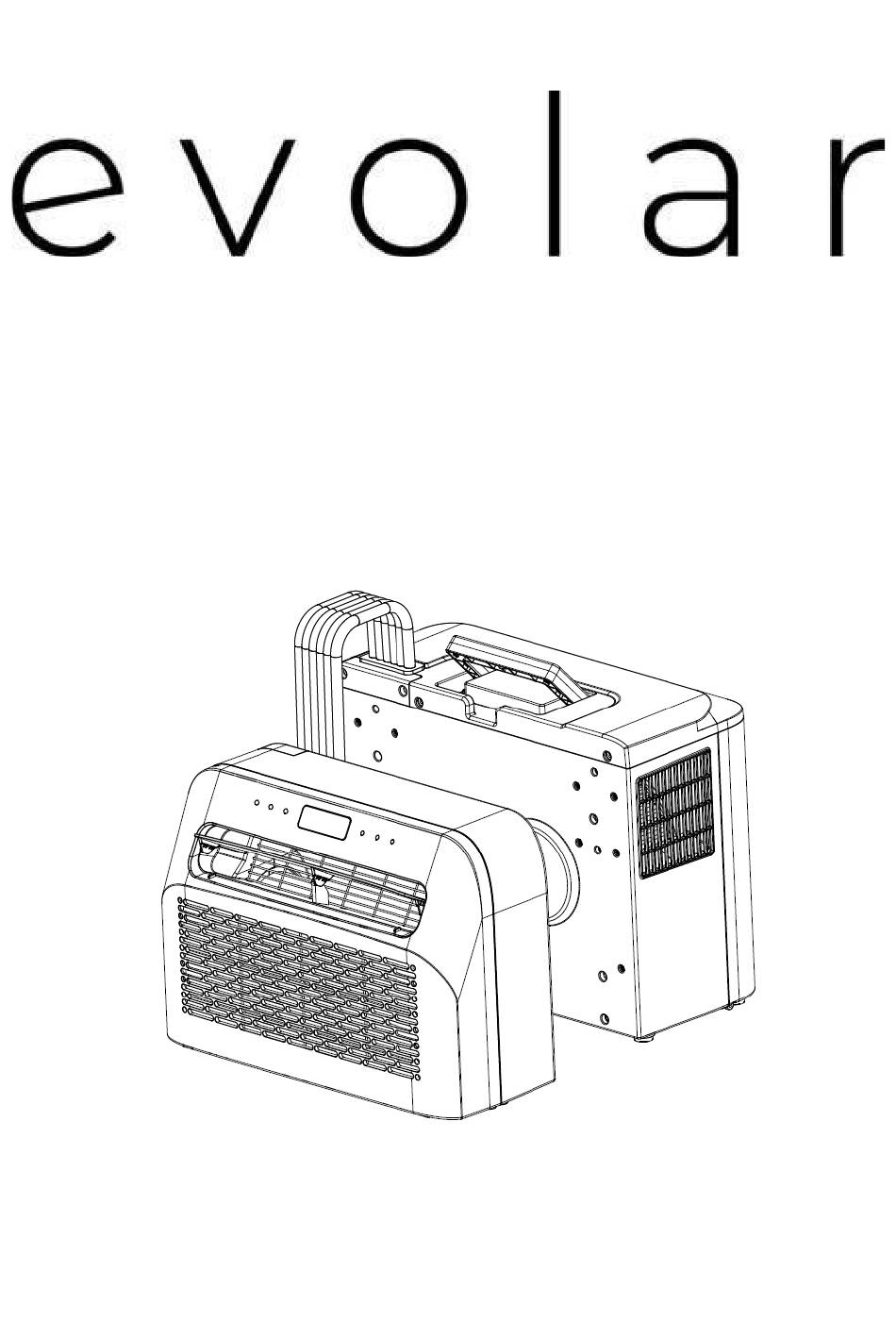

- Page 1 USER MANUAL Portable Split Air Conditioning...
-
Page 2: Table Of Contents
Content 1. SAFETY INSTRUCTIONS ....................6 2. TECHNICAL DATA ......................7 3. PACKING LIST ......................7 4. DESIGNATION OF PARTS ..................... 8 5. OPERATION OF CONTROL PANEL ................9 6. INSTALLATION OF THE AIR CONDITIONER ..............11 7. ERROR CODE LIST ..................... 12 8. -
Page 3: Safety Instructions
Safety and Instructions READ ALL INSTRUCTIONS BEFORE USE. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always red and follow all safety messages. This symbol shows that this appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire. -
Page 4: Installation
WARNING To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this product, follow basic precautions, including the following: INSTALLATION ●Before use, the appliance must be properly installed as described in this manual. ●Contact the authorized service technician for repair or maintenance of this unit. -
Page 5: Grounding Instructions
●Do not use an adaptor or plug the product into a shared outlet. ●Do not tamper with controls. ●If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance, unplug it immediately, and contact dealer. ●Never unplug the appliance by pulling on the power cord. - Page 6 REFRIGERANT (FOR R32 ONLY) CAUTION ON FIRE READ THE MAUAL CAREFULLY BEFORE USING THE APPLIANCE R32 refrigerant gas complies with international environmental directives. This appliance contains approximately 7.41 OZ refrigerant gas. Warnings Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
- Page 7 When using the product, the room should keep any required ventilation openings clear of obstruction. Notice that servicing shall be performed only as recommended by the manufacturer. Unventilated area ●That an unventilated area where the appliance using flammable refrigerants is installed shall be so constructed that should any refrigerant leak, it will not stagnate so as to create a fire or explosion hazard.
-
Page 8: Technical Data
1. TECHNICAL DATA Voltage 115V,60Hz Air flow capacity 82-118CFM Cooling capacity 6500btu/h Dehumidification capacity 0.5L/h Power 650W Isolation Class (for outside part) IPX4 Refrigerant R32 7.41 oz Compressor type Rotor type Dimensions inside unit 17.3×7.09×12.4inches Sound pressure level (for indoor part) 46dB Dimensions outside unit 17.3×7.46×13.95inches Net weight 9.3lbs... -
Page 9: Designation Of Parts
3. DESIGNATION OF PARTS Accessories:... -
Page 10: Operation Of Control Panel
4. OPERATION OF CONTROL PANEL ① Power Press this key to turn the device on and off. When the air conditioner is switched on, the temperature is set to 72 °F(22℃) by default. The temperature sensor measures the ambient temperature and if exceeds 71.6 °F(22℃), the outdoor unit starts to work to bring the temperature down. -
Page 11: Installation Of The Air Conditioner
5. INSTALLATION OF THE AIR CONDITIONER 1. Unpack the machine and accessories and check that the hose between the indoor and outdoor unit is properly connected. Also check whether the condensation drain has a rubber cover. Finally, check whether the accessories are complete. 2.1 Install the accessories as shown in the picture. - Page 12 2.4 Install the indoor unit on the bracket and tighten the bracket properly.Next, wrap the protection sleeve on the hose between the outdoor and indoor unit.(See the illustration below ) 2.5 Install the complete unit in the caravan window and tighten the bracket properly.
-
Page 13: Error Code List
6. ERROR CODE LIST If the device does not work or works insufficiently: Check if an error code is visible in the display, refer to the code table for a solution. If no error code is visible in the display, go through the error table for a possible solution. Error codes Error code Cause... -
Page 14: Maintenance
The mounting brackets are Check that the mounting bracket is not properly installed on the tight and tighten the device Abnormal sounds or vibrations vehicle, or the device mounting screws mounting screws are not sufficiently tightened The rubber stopper on the bottom of the indoor unit Check or replace the rubber stopper is missing, or is not pressed... - Page 15 2. Clean the Air-conditioner Surface； ▪ First clean the surface with a neutral detergent and wet cloth; ▪ Then dry the device thoroughly with a dry cloth. ▪ Do not allow water or deterrent to enter the machine. ▪ Do not clean the air conditioner with an aggressive cleaning agent and/or petrol. Storage If you are planning to store the machine without needing to use it for a long time, please remove the drain cover from the drainage hole at the bottoms both of indoor unit and outdoor unit, and...
-
Page 16: Smart Home Wifi Connection Guide
SMART HOME WIFI CONNECTION GUIDE Install App Download the "Smart life" app from the Play Store (Android) or App Store (iOS). Scan QR code Register If you do not have a Smarter Home account, register or sign in with a verification code sent by SMS. - Page 17 Add Device Through Network 1. Power conditioner on, when conditioner under standby mode, press the “FAN”button for 3 seconds to enter Wifi-connect mode. 2. Open Smart Home app and tap "+" in the upper right to add a new device through the network.
- Page 18 Sociable Remark When using this product, the following information must be followed: DISPOSAL Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. It is prohibited to dispose of this appliance in domestic household waste. For disposal, there are several possibilities: A.
